Solo Guitar Installation Guide Installation
MAN-SOLGUIIG (Ver. 1.403)
www.elmomc.com
51
3.10. Powering Up
After the Solo Guitar is connected to its device, it is ready to be powered up.
Caution: Before applying power, ensure that the DC supply is within the
specified range and that the proper plus-minus connections are in order.
3.11. Initializing the System
After the Solo Guitar has been connected and mounted, the system must be set up and
initialized. This is accomplished using the Composer, Elmo’s Windows-based software
application. Install the application and then perform setup and initialization according to the
directions in the Composer Software Manual.

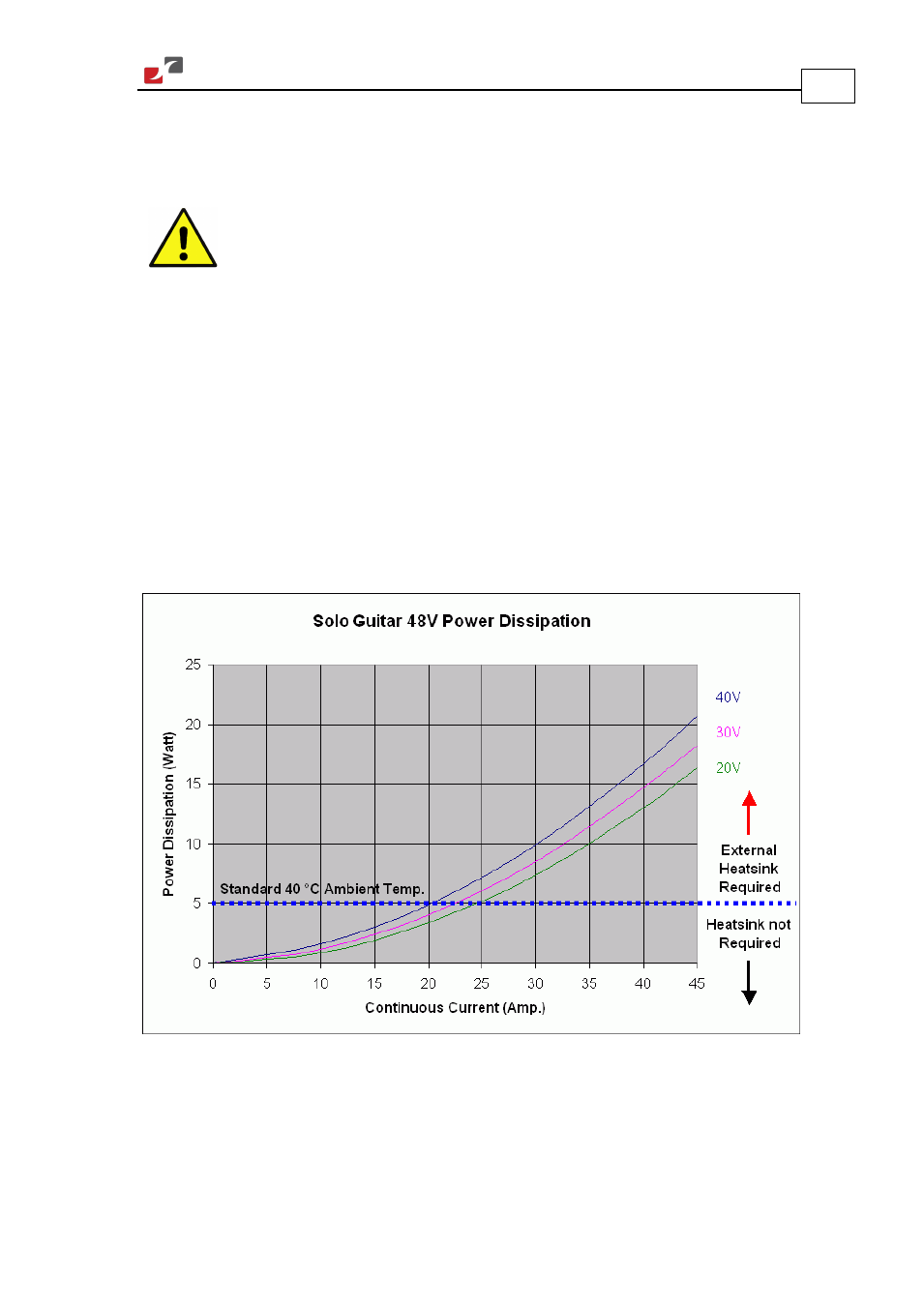

3.12. Heat Dissipation
The best way to dissipate heat from the Solo Guitar is to mount it so that its heatsink faces up.
For best results leave approximately 10 mm of space between the Solo Guitar’s heatsink and
any other assembly.
The Heat Dissipation data is shown graphically below:
