Solo Guitar Installation Guide Installation
MAN-SOLGUIIG (Ver. 1.403)
www.elmomc.com
19

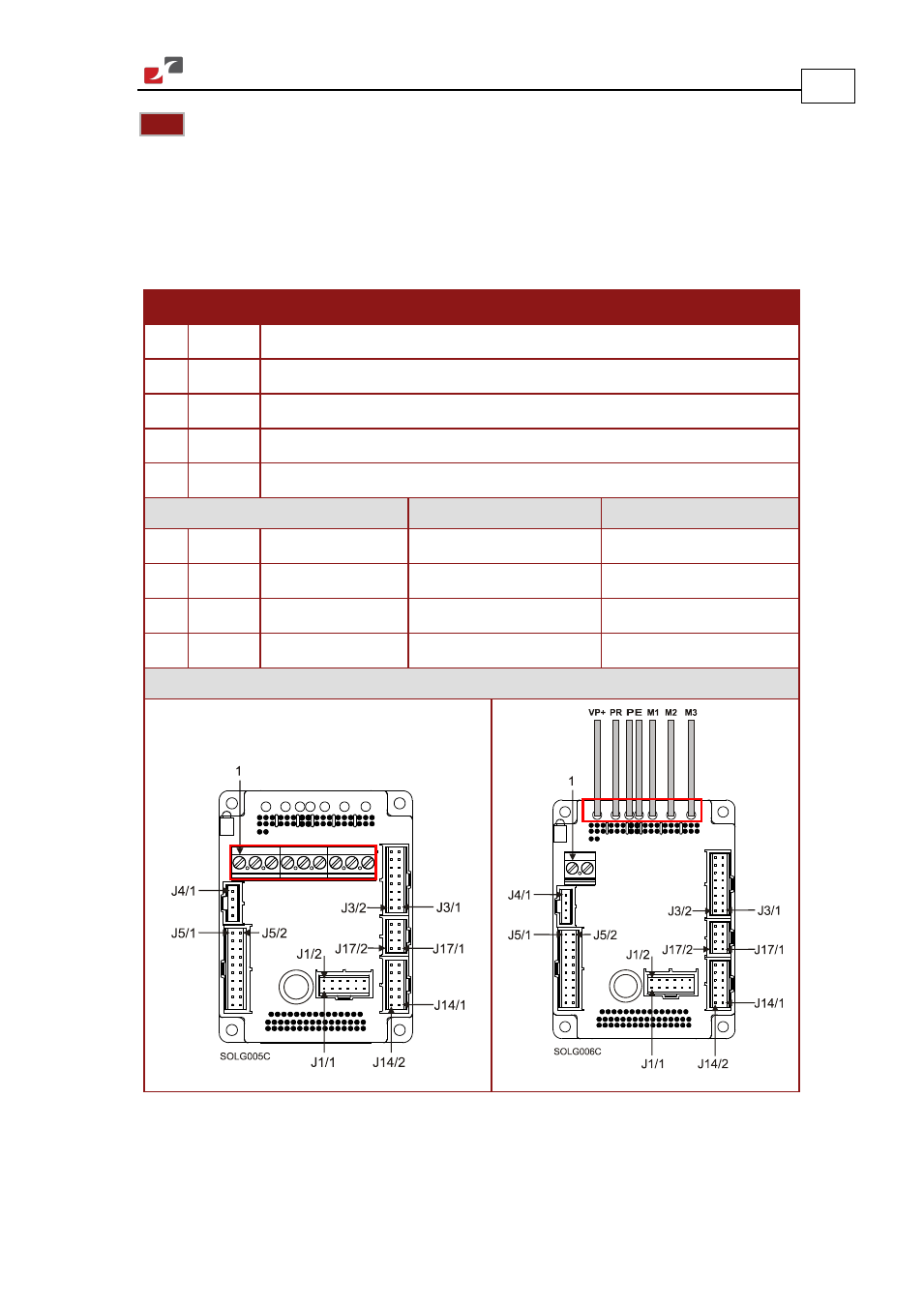

Note: Throughout this chapter there are pairs of diagrams of the Solo Guitar. The diagram on
the left is the Solo Guitar with connectors and the diagram on the right shows the product with
wires.
3.4. Main Power and Motor Power
The Solo Guitar receives power from main and auxiliary supplies and delivers power to the
motor.
Pin Signal Function
1 VL+ Auxiliary supply input
2 PR Auxiliary supply input return
3 VP+ Pos. power input
4 PR Power return
5 PE Protective earth
AC Motor DC Motor
6 PE Protective earth Motor Motor
7 M1 Motor phase Motor N/C
8 M2 Motor phase Motor Motor
9 M3 Motor phase Motor Motor
Pin Positions
Table 2: Connector for Main Power and Motor Power
