3.3. Pinouts
The Solo Guitar has seven connectors (in the connectors version).
3.3.1. Connector Types for the Solo Guitar
No.
Pins Type Port Function
9 5.08 mm Pitch (Figure 3) Power + Motor Power
2
(+seven
wires)
5.08 mm Pitch (Figure 4)
14 AWG (M1, M2, M3, VP+, PR)
16 AWG (PE)
Wires
Power + Motor Power
4 2.54 mm Pitch J4 Motor (Brake, PTC)
20 2.54 mm Pitch J5 I/O
12 2.54 mm Pitch J1 Communication
12 2.54 mm Pitch J14 Main Feedback
8 2.54 mm Pitch J17 Main Feedback Buffered
Output
16 2.54 mm Pitch J3 Auxiliary Feedback

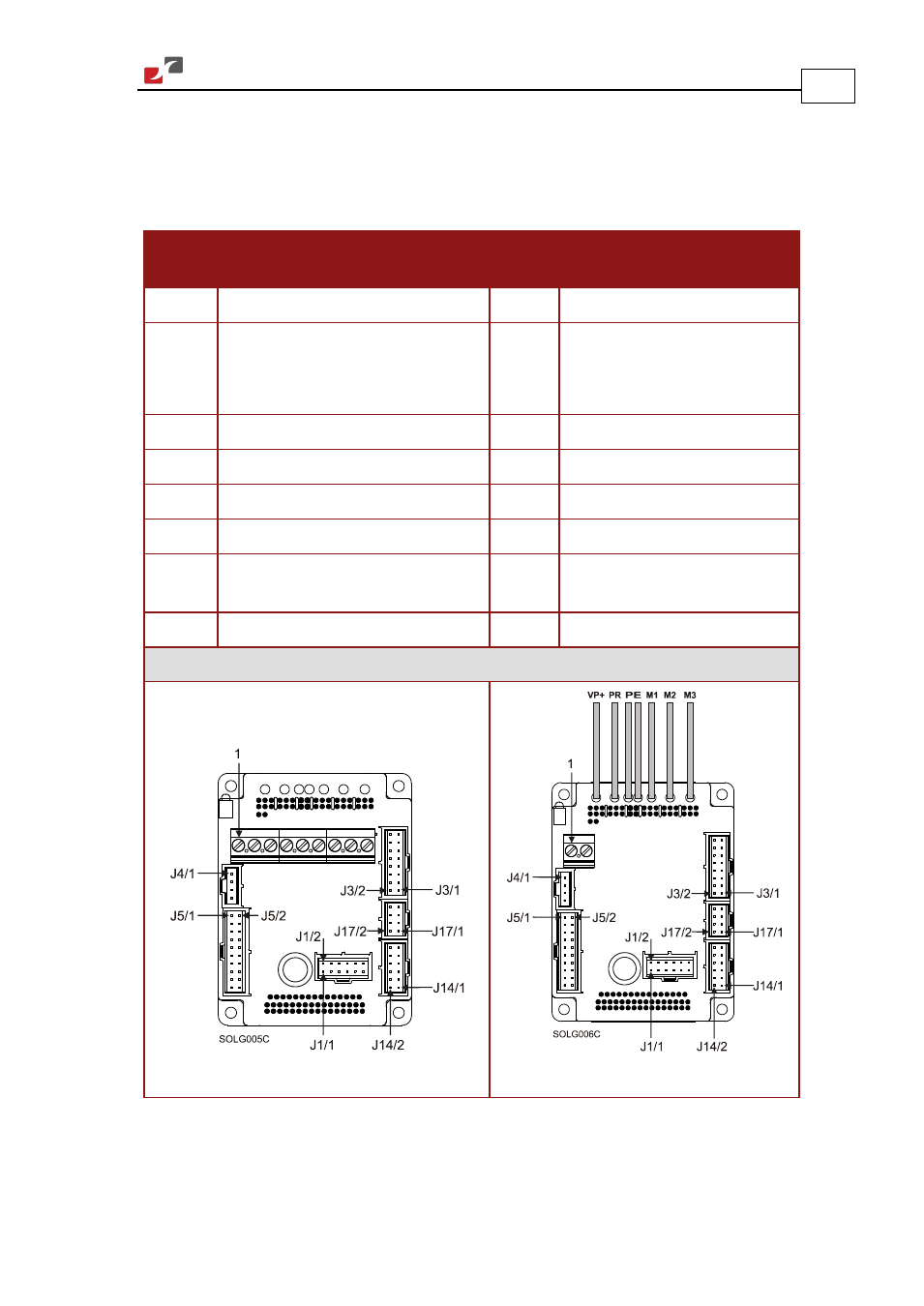

Connector Locations
Figure 3 Figure 4
Table 1: Connector Types for the Solo Guitar
