Solo Guitar & Solo Guitar Absolute Feedback Cable Kits Main Feedback Cable
MAN-CBLKIT-SOLGUI (Ver. 1.0)
3-2
3.2 Solo Guitar Absolute Feedback Main Feedback
Cable (CBL-HDRAUX-001)
The absolute feedback cable is a 24-AWG eight twisted-pair shielded cable. It is connected
using a 16-pin C-Grid III (Molex) plug.
Pin No. Color Description
1 Brown See installation guide
2 White See installation guide
3 Cyan See installation guide
4 Orange See installation guide
5 Purple See installation guide
6 Black See installation guide
7 Red See installation guide
8 Blue See installation guide
9 Pink See installation guide
10 Grey See installation guide
11 Yellow See installation guide
12 Green See installation guide
13 White-Red See installation guide
14 White-Black See installation guide
15 White-Green See installation guide
16 White-Yellow See installation guide

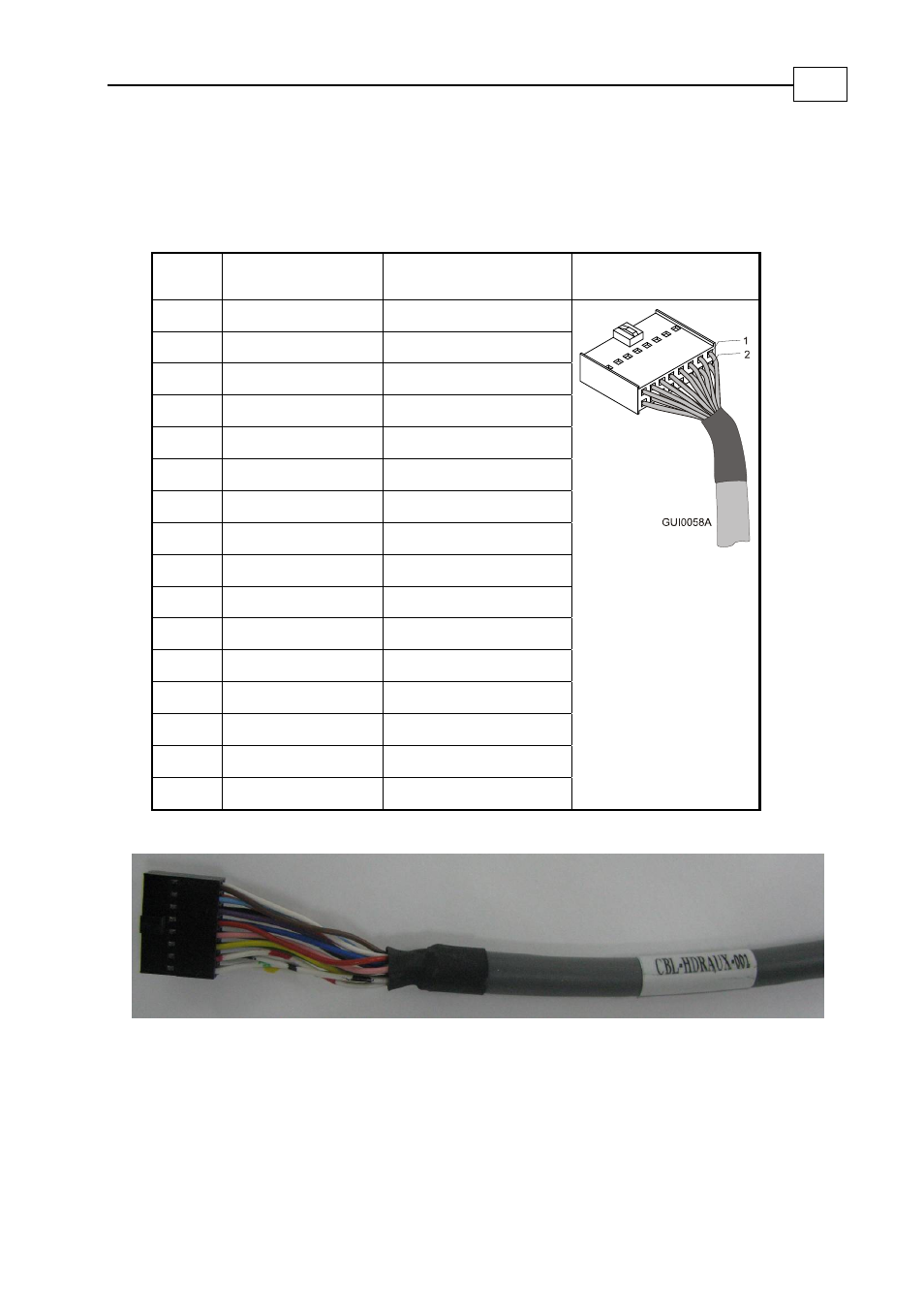

Table 3-2: Main Feedback Cable for the Solo Guitar Absolute Feedback Drive
Figure 2: Main Feedback Cable (Part No. CBL-HDRAUX-001)
