Solo Guitar & Solo Guitar Absolute Feedback Cable Kits
MAN-CBLKIT-SOLGUI (Ver. 1.0)
1. Introduction
This document provides the wiring details for the cables used to connect Elmo SOLO-
GUITAR and SOLO-GUITAR ABSOLUTE FEEDBACK digital servo drives with the end-
user application. The servo drive-side pinouts are provided in Chapter 3 of the drive’s
installation guide.
The cables come in one length: 2 meters (6 ½ feet).
1.1 Solo Guitar Connectors
The table below presents the connector panel of the Solo Guitar drive and specifies the
cable connectors.
Pins Type Connector Manufacturer and Part Number Port
9 5.08 mm Pitch/14-16AWG Wires Wires Power
connector
4 2.54 mm Pitch Molex 90156-0144 J4
20 2.54 mm Pitch Molex 90142-0020 J5
12 2.54 mm Pitch Molex 90142-0012 J1
12 2.54 mm Pitch Molex 90142-0012 J14
8 2.54 mm Pitch Molex 90142-0008 J17
16 2.54 mm Pitch Molex 90142-0016 J3

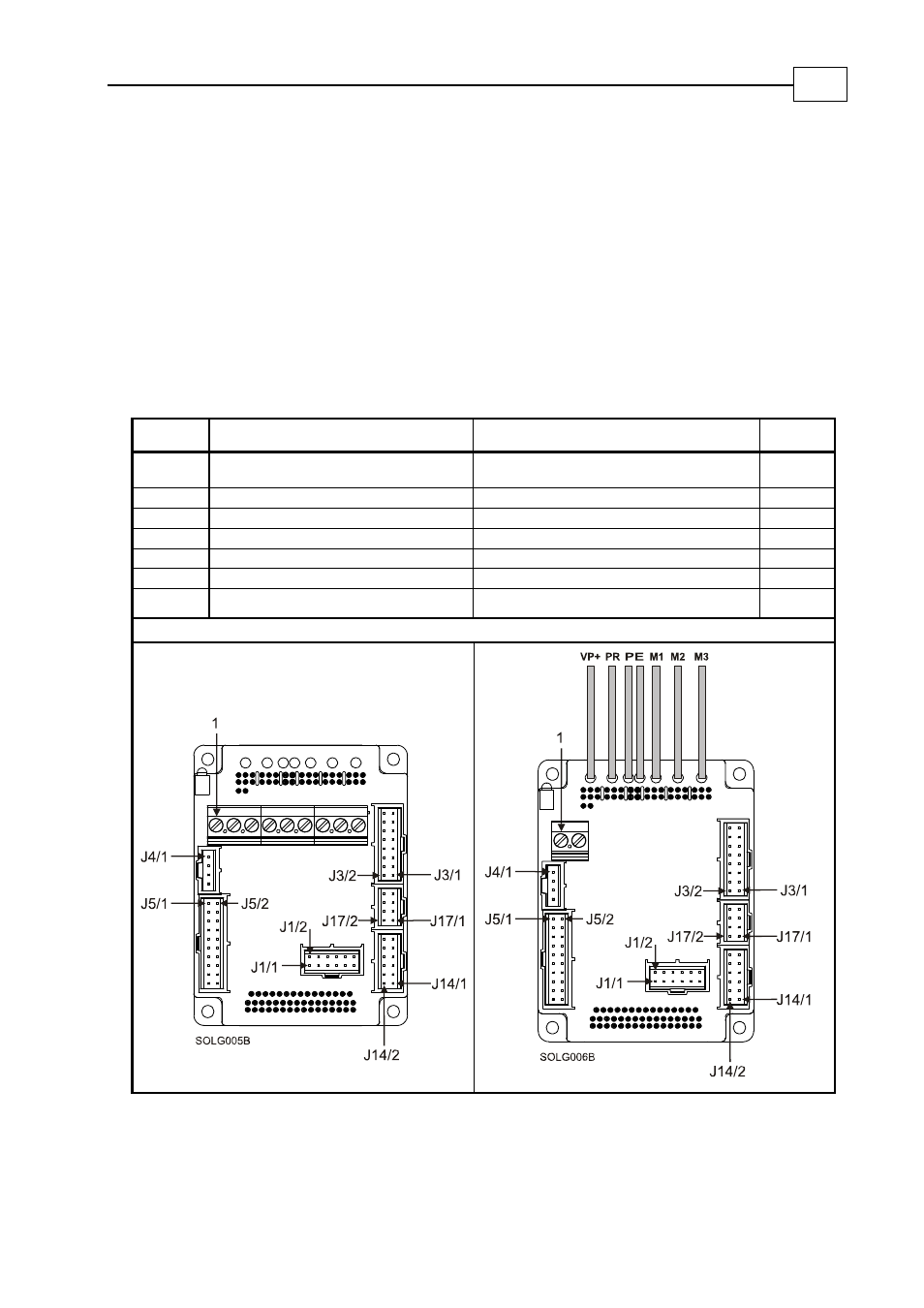

Connector Locations
Table 1-1: Connectors on the Solo Guitar Drive
1-1
