Solo Guitar & Solo Guitar Absolute Feedback Cable Kits
MAN-CBLKIT-SOLGUI (Ver. 1.0)
3. Main Feedback Cable
3.1 Solo Guitar Main Feedback Cable (CBL-HDRFB-001)
The main feedback cables are made from 24-AWG, six twisted-pair shielded cable. There is
one type of feedback cable, which uses a 12-pin C-Grid III (Molex) 2.54 mm pitch plug on
the
SimplIQ side.
The General-Purpose Main Feedback Cable (CBL-HDRFB-001) is open on the motor side so
that it can be connected to customer-specific connectors.
Pin No. Color Description
1 Brown See installation guide
2 White See installation guide
3 Cyan See installation guide
4 Orange See installation guide
5 Purple See installation guide
6 Black See installation guide
7 Red See installation guide
8 Blue See installation guide
9 Green See installation guide
10 Yellow See installation guide
11 Pink See installation guide
12 Drain wire See installation guide

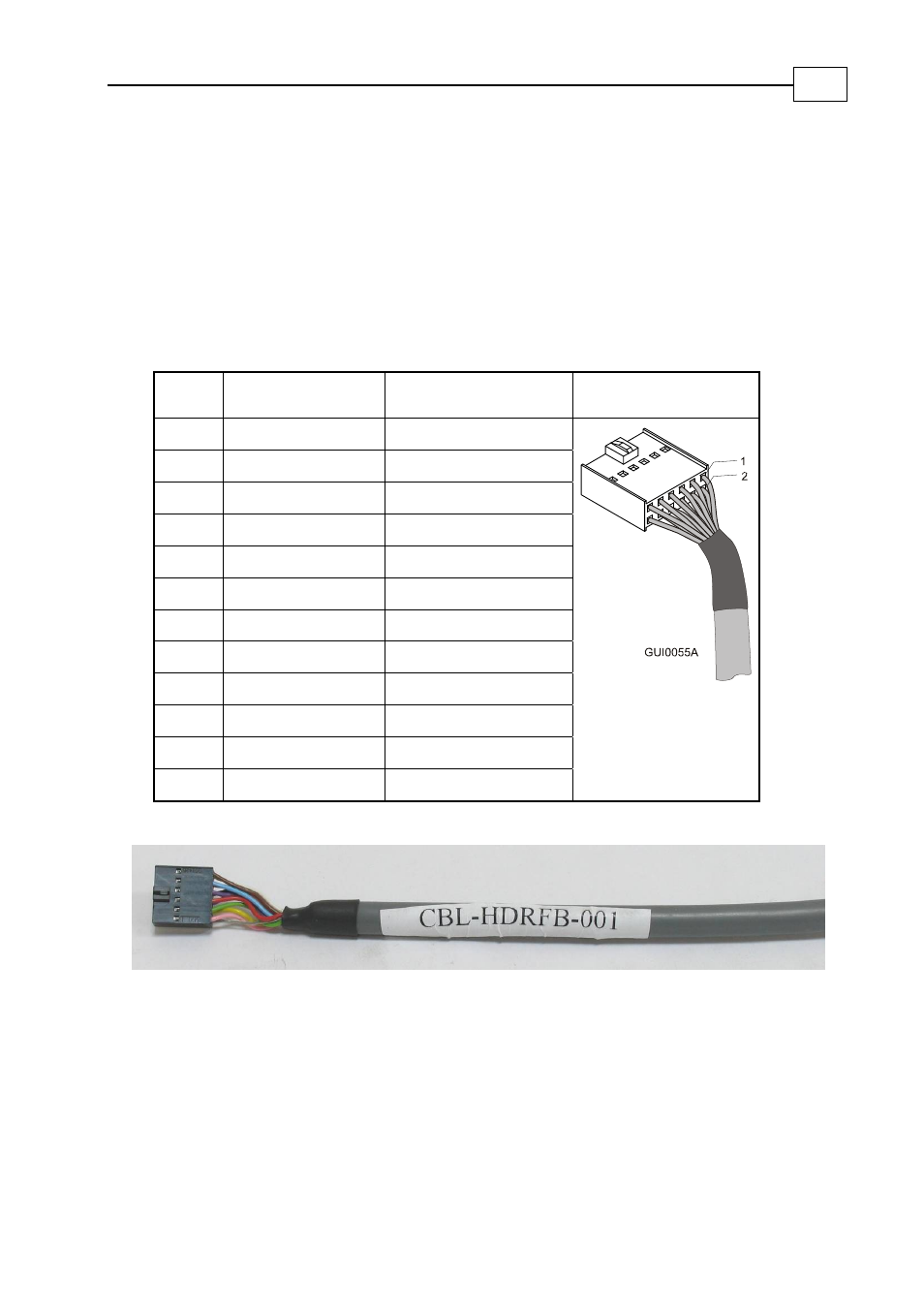

Table 3-1: Main Feedback Cable for the Solo Guitar Drive
Figure 1: Single-sided Main Feedback Cable (Part No. CBL-HDRFB-001)
3-1
