Solo Guitar & Solo Guitar Absolute Feedback Cable Kits
MAN-CBLKIT-SOLGUI (Ver. 1.0)
6. I/O Cable (CBL-HDR002)
The I/O cable consists of two 24-AWG twisted-pair shielded cables. It is connected using a
20-pin C-Grid III (Molex) plug.
Pin
No.
Color Description
1 Brown See installation guide
2 White See installation guide
3 Grey See installation guide
4 Pink See installation guide
5 Green See installation guide
6 Yellow See installation guide
7 Red See installation guide
Cable 1
8 Blue See installation guide
9 Green See installation guide
10 Brown See installation guide
11 Yellow See installation guide
12 White See installation guide
13 Cyan See installation guide
14 Purple See installation guide
15 Orange See installation guide
16 Black See installation guide
17 Pink See installation guide
18 Blue See installation guide
19 Drain wire See installation guide
Cable 2
20 Red See installation guide

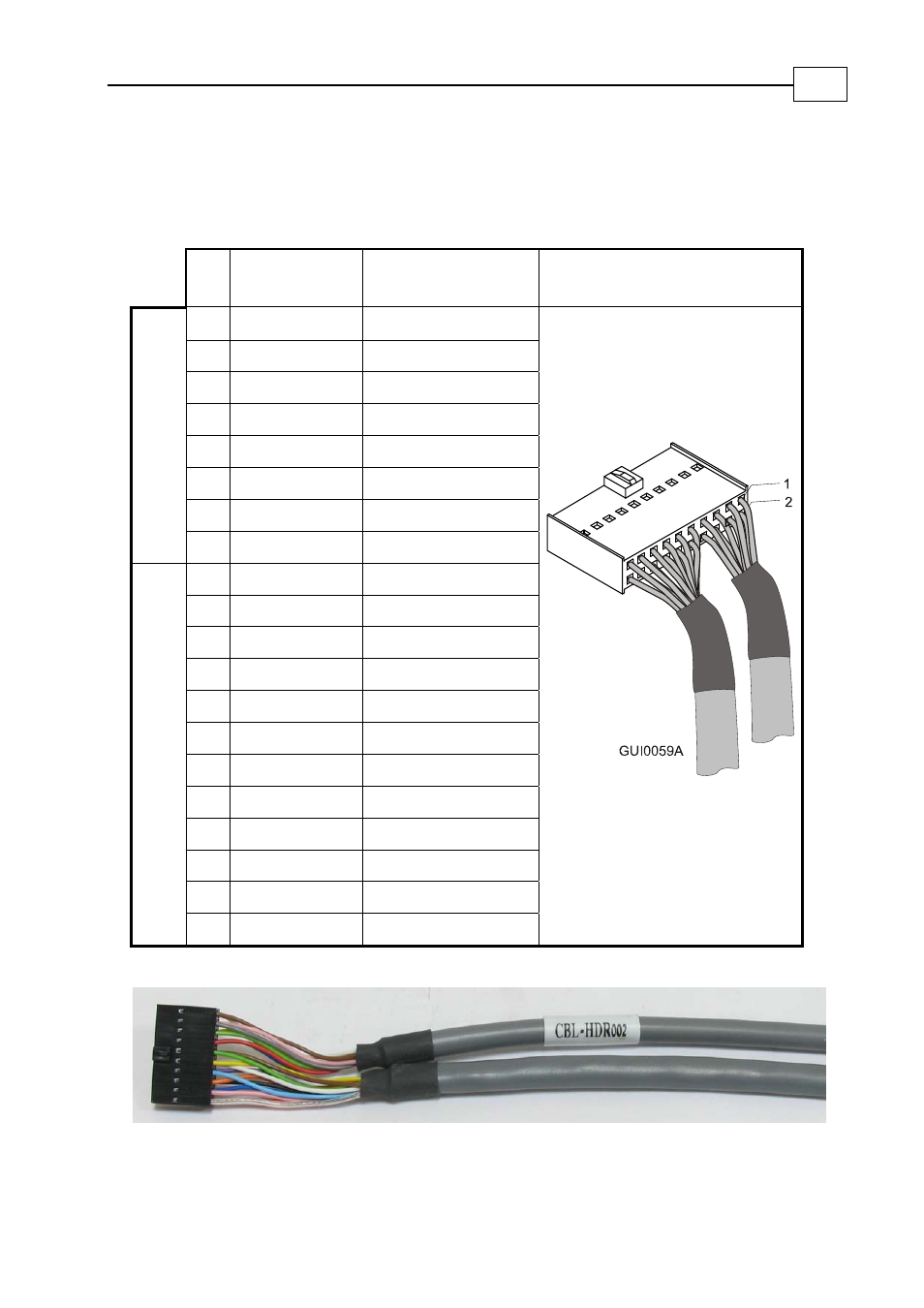

Table 6-1: I/O Pin and Cable
Figure 6: I/O Cable (Part No. CBL-HDR002)
6-1
