Elkhart Brass UBEC 1AT AUTO TANK Fill System User Manual
Page 8
8
AUTO TANK Control Module
1. Measure and mark mounting location for cutout and mounting screw holes. Make sure there is
clearance for the module and cables before cutting hole. Refer to Figure 3 below.
2. Cut out a 2 ¾” diameter hole and drill two (2) holes (clearance or tapped) for 10-32 mounting
screws.
3. Place control module in position and secure with two (2) screws.
4. Connect the cables and wires. (Please refer to Wiring Section on page 18)

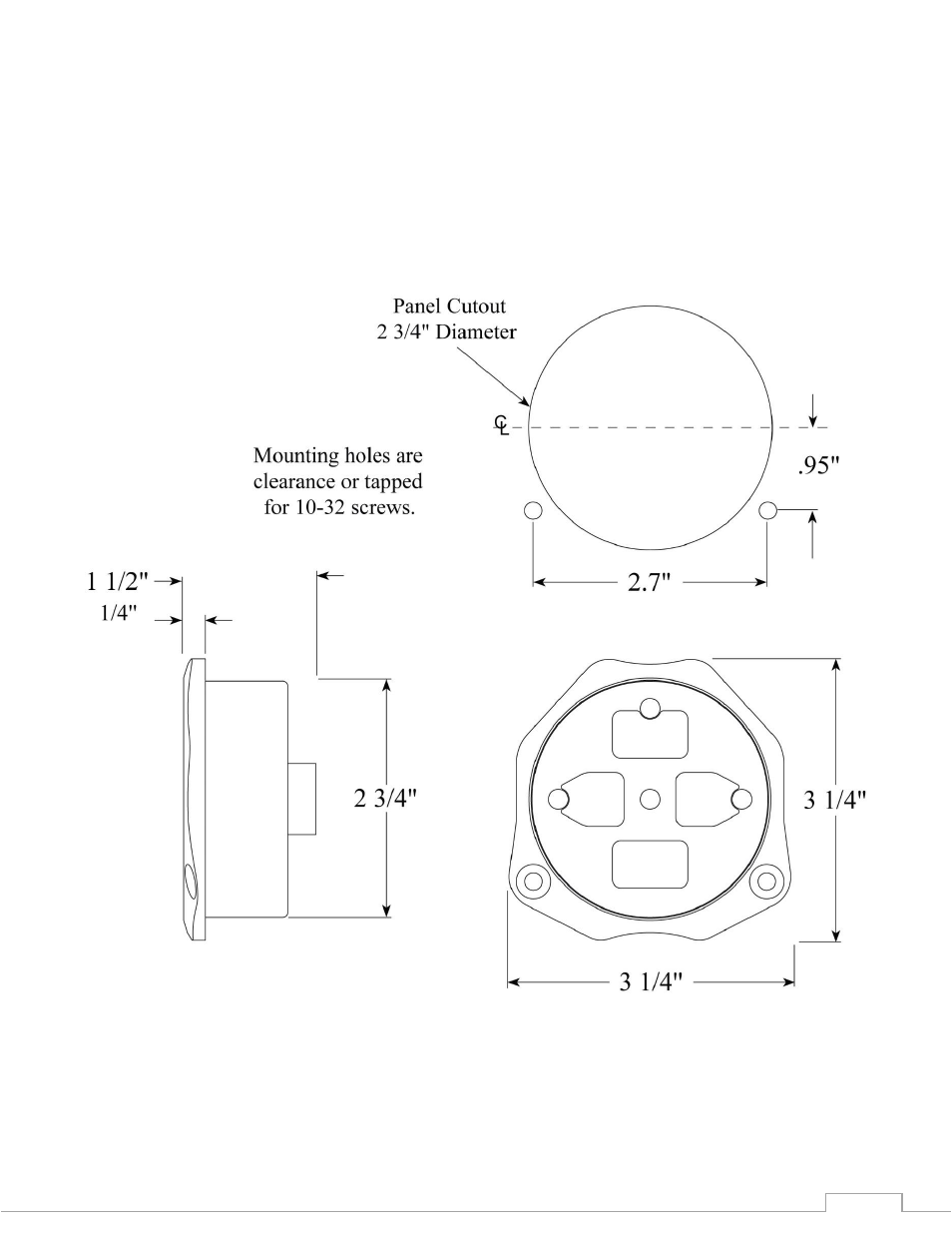

Figure 3: Control Module Dimensions
