4
ELKHART BRASS MANUFACTURING COMPANY, INC

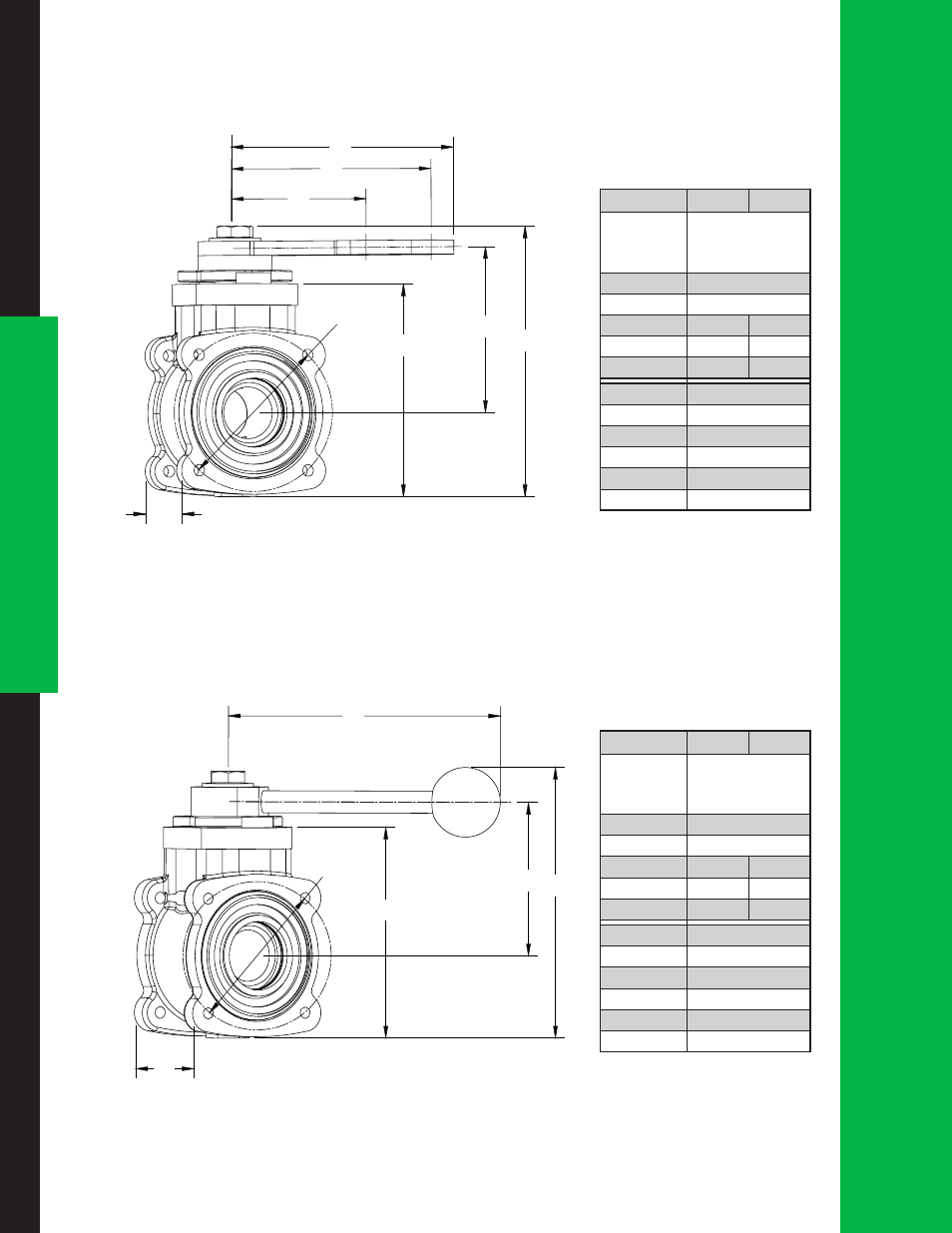

II. COMPONENT IDENTIFICATION
1a. Remote Handle (R1)
1b. Direct Handle (TS)
ELKHART BRASS MFG. CO., INC.
ELKHART, INDIANA
THIS DRAWING CONTAINS INFORMATION THAT IS
PROPRIETARY TO ELKHART BRASS MFG. CO., INC.
AND MAY NOT BE USED TO PRODUCE ANY PARTS,
ASSEMBLIES OR PRODUCTS DESCRIBED HEREIN
WITHOUT EXPRESS WRITTEN PERMISSION.
Sb10 - SB15 REMOTE ACTING
PAGE 1 OF 1
03/2012
DIMENSIONAL
DRAWING
ELKHART # SIZE
SB10 1
SB15 1 1/2
A B C D E F G H
1 7/8 2 25/32 3 19/32 2 3/4 4 1/16 4 9/16 2 13/32 3 9/16
2 1/4 3 1/8 4 9/32 3 1/2 4 1/16 5 9/32 2 13/32 3 9/16
E
D
C
B
F
A
G
H
ELKHART BRASS MFG. CO., INC.
ELKHART, INDIANA
THIS DRAWING CONTAINS INFORMATION THAT IS
PROPRIETARY TO ELKHART BRASS MFG. CO., INC.
AND MAY NOT BE USED TO PRODUCE ANY PARTS,
ASSEMBLIES OR PRODUCTS DESCRIBED HEREIN
WITHOUT EXPRESS WRITTEN PERMISSION.
SB10 - SB15 DIRECT ACTING
PAGE 1 OF 1
03/2012
DIMENSIONAL
DRAWING
E
B
F
D
C
A
ELKHART # SIZE A B C D E F
SB10 1 1 7/8 2 5/8 3 19/32 2 3/4 4 3/4 4 5/8
SB15 1 1/2 2 1/4 2 31/32 4 9/32 3 1/2 4 3/4 5 5/16
Size 1.0” 1.5”
Materials Body - Brass
Ball - Stainless Steel
Seat - Plastic
Ball Type Round
Max Pressure 600 psi
C
v
Value 81 206
Elkhart Model SB10 SB15
Akron Model 8810 8815
Actuator Type Remote Handle
Actuator Style Short
Locking Non-Locking
Handle Travel 90°
Elkhart Model R1
Akron Model R-1
Size 1.0” 1.5”
Materials Body - Brass
Ball - Stainless Steel
Seat - Plastic
Ball Type Round
Max Pressure 600 psi
C
v
Value 81 206
Elkhart Model SB10 SB15
Akron Model 8810 8815
Actuator Type Direct Handle
Actuator Style Short
Locking Locking
Handle Travel 105°
Elkhart Model TS
Akron Model TS
