Monitor Quick Install Guide:

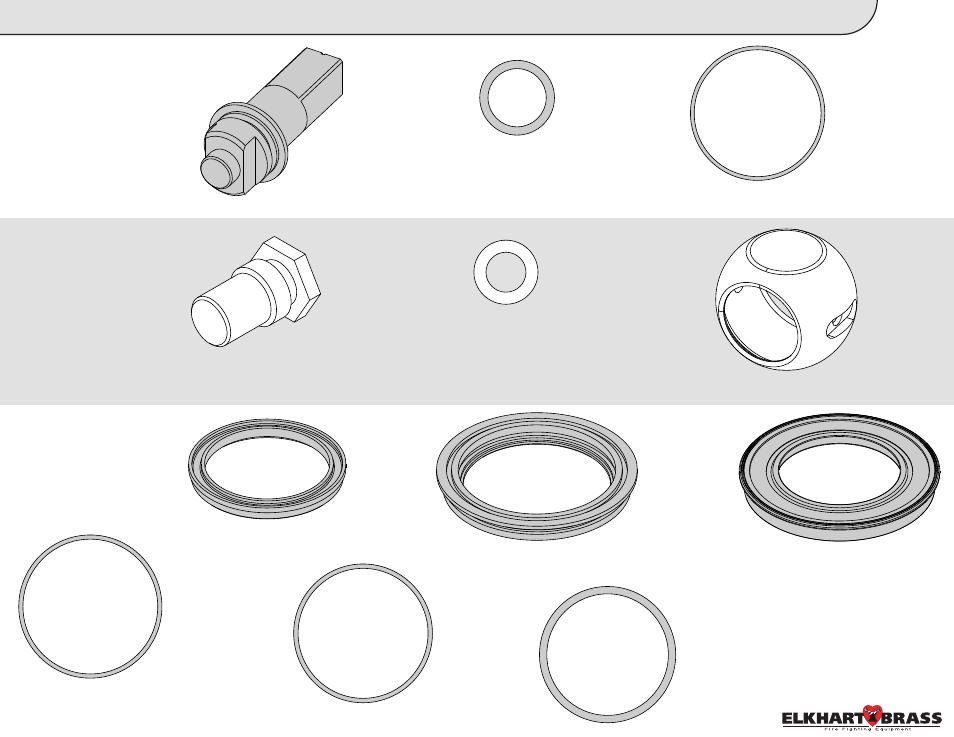

New Style Kit Parts List
3 COPPERHEAD
®
39077000 Rev. Rel
P/N 65346001 - 8593 Actuator Shaft (Qty. 1)
P/N 57290000 - Blue O-Ring (F) (Qty. 1)
P/N 57344000 - O-Ring (A) (Qty. 1)
P/N 18473001 - 8593 Bolt Pivot (Qty. 1)
P/N 17331000 - EB30 Ball (Optional, Qty. 1)
P/N 57530000 - O-Ring (B) (Qty. 1)
P/N 58912001 - 8593 Retainer (Qty. 1)
P/N 57442000 - O-Ring (C) (Qty. 2)
P/N 57378000 - O-Ring (D) (Qty. 1)
P/N 57555000 - O-Ring (E) (Qty. 1)
P/N 65015000 - EB30 Seat (Qty. 1)
P/N 65020000 - 8593 Seat (Qty. 1)
Replacing the
Actuator Shaft
Bolt Pivot &
Ball
Replacement
Seat
Replacement
P/N 65495001 (No Ball Included)
P/N 65496001 (Ball Included)
