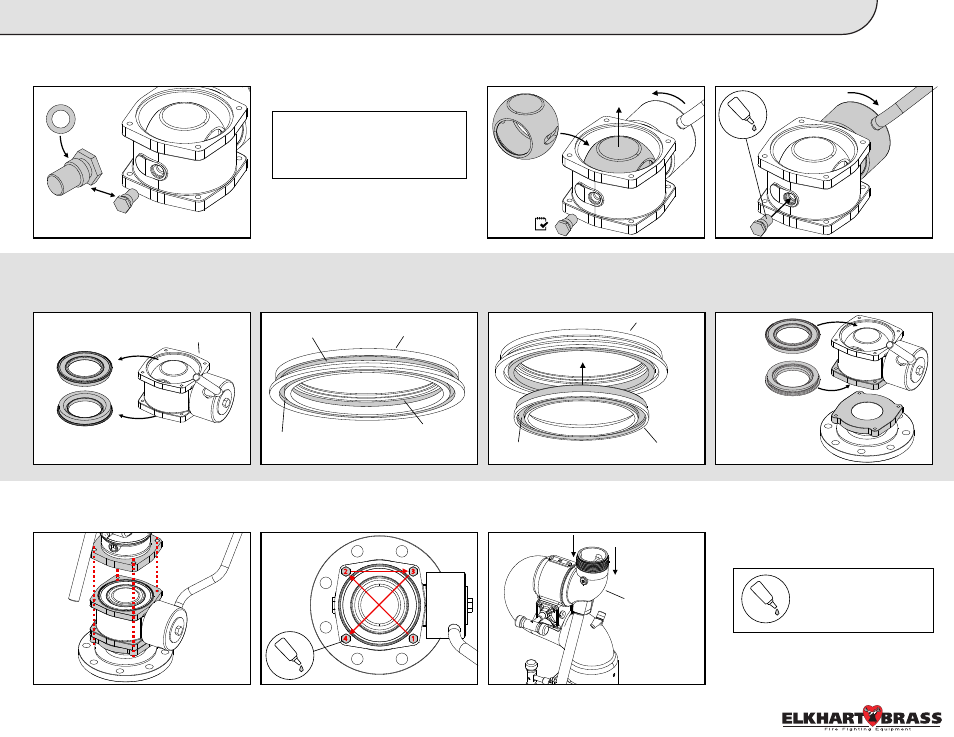

ATTACHING UPPER MONITOR
BOLT PIVOT & BALL REPLACEMENT
Monitor Quick Install Guide:
New Style Kit
SEAT REPLACEMENT
2 COPPERHEAD
®
3.
4.
5.
A. Remove old Bolt Pivot & O-ring, and
replace with the New Style Kit Bolt Pivot
and O-ring (B).
B. Confirm bolt pivot is removed, and
open the valve. Remove and replace
old ball with New Style Kit valve ball.
C. Move the valve back into the closed
position before reinstalling the Bolt
Pivot. Use Loctite 242 on Bolt Pivot.
NOTE: For kits with a New Style
Kit Valve Ball, proceed to step B.
For kits without a new Valve Ball,
skip to step C.
A. Remove both the upper and lower
EB30 seats from the valve assembly if
not already done.
B. To assemble lower seat, first install 2
O-rings (C) on the outside of the Brass
Retainer, and 1 O-ring (D) on the inside.
C. Next, insert the 8593 Seat into the
bottom of the brass retainer. Then place
O-ring (E) into the slot on the bottom.
D. Make sure O-ring (E) does not fall out
of position, and construct valve assembly
onto the monitor base as shown.
A. Carefully lift the monitor onto the
valve and align the bolt holes.
B. Apply Loctite to threads of all four
Hex Bolts, and tighten monitor to base
at 20 lb. increments up to 45-55 ft-lbs.
C. Reattach Stream Shaper and Nozzle
to discharge elbow and unlock it from
vertical position.
39077000 Rev. Rel
O-ring (B)
New Bolt Pivot
Old Bolt Pivot
New Style Kit
Valve Ball
Valve Body 8593 Retainer
8593 Retainer
8593 Retainer
& 8593 Seat
New EB30 Seat
Upper EB30 Seat O-Ring (C)
O-Ring (C)
O-Ring (D)
8593 Seat O-Ring (E)
Lower EB30 Seat
1
2
4
3
Tighten
in an X
pattern
Discharge Elbow
P/N 65495001 (No Ball Included)
P/N 65496001 (Ball Included)
Indicates the use of
Loctite 242 or equivalent
4x
