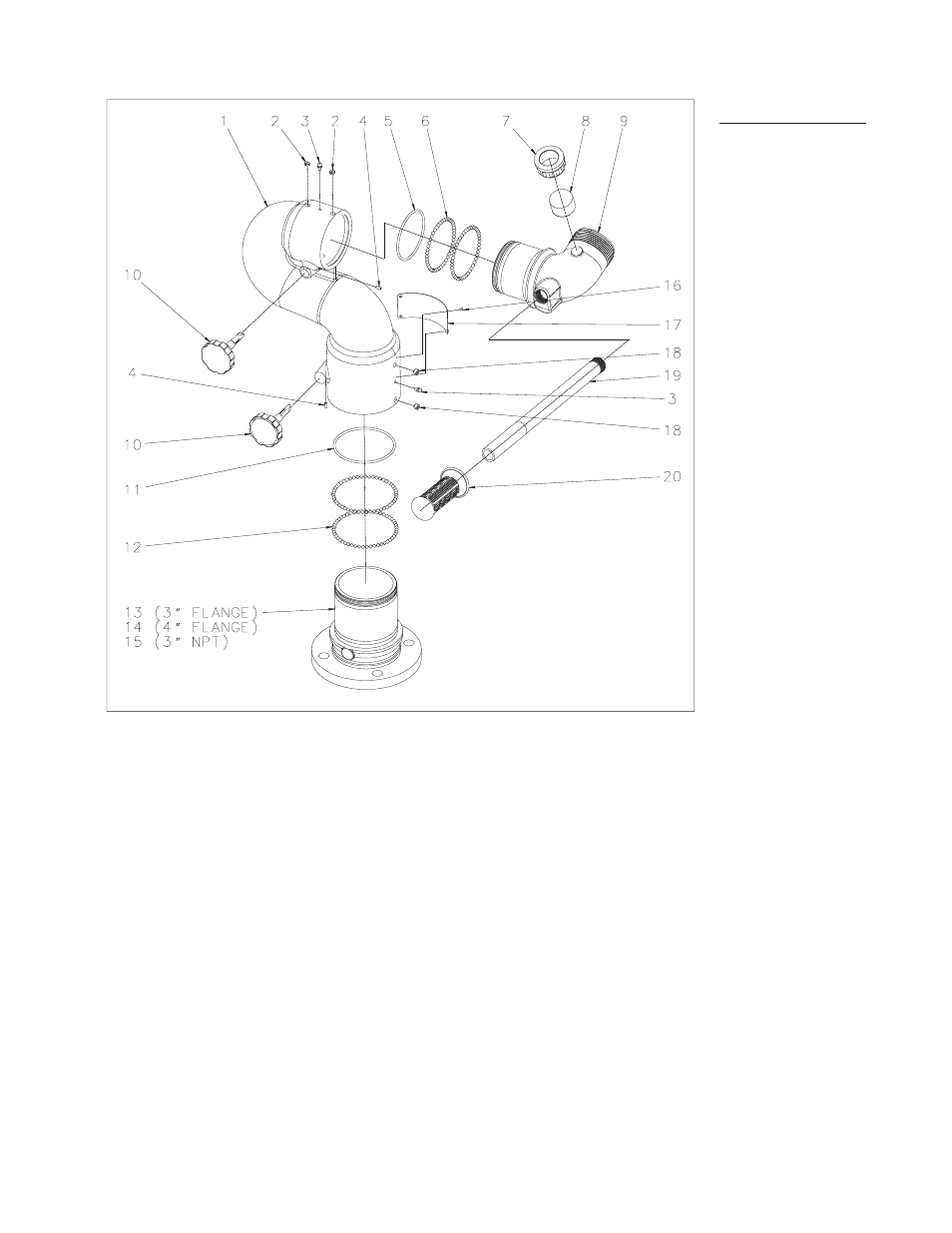

Page 8: Arts, Rawings

background image

V. P

ARTS

D

RAWINGS

INDEX

NO.

PART NO.

QUANTITY

PER UNIT

DESCRIPTION

1

17906001

1

Inlet Body

2

63674000

2

Set Screw

3

31011000

2

Grease Fitting

4

63689000

2

Set Screw

5

57312000

1

O-Ring

6

15027000

92

0.250 Dia Ball S/S

7

23544000

1

Cover - Pressure Gauge

8

39130000

1

Pressure Gauge

9

28135001

1

Discharge Elbow

10

80799101

2

Lock Sub-Assy

11

57316000

1

O-Ring

12

15027000

102

0.250 Dia Ball S/S

13

15616001

1

3.0"-150# Flat Face Flange

14

17952001

1

4.0"-150# Flat Face Flange

15

15620001

1

3.0-8 NPT Fem Base

16

61215100

4

Drive Screw

17

44378000

1

Label/Serial No. Tag

18

63688000

2

Set Screw

19

65363001

1

Handle Shaft

20

33645000

1

Hand Grip

8500-02

(Vulcan)

July, 2005

Page 4

98428000 Rev. Rel
