8593-03/294-11REV.06
(Copperhead) May, 2006

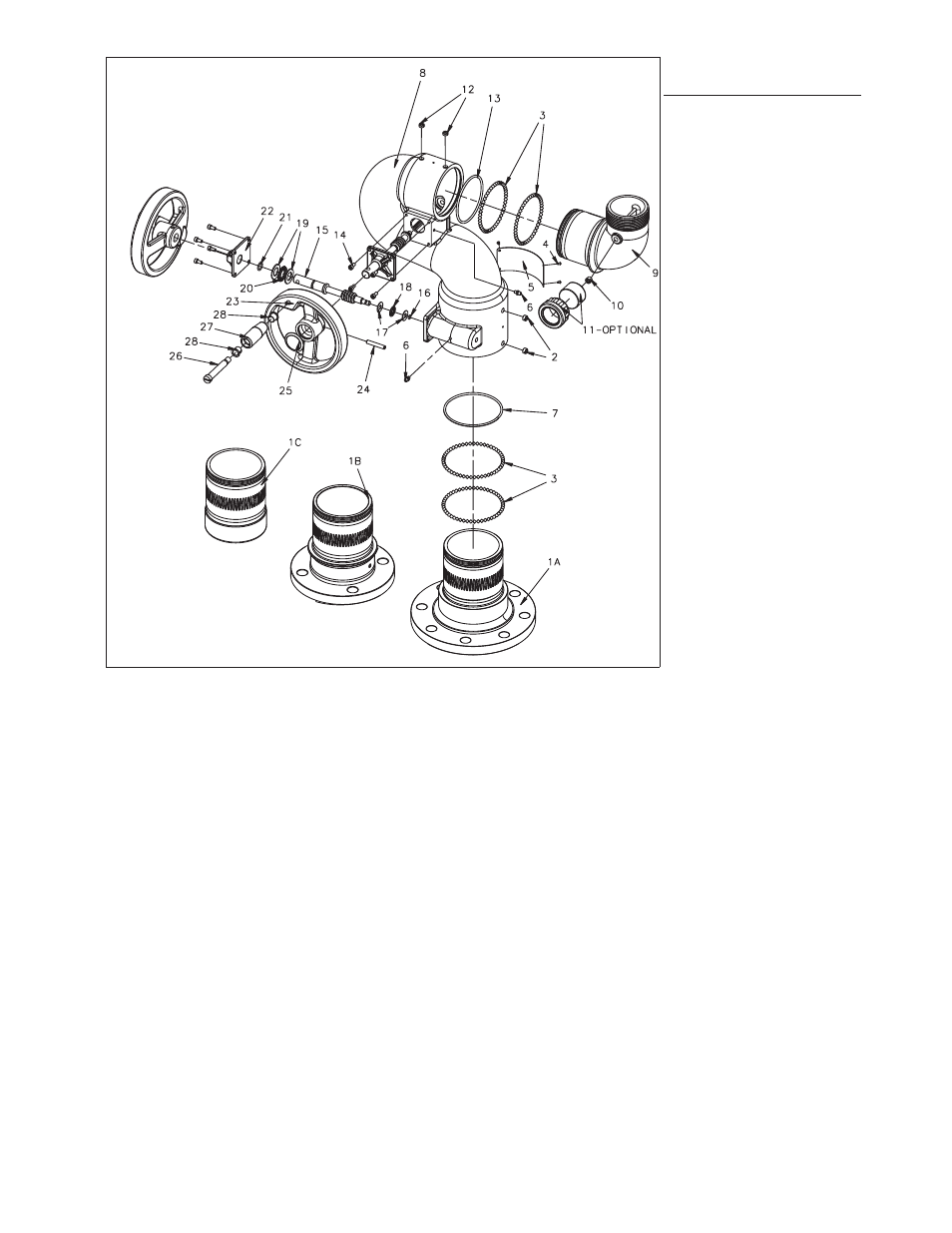

NO. PART NO. DESCRIPTION QTY
1 17968001 BASE - 3" flange 1
1A 17964001 BASE - 4" Flange 1
1B 17972001 BASE - 3" NPT 1
2 61248000 SET SCREW 2
3 15005000 BALL BEARINGS 194
4 61215100 SCREW 4
5 44542000 LABEL/SERIAL TAG 1
6 31011000 GREASE FITTING 2
7 57316000 O-RING 1
8 18215001 INLET BODY 1
9 28141001 DISCHARGE ELBOW 1
10 51891000 PIPE - PLUG 1
11 99401011 PRESSURE GAUGE 1
12 61222000 SET SCREW 2
13 57312000 O-RING 1
14 63795000 SET SCREW 8
15 65655001 WORM SHAFT 2
16 57380000 O-RING 2
17 71516000 THRUST WASHER 4
18 17702000 THRUST BEARING 2
19 71513000 THRUST WASHER 4
20 15699000 THRUST BEARING 2
21 57321000 O-RING 2
22 10466001 FLANGED ADAPTER 2
23 51240000 ROLL PIN 2
24 71236001 HAND WHEEL 2
25 52018000 CAP PLUG 2
26 16436001 SWIVEL BOLT 2
27 36704001 SPINNER HANDLE 2
28 16687000 SPINNER BUSHING 4
Page 8 98428000 Rev. Rel
