M x4 N x1
TV INSTALLATION KIT
BED ASSEMBLY
Stage
6
Page 6 of 9
TV Mounting Bracket
Maximum loading - 20 Kg.
Platform Platform
M
N
Ipod Music Dock - instructions
in the accessory box.
Stage
7
BED SLAT FIXING I x6
J x6
H x6
12
12

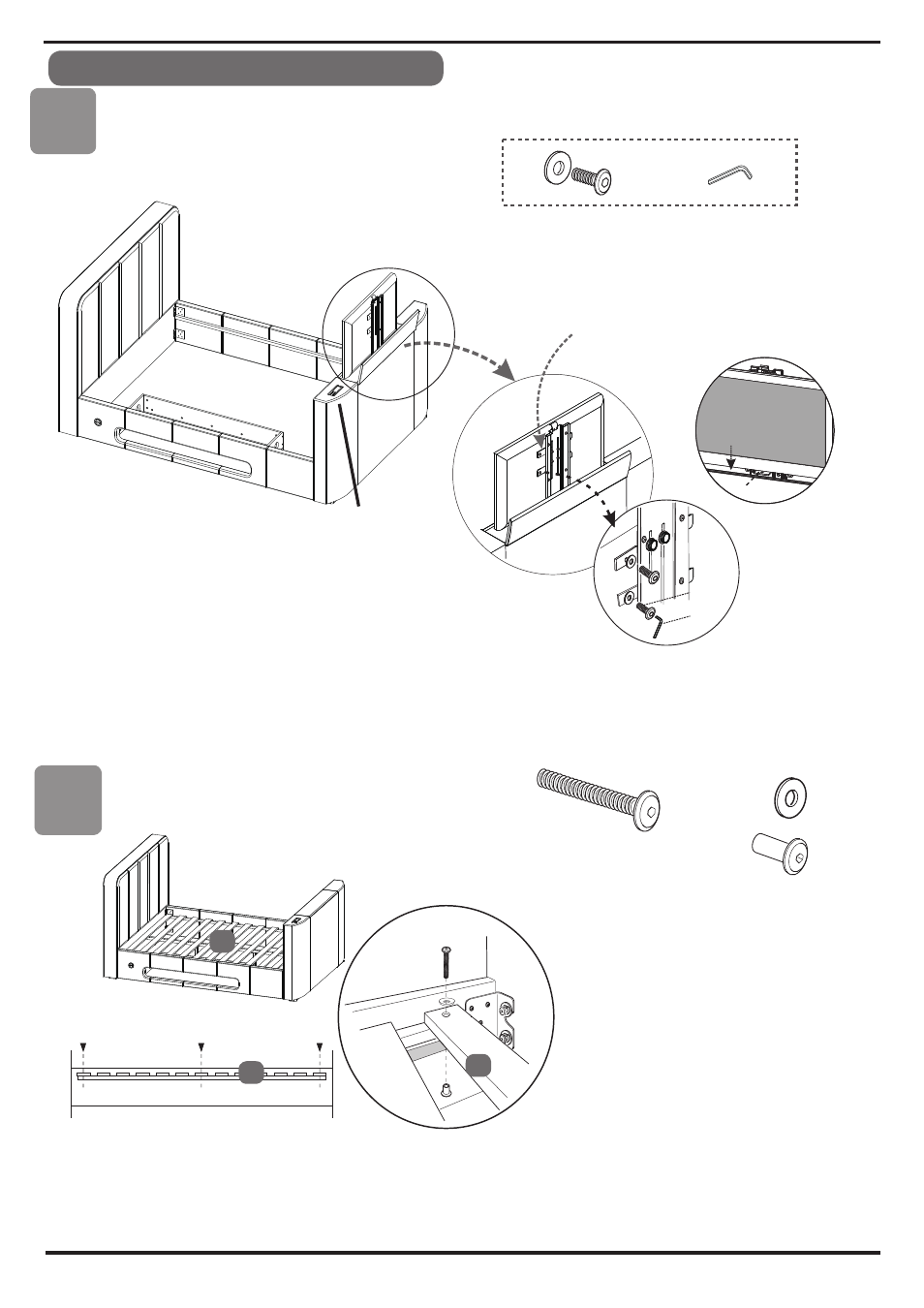

Lay the set of slats ( 12) onto the metal
slat support rails, on each side of the bed.
Align the first and last slat with the holes
at each end of the rails, and secure in place
using the bolts ( H), washers (I) and
sleeve nuts ( J). Fully tighten using
the allen key ( K).
Once secure fix the centre slat using
the bolts as before. Use all x6 bolt sets.
12
TELEVISION INSTALLATION
