Dreams Piccadilly TV Bed - Manual (Page 5)

Bed Assembly
Stage
5
Page 5 of 9
FOOTBOARD
2
2
3 &
4
4
2
3
1

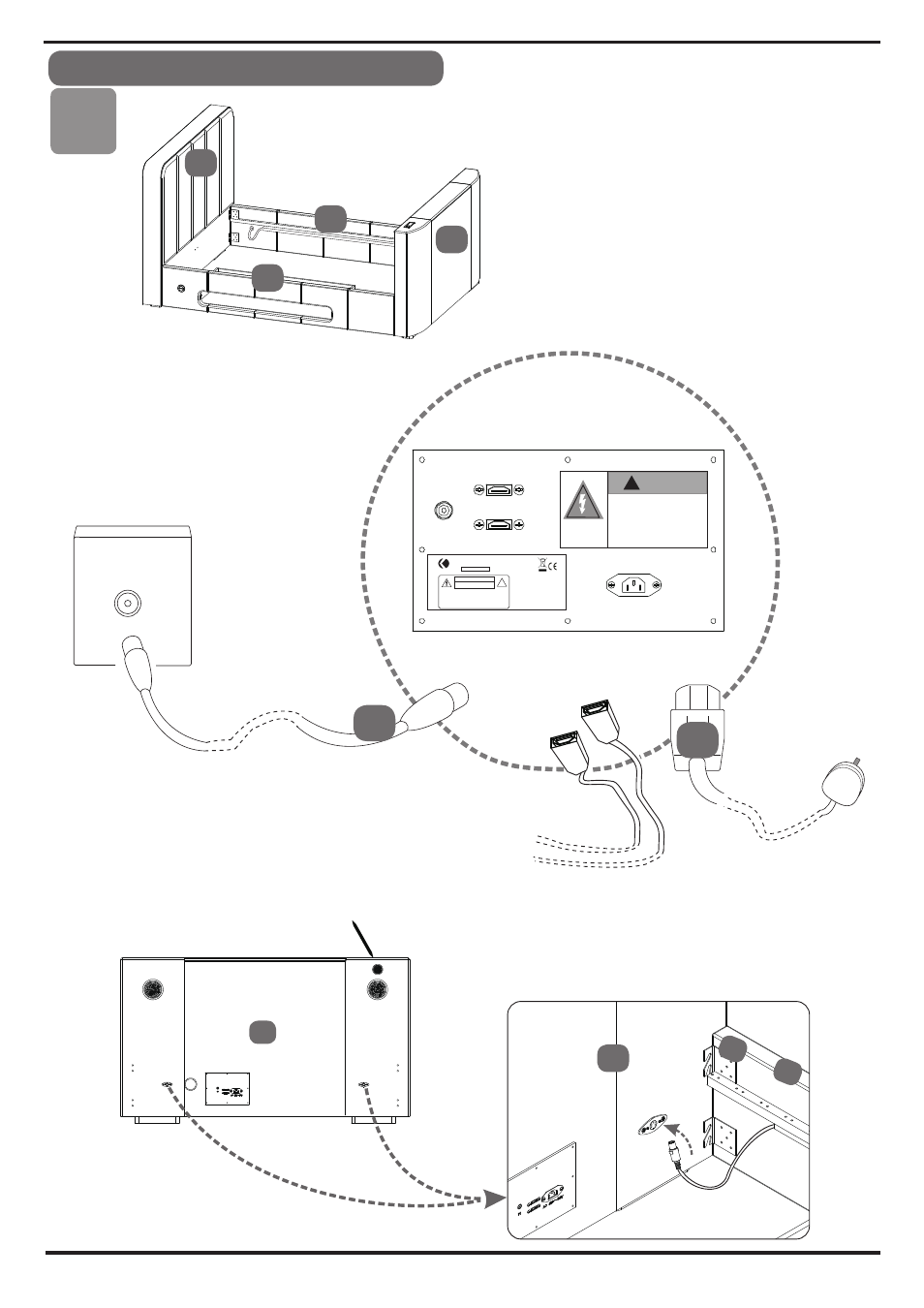

Connect the power cable ( 10) and
aerial cable ( 11) into the sockets
located at the bottom of the footboard ( 2)
and then connect to your wall sockets.
Note that the plug has an earth blade and the
wall socket must have an earth terninal too.
The plug connection must be easy to reach
if you need to disconnect the power.
On each side panel of the bed is a switch to
operate the TV Lift.
The switches are connected to the TV Lift by
a DIN plug on each side of the footboard - make
sure you plug them in properly - align the arrows
on the labels and push right in.
Switch DIN plug
Music dock remote control
eye. Point remote here to
operate dock - see guide
in accessory box.
Aerial
Wall Socket
11
Aerial Socket HDMI 1 & 2
10
Power Socket
AC 220V ~ 240V
TV
