• Safety grounding must be maintained through this product. Metallic conduit may
be used for grounding if it is appropriately bonded to the enclosure. The ground
terminal on the line input and all output terminals may be used for grounding
conductors. All such terminals are internally bonded to the enclosure.
Power input (line) wiring
Supply the DMX8DIM with a protected branch circuit of no more than 20A. The power
input terminals on the DMX8DIM are rated for #12AWG copper wire (maximum). The
torque rating for the terminals is 4.51 IN/LB.
Input power wiring must enter the enclosure and route directly to the input power
terminals without crossing over the circuit board or any control wiring.
Power output (load) wiring
Each output can supply a 250W (maximum) 120VAC load. The output terminals are
rated for #12AWG copper wire (maximum). The torque rating for the terminals is 4.51
IN/LB.
Load wiring must enter the enclosure and route directly to the input power terminals
without crossing over the circuit board or any control wiring.

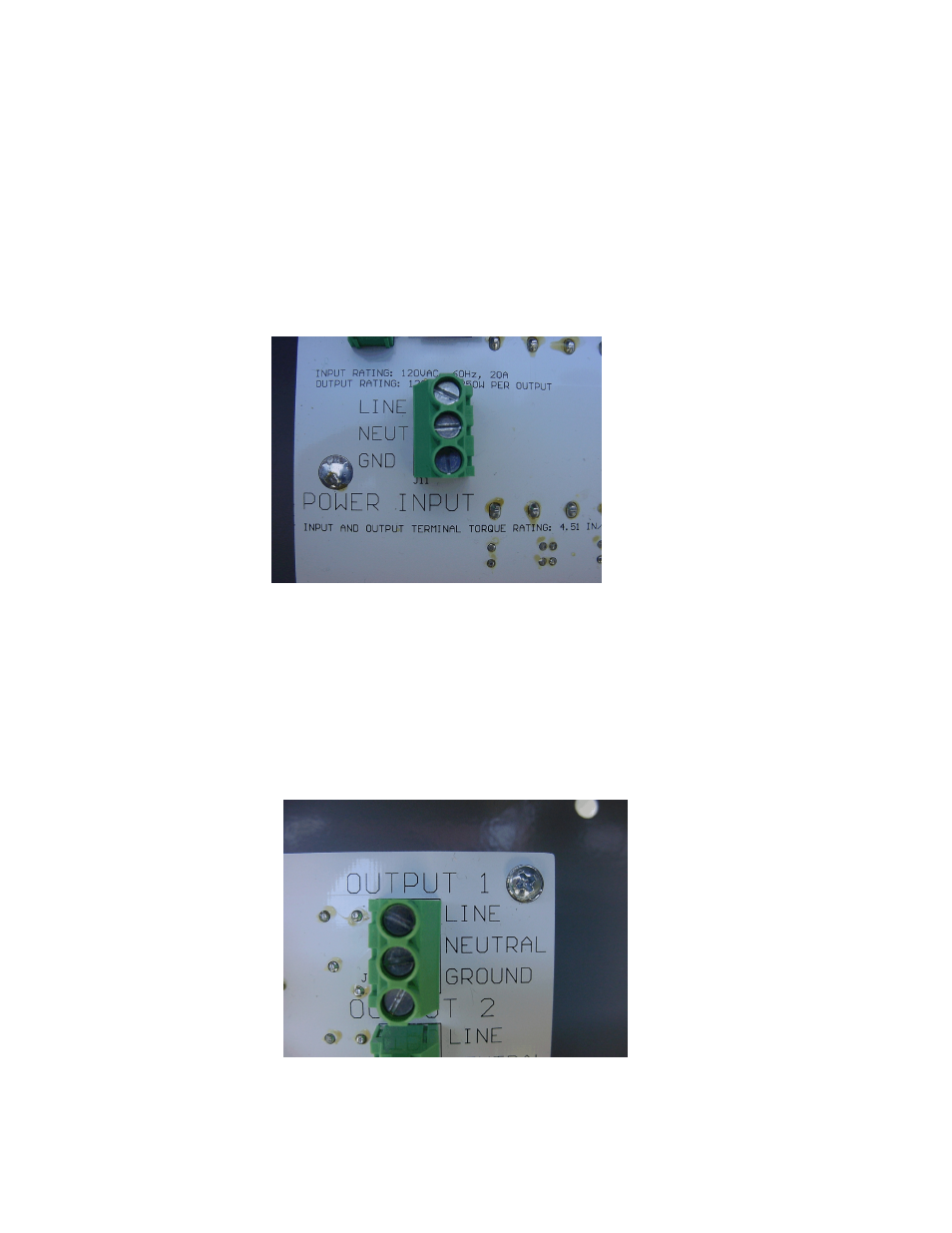

Line input terminal
Load terminal (1 of 8 shown)
