Installing the face down option – Dascom T2265+ Installation Sheet Face Down User Manual
Page 10

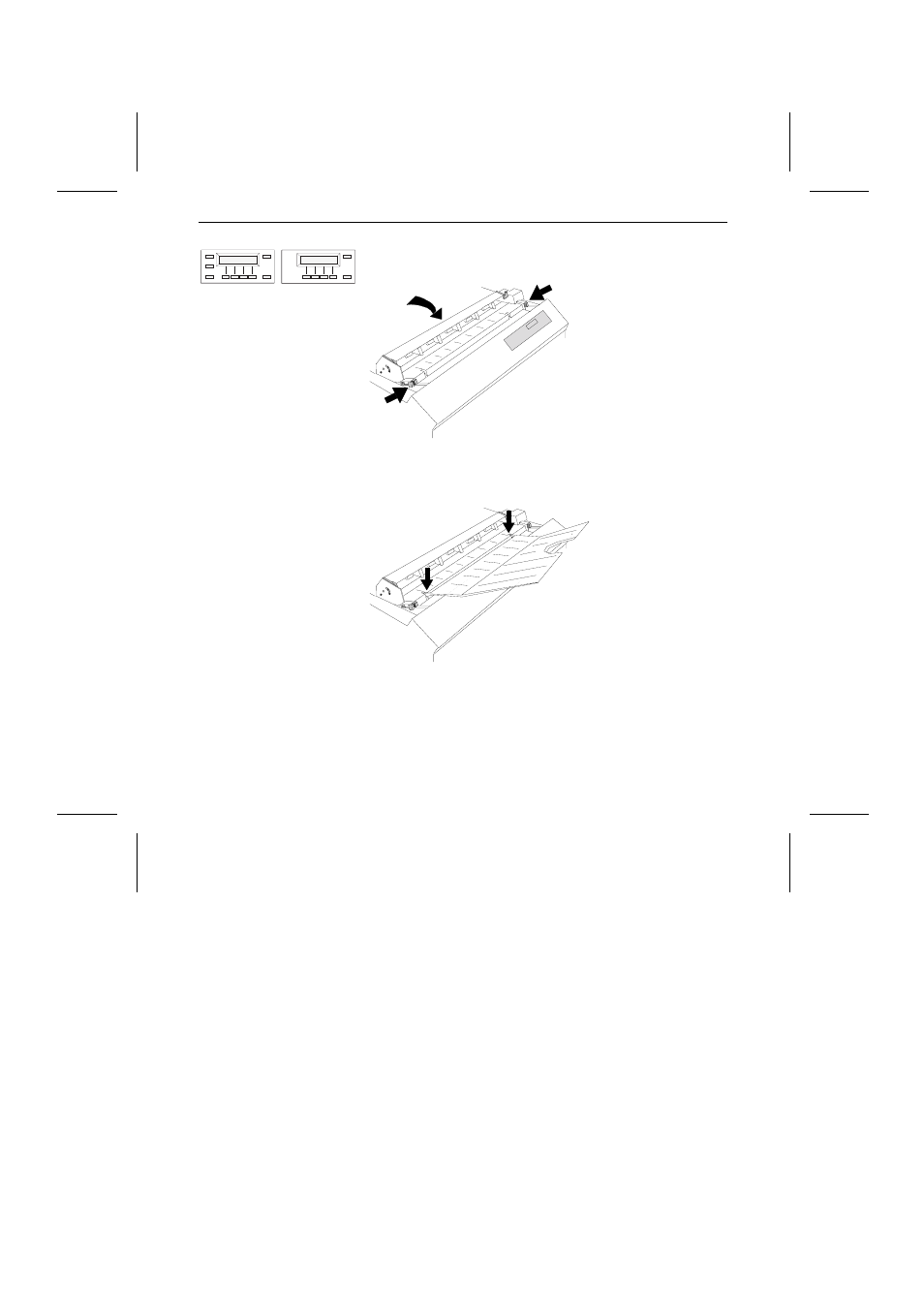

Tilt the transporting unit backward and place it on the top cover.
Lock the transporting unit to the top cover of the printer.
Place the paper depot into the notches of the face down option and tilt
the paper depot to the front (depot rests on the front part of the printer
housing).
↓
↑
↓
↑
↓
↑
↓
↑
Installing the face down option
