12
E. PREPARE FOR PULLBACK
Verify that reel winder pressure gauge is reading between 580 and
870 PSI. If the gauge is reading higher or lower adjust by turning
the pressure adjust knob until pressure reads between 580 and 870
(Figure 8).
Adjust Maximum Tension Limiter to desired maximum pulling tension value
(measured in tons) by inserting the black removable knob into the center of the
large dial. Press down on the block knob and rotate until the large red needed is
adjusted to the desire value. This will be the maximum pulling force the machine
will exert. Once the limit is reached the entire system will shut down and a
warning sound will be activated. (Figure 9).
F. ELECTRONIC CONTROL BOx (ECB) SET-UP (OPTIONAL)
Refer to DLR 300 manual.
G. PULLBACK
To start pullback, pull winch line joystick down. The speed of the pullback can be
increased by increasing the throttle. During pullback make sure to monitor pull
force and speed.
H. SHUT DOWN
At the end of the pull, relieve pulling rope tension using the control lever. Turn off
ignition key.

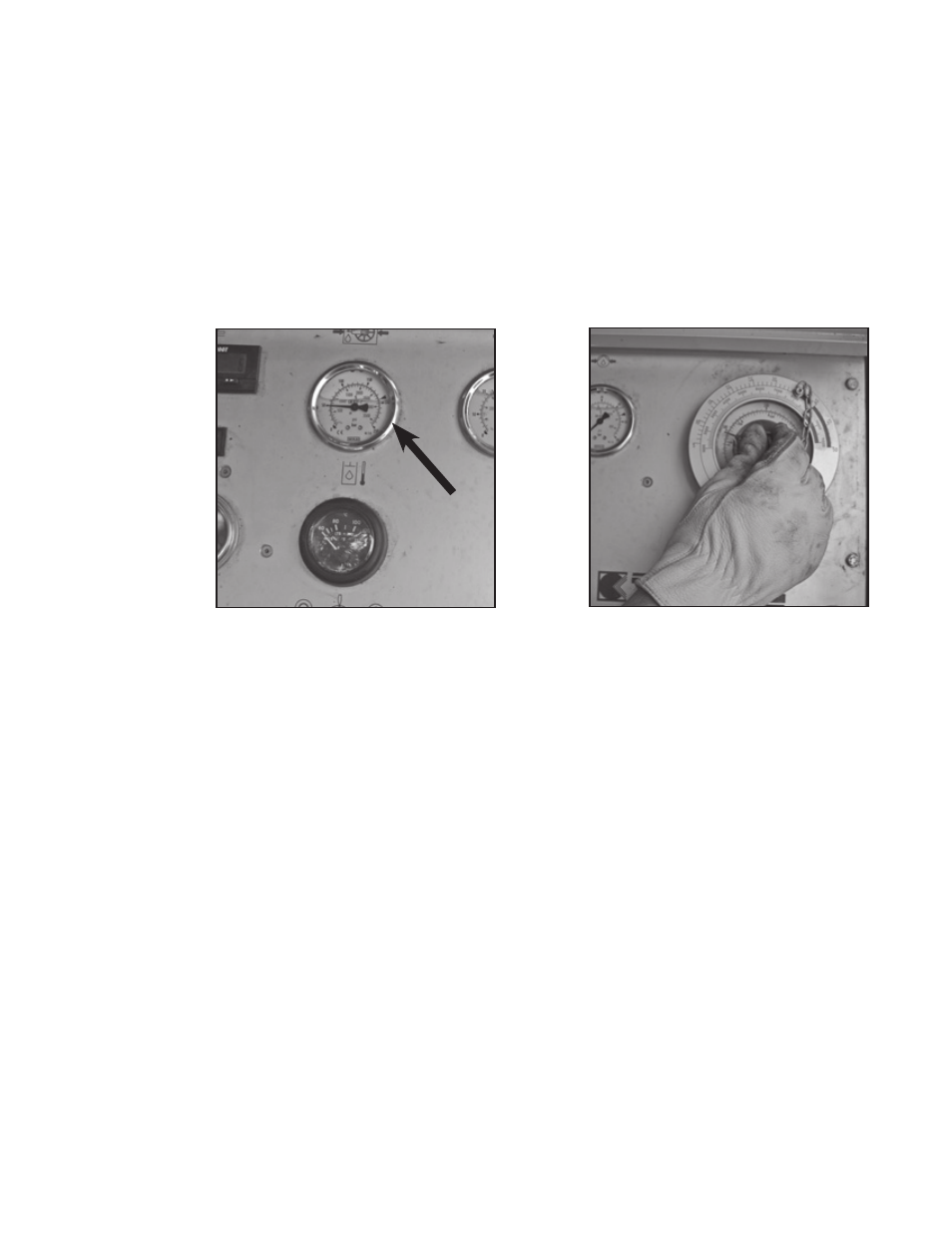

Figure 8. Verify Reel Winder
Pressure Gauge
Figure 9. Adjust Maximum
Tension Limiter
