C. START PULLER
Open control panel on side of WDR 505 and secure. Start the engine by holding
the glow plug rocker switch unit the glow plug indicator light goes out (Figure 6).
Turn the ignition key while holding the glow plug rocker switch until the OK light
comes on (Figure 7). Adjust the throttle so the engine runs at a medium RPM.
D. PAYOUT WINCH LINE
Payout the winch line by pushing the winch line joystick up. The joystick is
infinitely variable so payout speed can be varied by the degree to which the
joystick is moved.
IMPORTANT: Always keep tension on the winch line when paying it out to
prevent slack from developing in bull wheel.
In typical applications, the winch line will need to be paid out to reach the work
area first, i.e. manhole, duct bank, etc. Then prepped for pullback, ie, pulled
through duct bank with a pulling rope or tape or installed with a Condux Winch
Line Blower.

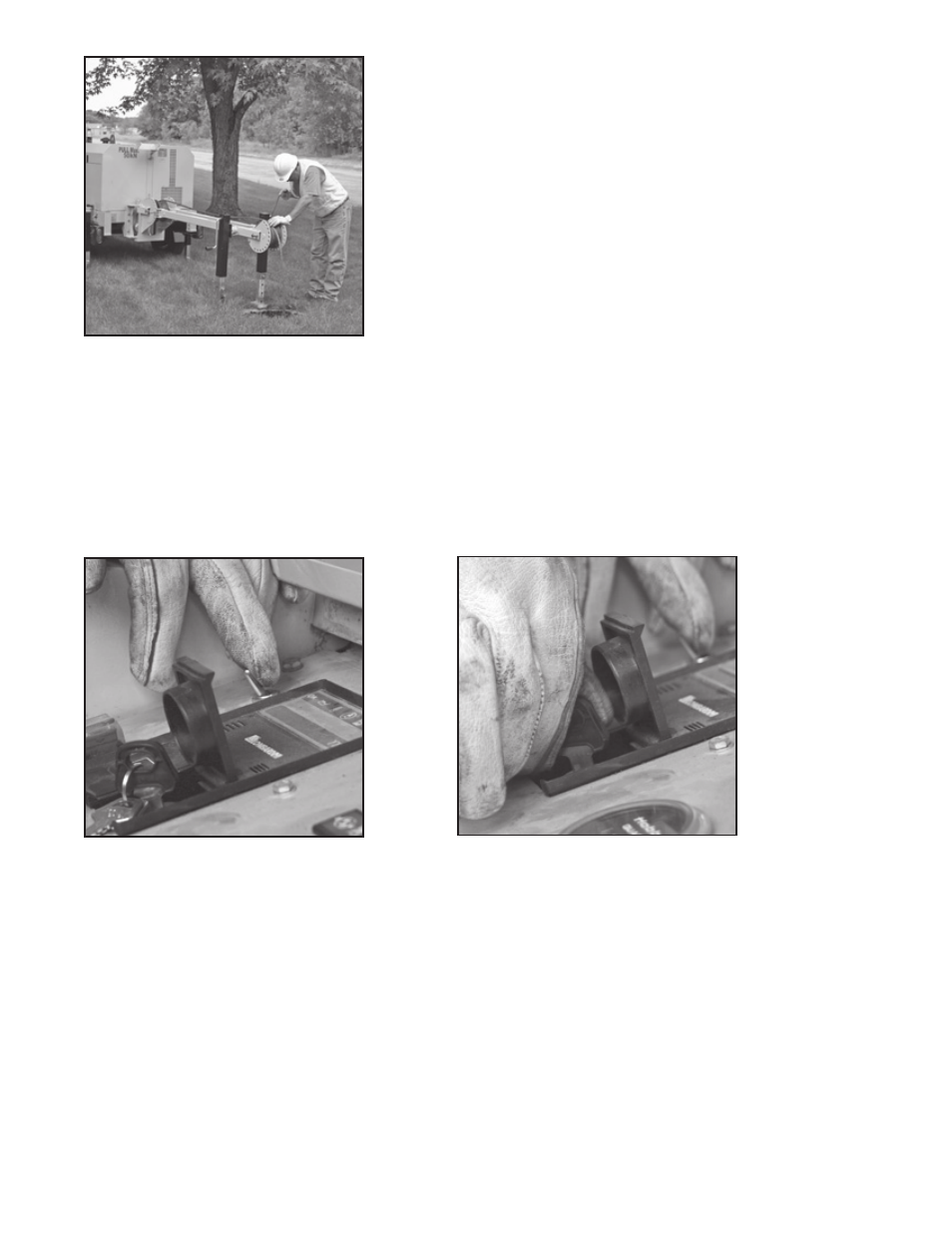

Figure 5. Boom Arm Level to
the Ground
Figure 6. Hold Glow Plug
Rocker Switch
Figure 7. Turn Ingition Key while
Holding Rocker Switch
