2. Once in place, secure the Blower Assembly to Drive Assembly using
(2) #10-24 x 1 1/2" Capscrews. (See figure 3)
3. Select and install the appropriate sized Duct Clamp and Duct Seal to the Blower
Assembly using (1) M04-0.7 x 16mm Capscrew for each. (See figure 4)
4. Select and install the appropriate sized Venturi to the Blower Assembly using (1)
M04-0.7 x 16mm Capscrew. (See figure 5)
5. Install the duct. (See figure 6)

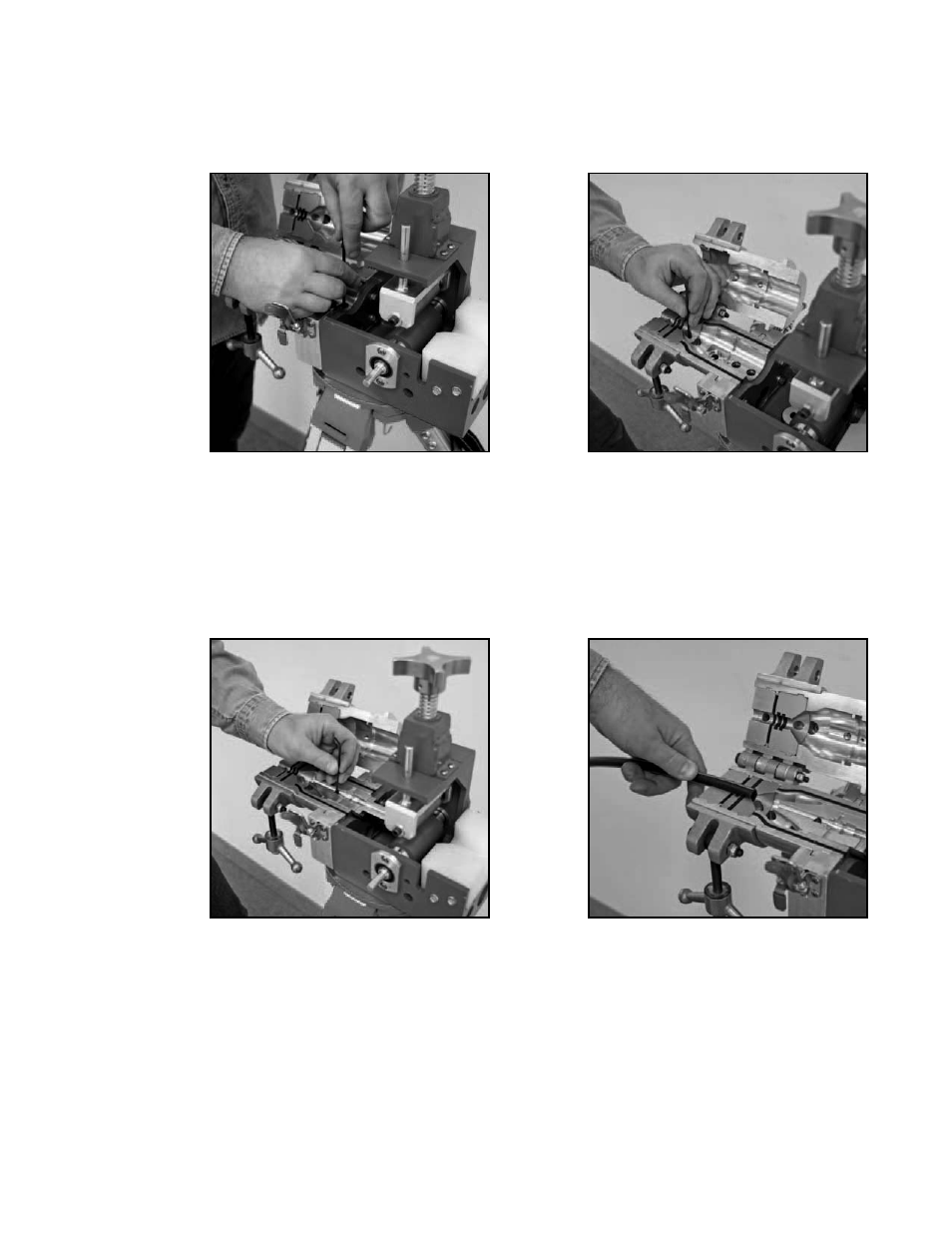

figure 3. mount Blower figure 4. Select & Install
Duct Packs
figure 5. Select and Install
Bottom Venturi
figure 6. Install Duct
