7
Actual parts:
08081315 – blower assy
08081301 – pusher assy
08764110 – 12 mm duct pack
08764150 – 12.7 mm duct pack
08780302 – .23-.34 cable pack
08780304 – .35-.48 cable pack
NOTE: If any parts are missing: please contact your Condux representative or
call Condux International at 1-800-533-2077 (USA or CANADA), or
1-507-387-6576.
Set Up the Blower/Pusher
A. mOUNTING ThE BLOwER/PUShER TO TRIPOD (OPTIONAL)
NOTE: The mini-Blower/Pusher can be operated without optional surveyor’s
style tripod. If using the unit without the tripod, move to step B.
1. Loosen and remove tripod mounting nut. (See figure 1)
2. Place Mini-Blower Drive assembly on tripod so that the mounting bolt extends
through the receiving in the base of the unit. Orient assembly as necessary.
3. Secure drive assembly to tripod by replacing and tightening the mounting nut.
(See figure 2)
B. CONfIGURE ThE BLOwER/PUShER
1. Attach the blower assembly into the drive assembly. Match up the ridge on the
blower assembly with the corresponding groove on the mounting block portion of
the drive assembly.
5.

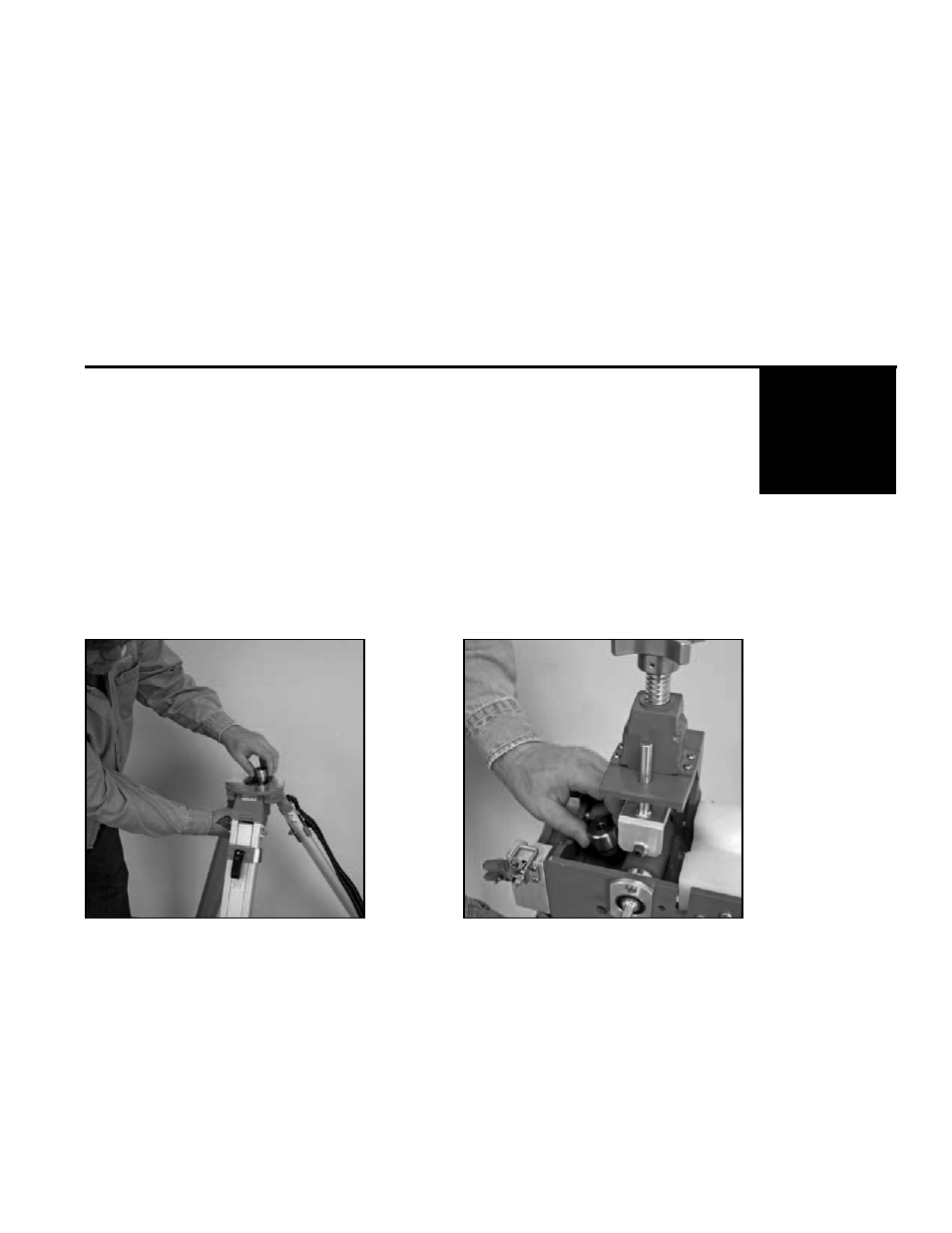

figure 1. mount Unit on Tripod figure 2. mount Pusher Base
on Tripod
