Condux Mini-Blower/Pusher - Manual (Page 17)

17

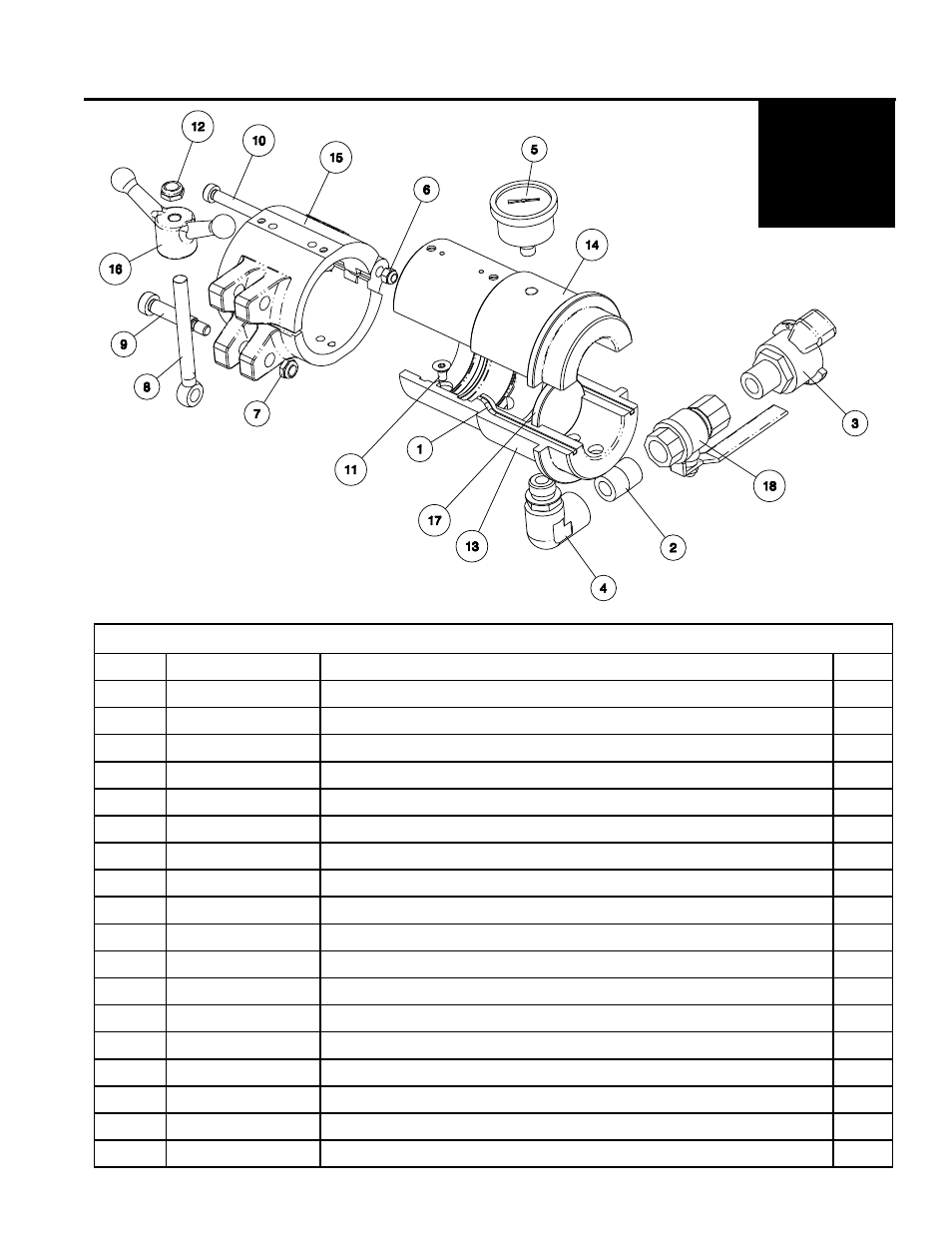

MINI-BLOWER ASSEMBLY (08081315)
ITEM PART NUMBER DESCRIPTION QTY
1 00263400 CORD,QUAD-RING 3.5MM CS X 3.75LG 2
2 02020000 FITTING,HYD 1/2IN MALE NIPPLE 1
3 02129700 COUPLING,UNIVERSAL 1/2IN MALE 1
4 02272600 FITTING,HYD ELBOW 1/2IN (M) O-RING/ 1/2IN (M) JIC 1
5 02288582 GAUGE,PRESSURE 1 1/2IN DIA BACK MNT 0-200 PSI 1
6 02288665 NUT,HEX LOCK M06-1.00 NYLOC 1
7 02288694 NUT,HEX LOCK M08-1.25 NYLOC 1
8 02289293 BOLT,SWING M10-1.50 X 100MM LG 2
9 02289294 SCREW,SHOULDER M10 DIA X 40MM LG 1
10 02289295 SCREW,SHOULDER M08 DIA X 70MM LG 1
11 02289297 CAPSCREW,COUNTERSUNK M06-1.00 X 12MM LG SS 4
12 02289382 NUT,HEX LOCK M10-1.50 NYLOC THIN 1
13 08081316 ADAPTER,LOWER INSERT - MB 1
14 08081317 ADAPTER,UPPER INSERT - MB 1
15 08764001 COUPLING,BODY - HAND HELD BLOWER 2
16 08764006 HANDLE,SPEED-BALL - M10 THREADS 1
17 08780223 PLUG,VENTURI AIR 1
18 11274400 VALVE,BALL 1/2IN 1
D.
Mini-Blower Assembly
APPENDIX
