Condux Extension Frame - Manual (Page 6)

6
D. ATTACH CABLE PULLER ADAPTER TO CABLE PULLER
The HD and Plus (Figure 8), & STD Extension Frame Cable Puller Adapters (Figure 9)
attach to the corresponding CableGlider Cable Puller pivot arm on milled slots. The Cable
Puller Adapter can be adjusted and is secured with locking pins.
IMPORTANT: The adapter will only attach to the first pivot arm. The second pivot
arm must be removed from HD and Plus CableGlider Cable Puller models before
attaching the Extension Frame Cable Puller Adapter.
E. INSERT 2" GRC STEEL DUCT IN CABLE PULLER ADAPTER
The 2" two pieces of Sch 40 GRC steel duct connect to the Cable Puller Adapter in the
cylindrical duct ports and are secured by tightening the cap screws and lock nuts
(Figure 10).
!WARNING: Only use 2" Sch 40 GRC steel duct with Extension
Frame. Thin wall steel duct (EMT) or PvC duct will not withstand
the loads generated and will bend and break causing serious
personal injury or death.

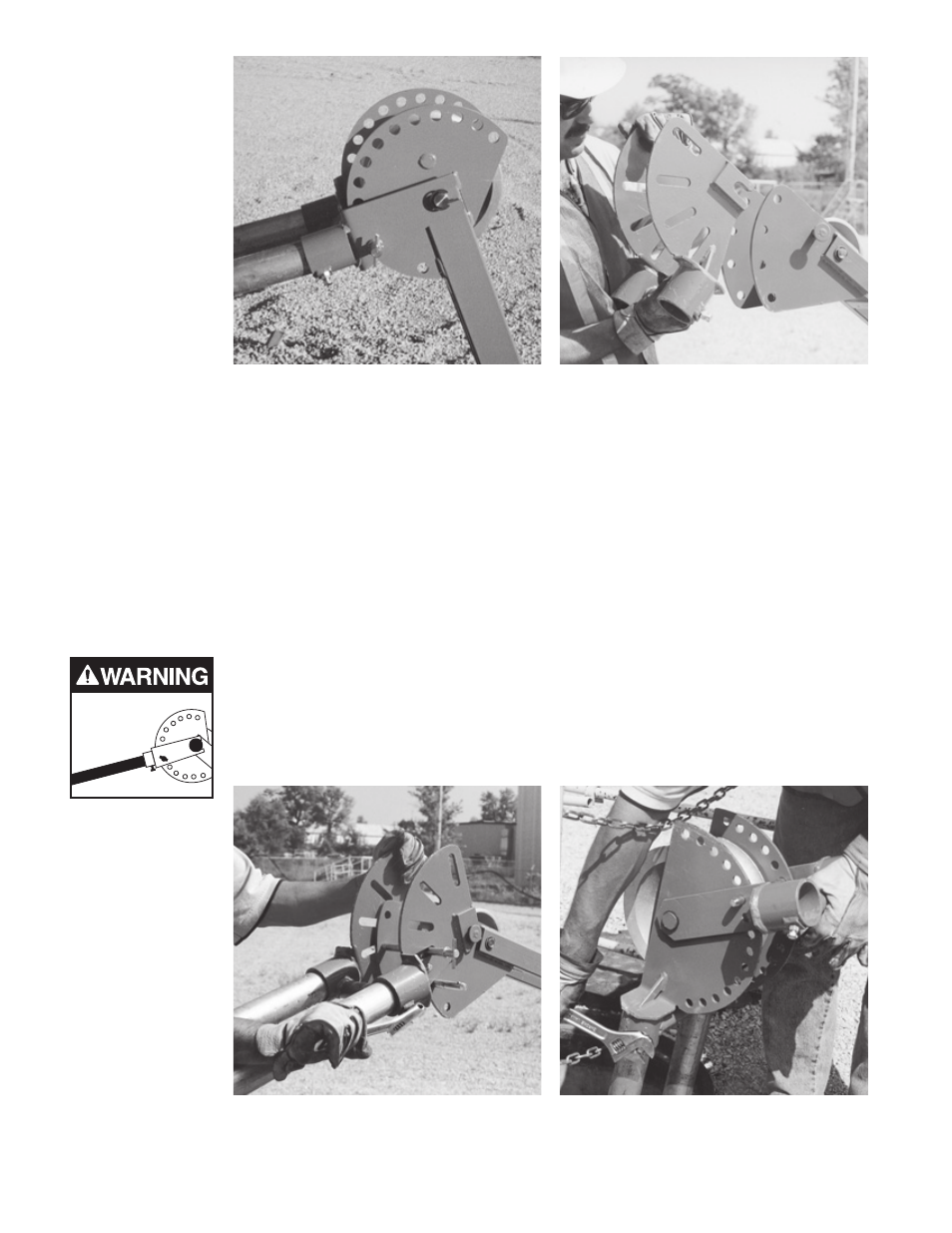

Figure 8 Figure 9
Figure 10 Figure 11
Use Only
2" Sch 40
GRC Steel Duct
