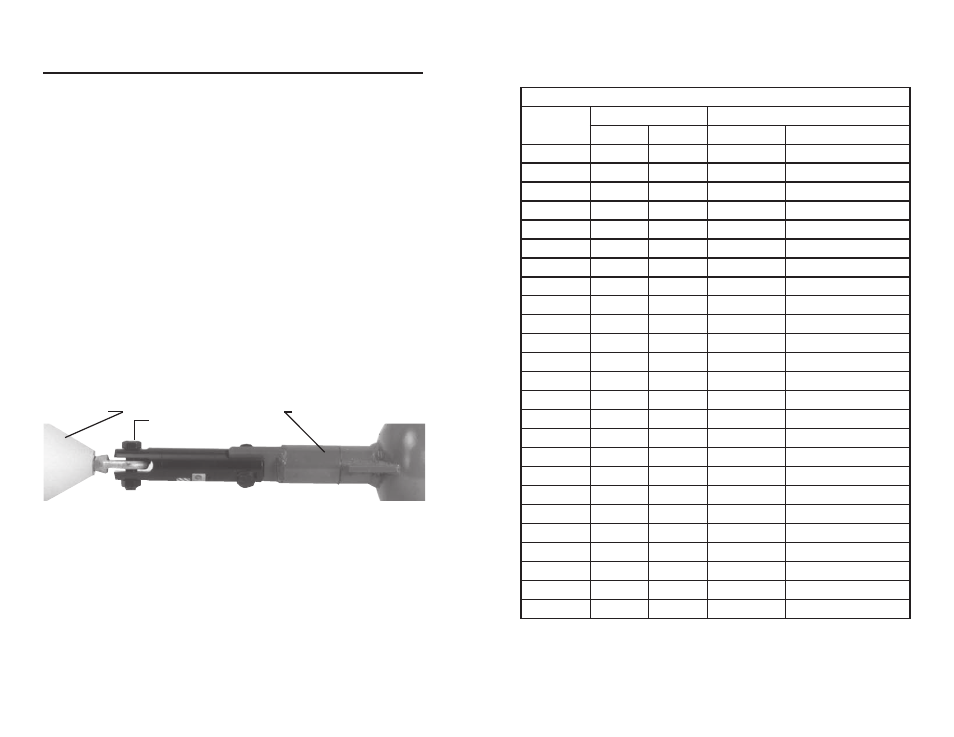

Figure 2. Swivel Connection
NOTE: The D.Drill ® Swivel has four angular contact bearings: three for
tension loads and one for compression loads. The direction of
installation is not critical, but on
7 ⁄
8
" & 1 5 ⁄
8
" - 4" dia. swivels we
recommend pointing the end with a grease zerk towards the reamer.
This helps prevent dirt from getting past the seals.
1. Ensure the swivel is the correct size for the job (see Table 1), and
test the swivel operation.
2. Connect the swivel between the pulling eye and the earth packer
or reamer.
3. Tighten the clevis pin ( 7 ⁄
8
" - 1 3 ⁄
8
" dia. swivels) or nuts and bolts
(1 5 ⁄
8
" - 4" dia. swivels) securely.
Removal is the opposite of the installation procedure.
Earth packer or reamer
Clevis Pin ( 7 ⁄
8
" - 1 3 ⁄
8
")
or Nuts & Bolts (1 5 ⁄
8
" - 4")
Pulling Eye
Installation Procedure
7/8 (22mm) Break Away Swivels
Swivel
Part No
Break Load Replacement Pin
LBS N Part No Color
08021015 150 667 08018105 SLATE/VIOLET
08021020 200 890 08018305 GREEN/ORANGE
08021025 250 1112 08018005 BLUE/WHITE
08021030 300 1334 08017605 BROWN/RED
08021035 350 1557 08018405 BLACK/GREEN
08021040 400 1779 08075305 BLUE/BLACK
08021045 450 2002 08015805 BLUE/YELLOW
08021050 500 2224 08076505 ORANGE/RED
08021055 550 2447 08018505 BLUE/GREEN
08021060 600 2669 08015005 ORANGE/BLACK
08021065 650 2891 08018605 SLATE/GREEN
08021070 700 3114 08076005 ORANGE/WHITE
08021075 750 3336 08075505 ORANGE/VIOLET
08021080 800 3559 08018705 RED/YELLOW
08021085 850 3781 08018805 BLACK/YELLOW
08021090 900 4003 08076605 ORANGE/YELLOW
08021100 1000 4448 08015705 GREEN/WHITE
08021110 1100 4893 08018905 WHITE/YELLOW
08021120 1200 5338 08015205 BROWN/WHITE
08021130 1300 5783 08019105 BROWN/YELLOW
08021140 1400 6228 08074605 GREEN/RED
08021150 1500 6672 08076905 GREEN/YELLOW
08021160 1600 7117 08019205 BLACK/WHITE
08021170 1700 7562 08019305 RED/WHITE
08021180 1800 8007 08017705 BROWN/BLACK
Table 2
