Chapter 1: quick start, 1 installing the cpu – chiliGREEN P5G41T-M LX2 User Manual

Page 6

ASUS Motherboard installation guide

1.1.1

Intel LGA775 Socket

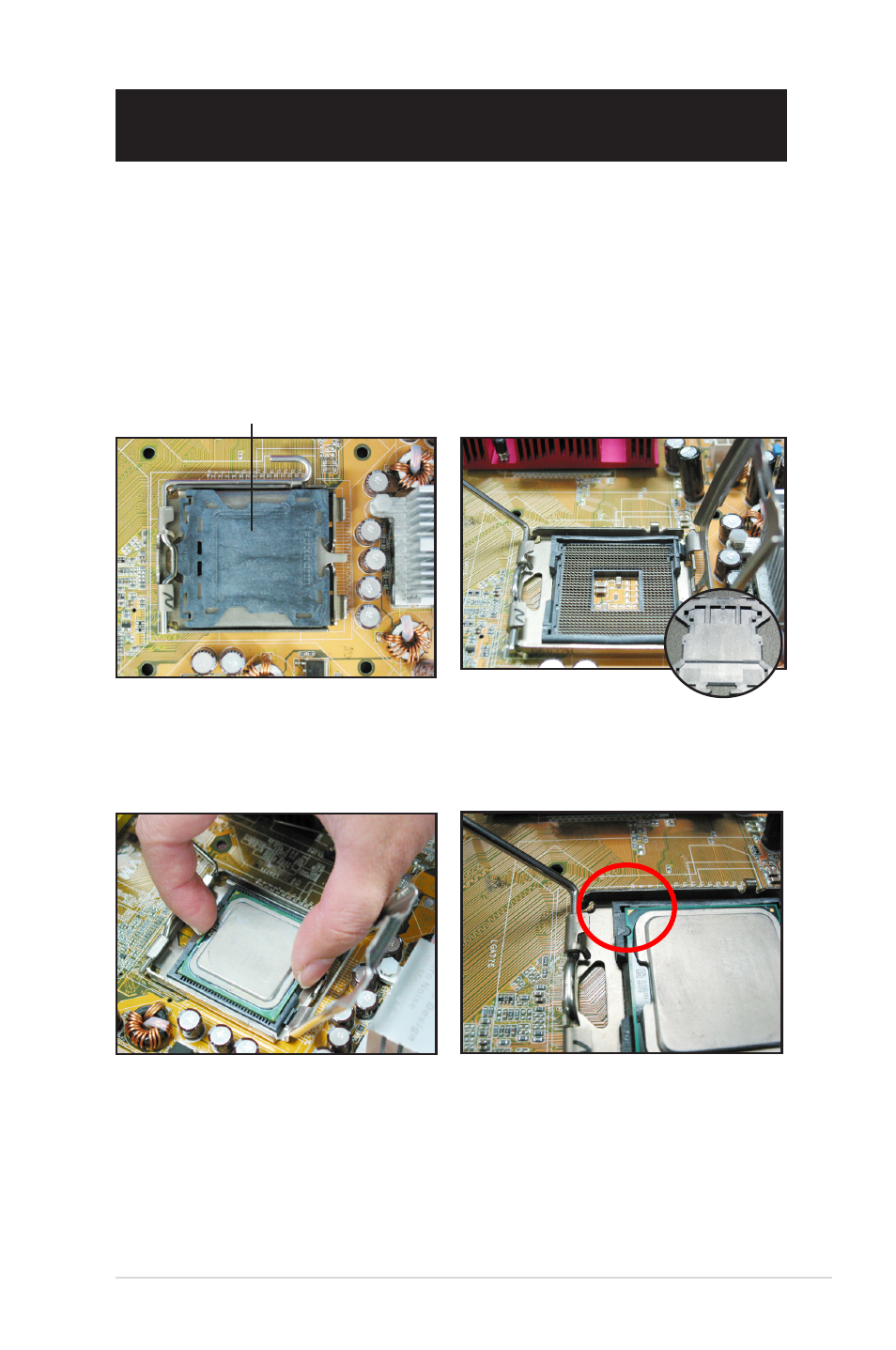

1. Locate the CPU socket on the

motherboard.

. Release the load lever from the

retention tab and lift the load plate.

Then push the PnP cap from the

load plate window to remove

To prevent damage to the socket

pins, do not remove the PnP cap

unless you are installing a CPU.

3. Position the CPU over the socket. 4. Ensure that the gold triangle is

on the bottom‑left corner of the

socket.

Chapter 1:

Quick Start

1.1

Installing the CPU

Pick and Place Cap (PnP Cap)
