Thermal Monitoring

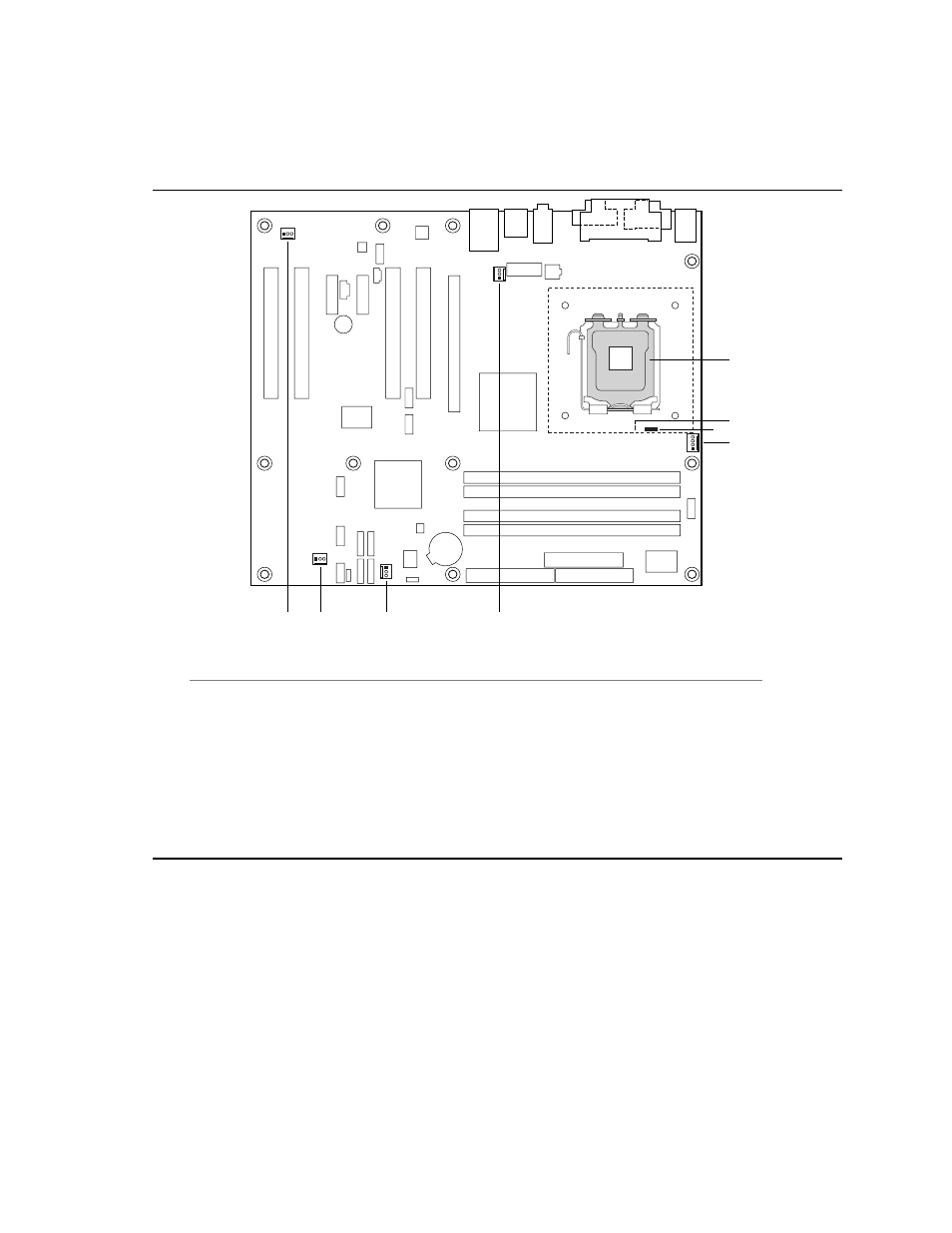

Figure 14 shows the location of the sensors and fan connectors for the D915GAV board.
OM16669
A
B
E F G H
D
C
1 3
1
4
1 3 1
3
1
3
Item Description
A Thermal diode, located on processor die
B Remote ambient temperature sensor
C Ambient temperature sensor, internal to hardware monitoring and fan control ASIC
D Processor fan
E Rear chassis fan 1
F Front chassis fan
G ATX fan (optional)
H Rear chassis fan 2
Figure 14. Thermal Monitoring for D915GAV Board
