CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit. Failure to do
so may result in damage to the voltage regulator circuit. The processor voltage regulator area
(item A in Figure 29) can reach a temperature of up to 85
o C in an open chassis.

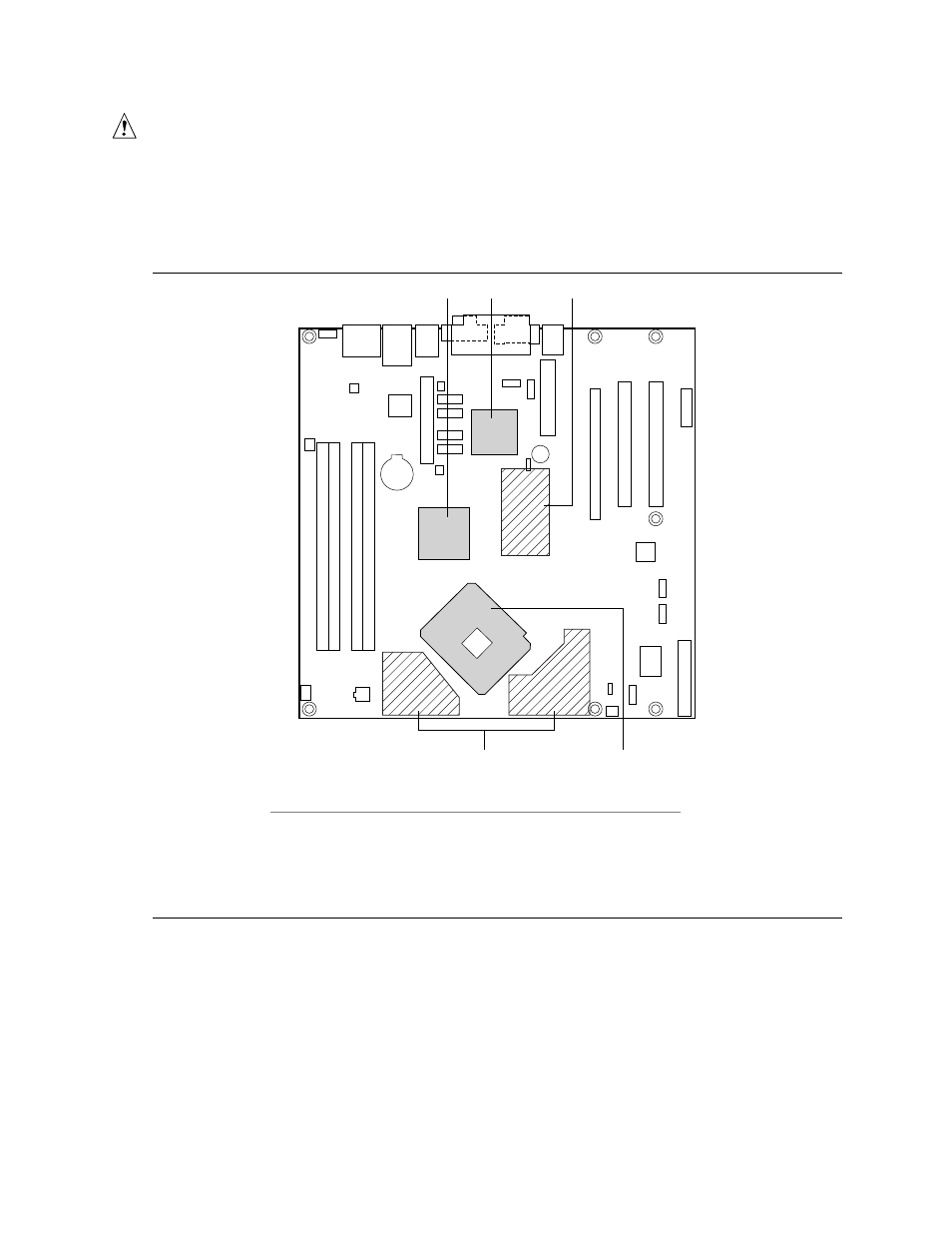

Figure 29 shows the locations of the localized high temperature zones.
OM17940
A C B
D E
Item Description
A Intel 82945G GMCH
B Intel 82801G ICH7
C 1.5 V core and front side bus voltage regulator areas
D Processor
E Processor voltage regulator area
Figure 29. Localized High Temperature Zones
