Technical Reference
55
2.8.1.2 Back Panel Connectors For 6-Channel (5.1) Audio Subsystem

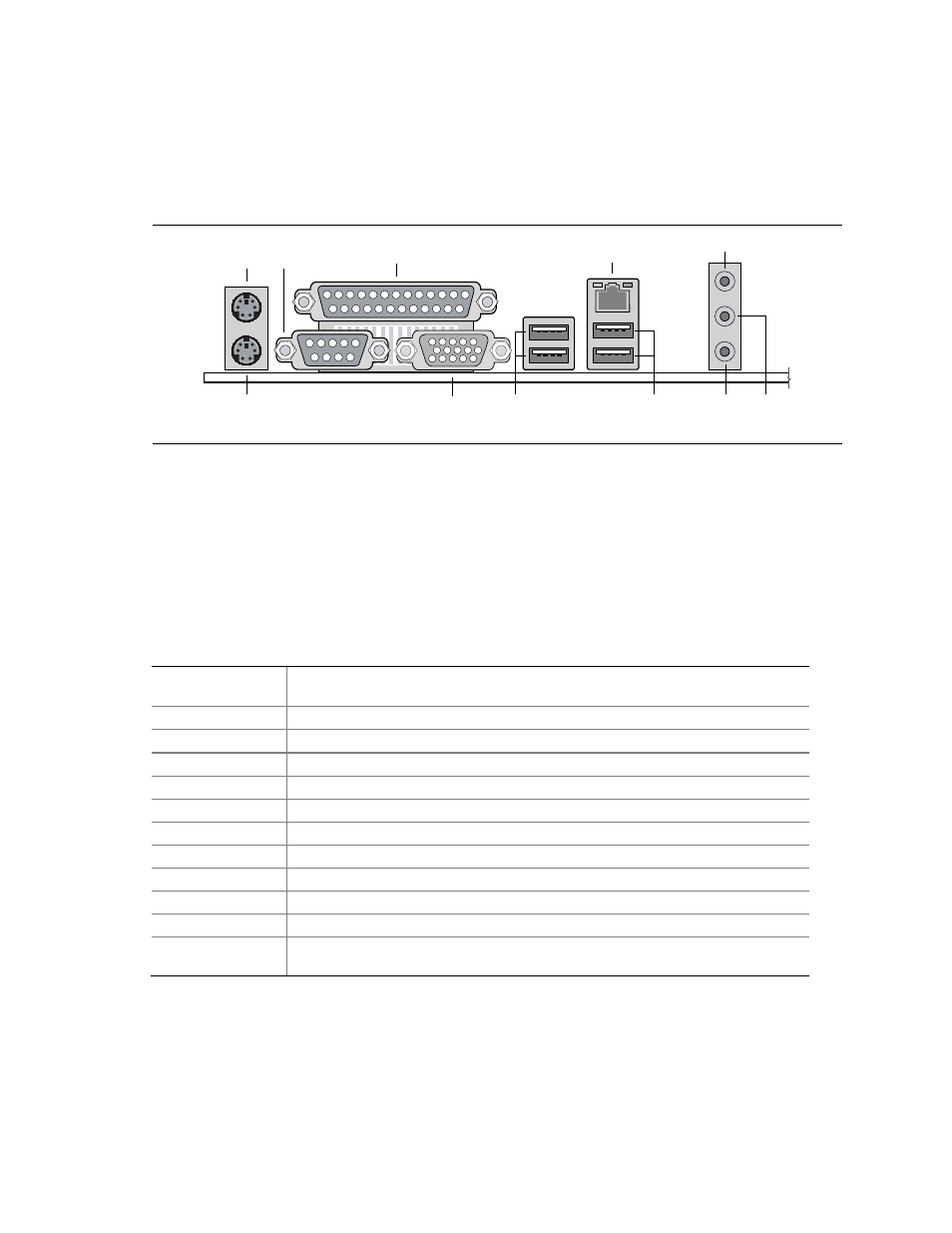

Figure 19 shows the location of the back panel connectors for boards equipped with the 6-channel
(5.1) audio subsystem. The back panel connectors are color-coded. The figure legend (Table 17)
lists the colors used (when applicable).
OM17559
A
C
G
D
F
H
B
J
K
I
E
Figure 19. Back Panel Connectors for 6-Channel (5.1) Audio Subsystem
Table 17 lists the back panel connectors identified in Figure 19.
NOTE
The back panel audio line out connector is designed to power headphones or amplified speakers
only. Poor audio quality occurs if passive (non-amplified) speakers are connected to this output.
Table 17. Back Panel Connectors Shown in Figure 19
Item/callout from
Figure 19
Description
A
PS/2 mouse port [Green]
B
PS/2 keyboard port [Purple]
C
Serial port A [Teal]
D
Parallel port [Burgundy]
E
VGA port
F
USB ports (two)
G
LAN
H
USB ports (two)
I
Audio line in/Retasking Jack [Blue]
J
Mic in/Retasking Jack [Pink]
K
Front left/right channel audio out/Two channel audio line out/Retasking Jack
[Lime green]
