Technical Reference
65
2.10 Mechanical Considerations
2.10.1 Form Factor

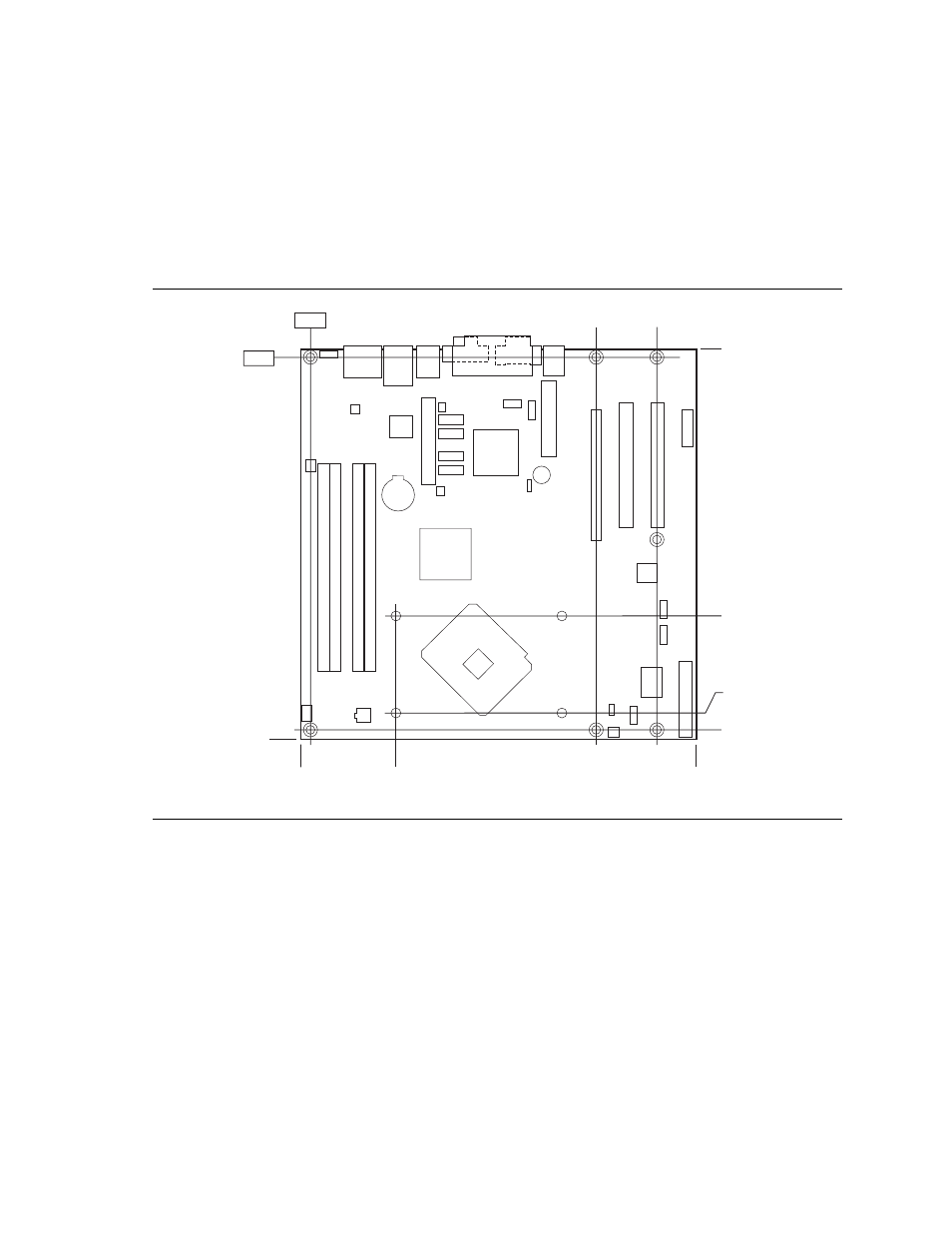

The board is designed to fit into a BTX-form-factor chassis. Figure 25 illustrates the mechanical
form factor of the board. Dimensions are given in inches [millimeters]. The outer dimensions are
10.40 inches by 10.50 inches [264.16 millimeters by 266.70 millimeters].
OM17938
10.250
[260.36]
9.150
[232.41]
10.000
[254.00]
0.00
7.550
[191.77]
2.275
[57.79]
10.200
[259.08]
0.200
[5.08]
10.000
[254.00]
0.250
[6.35]
9.550
[242.57]
0.00
Figure 25. Board Dimensions
