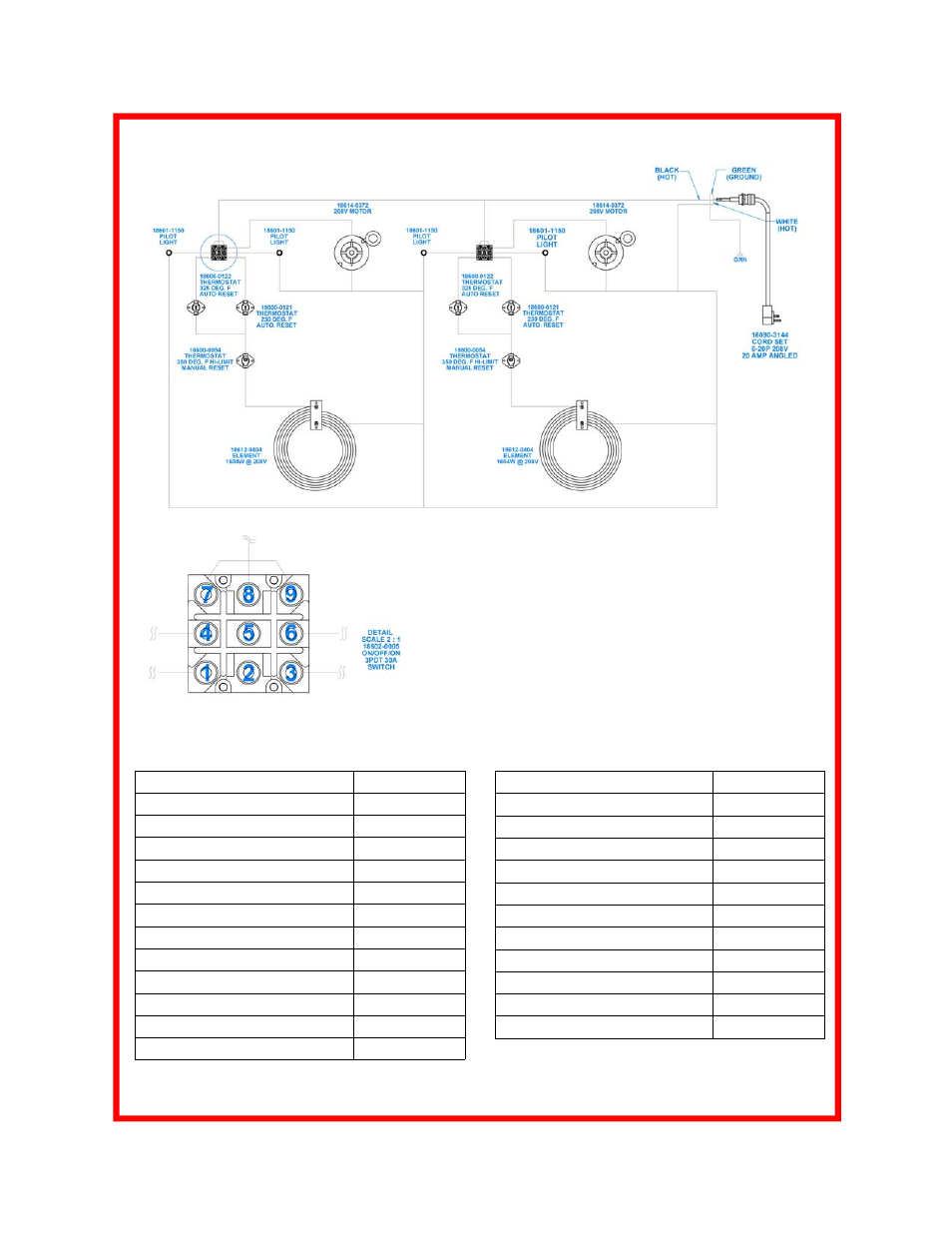

WIRING DIAGRAM-PBH2S
PBH2S
DESCRIPTION PART NUMBER
1/2” x 31.75” lowerator rod 16050-0319
Lowerator guide assembly 16095-3102
Guard washer 16503-7841
Tension spring 18400-2015
Pulley wheel 18617-0489
Braided S.S. pulley cable 18605-6030
Cord set, 6-20P angled 16090-3144
Push handle assy. 16095-3013
Lid assy. 16095-3526
Cord wrap bracket 16505-2199
Service panel 16505-5721
Extruded aluminum bumper frame 17030-0566
DESCRIPTION PART NUMBER
Bumper, red vinyl 17030-05568V
Snap disc 350°F manual reset 18600-0054
Snap disc 225°F auto reset 18600-0121
Snap disc 325°F auto reset 18600-0122
Light, 250V red pilot 18601-1150
Element, 2135w at 240v 18612-0404
Fan wheel 18614-0345
Motor, 208v/240v 18614-0372
Caster, 5” red performa w/brake 18301-5288
Switch, 30A, 3-way toggle 18602-0005
Caster, 5” red performa w/o brake 18301-5287
REPLACEMENT PARTS
