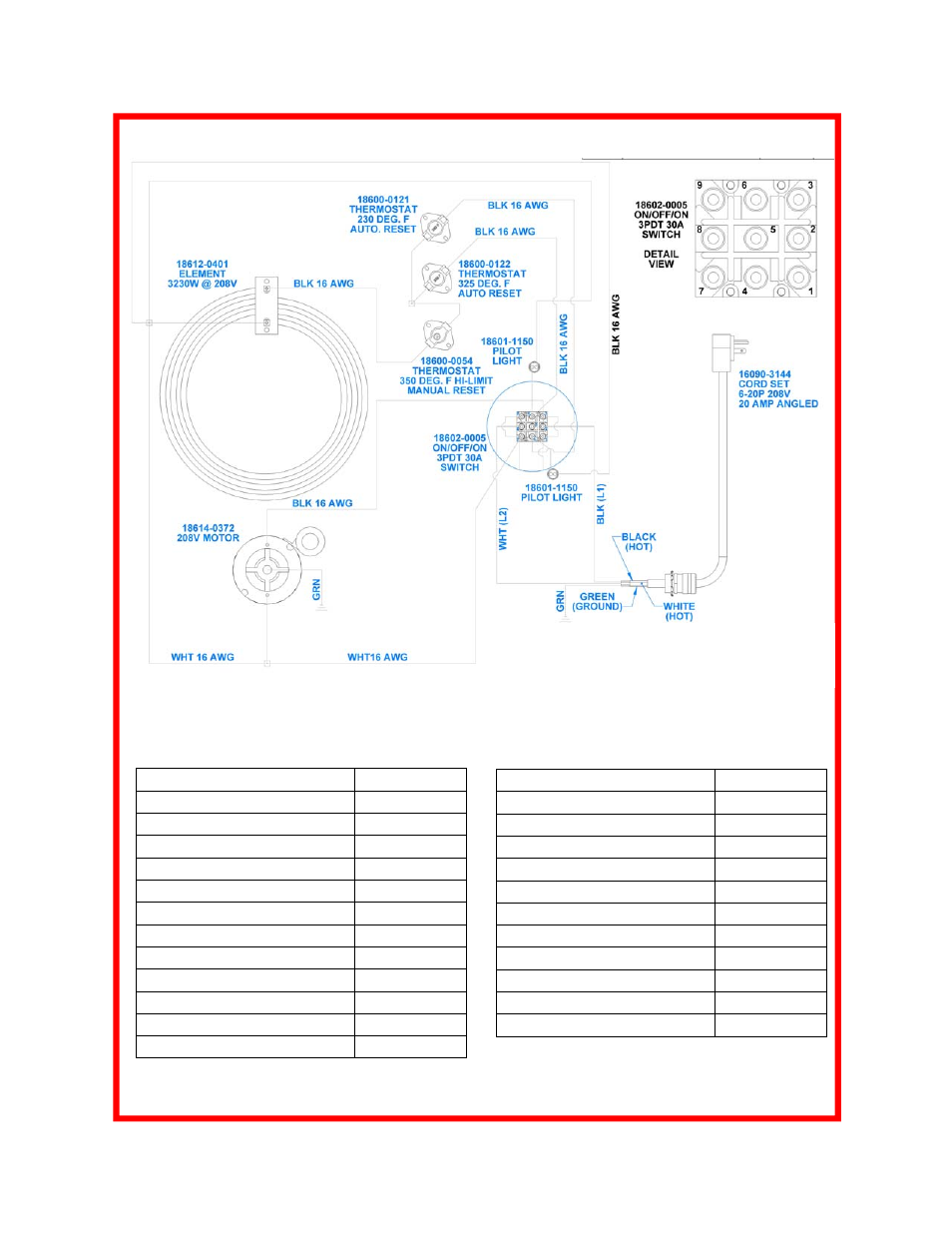

WIRING DIAGRAM-PH2S & BHS MODELS
DESCRIPTION PART
NUMBER
1/2” x 31.75” lowerator rod
16050-0319
Lowerator guide assembly
16095-3102
Guard washer
16503-7841
Tension spring
18400-2015
Pulley wheel
18617-0489
Braided S.S. pulley cable
18605-6030
Cord set, 6-20P angled
16090-3144
Push handle assy.
16095-3013
Lid assy.
16095-3526
Cord wrap bracket
16505-2199
Service panel
16505-5721
Extruded aluminum bumper frame
17030-0566
BH2S & PH2S Models
DESCRIPTION PART
NUMBER
Bumper, red vinyl
17030-05568V
Snap disc 350°F manual reset
18600-0054
Snap disc 225°F auto reset
18600-0121
Snap disc 325°F auto reset
18600-0122
Light, 250V red pilot
18601-1150
Element, 4300w at 240V; 3230 at 208V
18612-0401
Fan wheel
18614-0345
Motor, 208v/240v
18614-0372
Caster, 3.5” red performa w/brake
18301-0006
Switch, 30A, 3-way toggle
18602-0005
Caster, 3.5” red performa w/o brake
18301-0007
