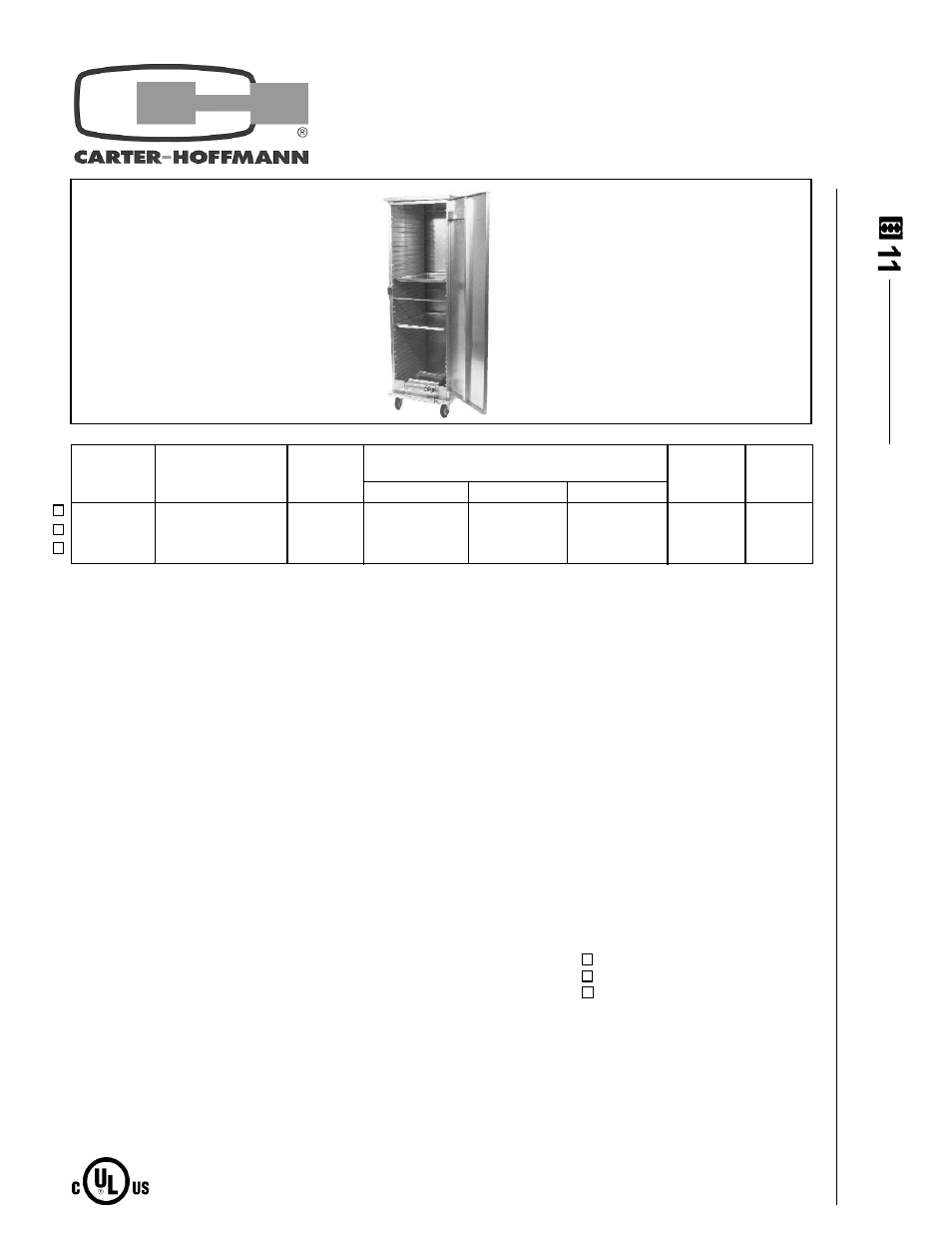

E8600H Series (Heated)
ALUMINUM TRANSPORT & STORAGE CARTS
Non-Insulated Aluminum with Angle Slides for 18”x26” Sheet pans
CONSTRUCTION...Straight line modular
styling with all seams hemmed-in for
added strength & durability. Heavy
gauge aluminum construction is heli-arc
welded to form solid unit. Reinforced with
horizontal stabilizing bar and welded-on
top, corner & bottom reinforcements. Side
panels have heli-arc welded interlocking
inverted “V”s.
CABINET MATERIAL...Entire cabinet
constructed heavy gauge aluminum. Top
constructed of inner and outer panel,
each constructed of .063” aluminum and
heli-arc welded into solid piece. Back
constructed of .080” thick aluminum,
brake formed into “C” type section to join
near uprights with extra middle
reinforcements. Sides constructed of
.075” thick extruded aluminum panels
with interlocking, heli-arc welded “V”
seams.
BASE FRAME...Constructed of .190”
thick aluminum brake formed and heli-arc
welded into solid piece. Entire base
frame, bolster pads and supports are heli-
arc welded.
UPRIGHTS... Constructed of 1”x1”x.125”
thick extruded aluminum channels.
Uprights are heli-arc welded to base and
top of cabinet.
CASTERS...5” diameter polyurethane
tread casters with Delrin sleeve axle
bearing and full ball bearing swivel,
plated mounted and bolted to frame.
DOOR...Single panel construction .090”
thick aluminum with all sides hemmed in
and heli-arc welded.
LATCH...Flush mounted heavy duty
stainless steel sliding latch for positive
closure.
HINGES...Heavy-duty stainless steel
hinges with 270 degree swing. Top and
bottom hinges are integrally mounted to
cabinet to keep door square.
TRAY SLIDES...Horizontal, .100”
aluminum tray slides fixed on 1-1/2”
centers.
HEATING SYSTEM... Stainless steel
construction. Lift out type. Entire unit
removable without the use of tools. 1600
watt inconel-sheathed heating element.
High impedance protected, internally
cooled fan motor with self-lubricating
bearing. Adjustable full range thermostat
and power indicating light. Ten foot 16/3
appliance cord with 3-prong grounding
plug. Front mounted bracket served as
cord wrap and lift-out handle.
PERFORMANCE... Capable of heating to
200
o
F (93
o
C). Preheat time to 160
o
F
(71
o
C), approximately 20 minutes.
ELECTRICAL CHARACTERISTICS...
Operates on 120 volts, 60 cycle, single
phase, 1650 watts, 13.7 amps. Ten foot,
3 wire rubber cord with 3 pring grounding
plug. NEMA 5-15P.
ACCESSORIES/OPTIONS...
Full perimeter bumper
Corner bumpers
Swing door catch
CARTER-HOFFMANN
1551 McCormick Ave., Mundelein, IL 60060
(847) 362-5500 • (800) 323-9793 • Fax (847) 367-8981
www.carter-hoffmann.com
Model
Capacity
Inside
Overall Dimensions
Caster
Shipping
Number
18”x26” Trays
Working
Height
Depth
Width
Diameter
Weight
1-1/2” Spacing
Height
in
mm
in
mm
in
mm
in
mm
lbs
kgs
E8623H
18
27
3/
4
45
3/
8
1153
30
762
23
3/
4
603
5
127
131
59
E8631H
26
39
3/
4
57
3/
8
1457
30
762
23
3/
4
603
5
127
141
64
E8639H
34
51
3/
4
69
3/
4
1762
30
762
23
3/
4
603
5
127
151
68
*Standard capacity fixed on 1-1/2” centers.
FOOD SER
VICE EQUIPMENT
ALUNINUM UTILITY
CABINETS
CAR
TER-HOFFMANN
Specifications subject to change through product improvement & innovation.
