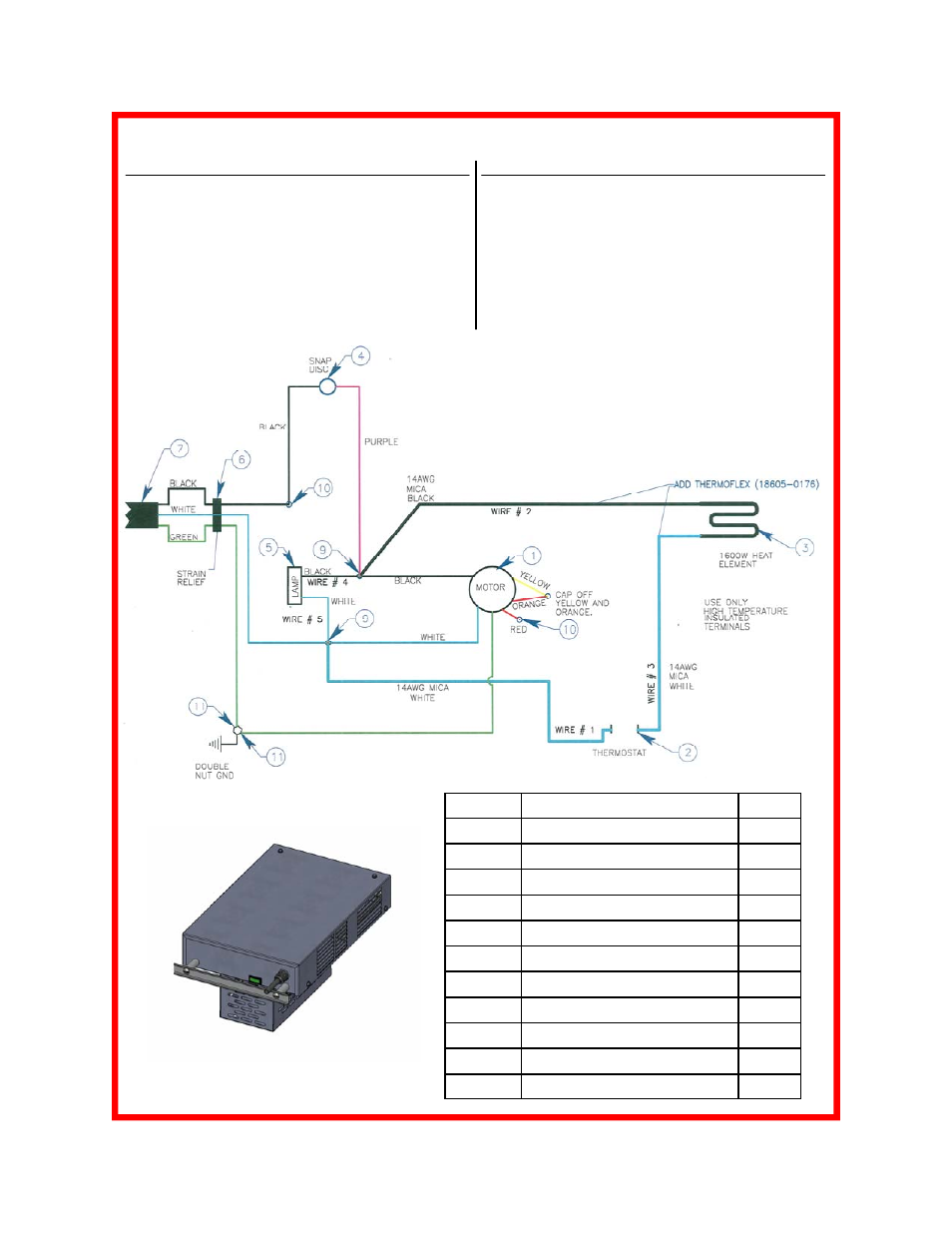

REPLACEMENT PARTS & WIRING DIAGRAMS
FH90Y HEATER COMPONENTS 208V, 1400W, 7.0A
Part Number Description
18600-0016 Thermostat
(255
°F)
18600-0053
Thermostat snap disc (400
°F)
18601-1185 Indicator lamp (green)
18605-0030
16/3 HSJO cord
18606-0624
NEMA L6-15P 250 volt twist lock plug
18612-0405
208 volt, 1400w heating element
18614-0304 Inlet
ring
18614-0306 Housing
Item Number
Description
Qty
1
120/208/220/230/240 50/60 Hz Motor
1
2 Regulating
Thermostat
1
3
230v 2400w Tubular Heat Element
1
4 Snap
Disc
1
5 Indicator
Lamp
1
6 Strain
relief
1
7
Power Supply Cord
1
8 Splice
Cap
5
9
Splice Cap Copper
5
10 Splice
Cap
2
11
High Temp Eyelet
2
Part Number Description
18614-0360 Motor
115/230
volt
18614-0321 Fan
blade
18617-0007 Cord
grip
16502-5631 Aluminum
handle
18617-0850 Handle
spacer
