When connecting the recirculator to two chambers, use the tubing and fittings in the
CRSYKIT accessory to make the appropriate connections. The water supply to both
chambers should be connected with the ¼” wye fitting and ¼” OD black tubing. The
water drain from both chambers shou
ld be connected with the 3/8” wye or 3/8” T
fitting (whichever allows for a smoother flow of the tubing to prevent vertical rises or
traps)
and 3/8” blue tubing. A gravity drain must be maintained from both chambers
into the recirculator.

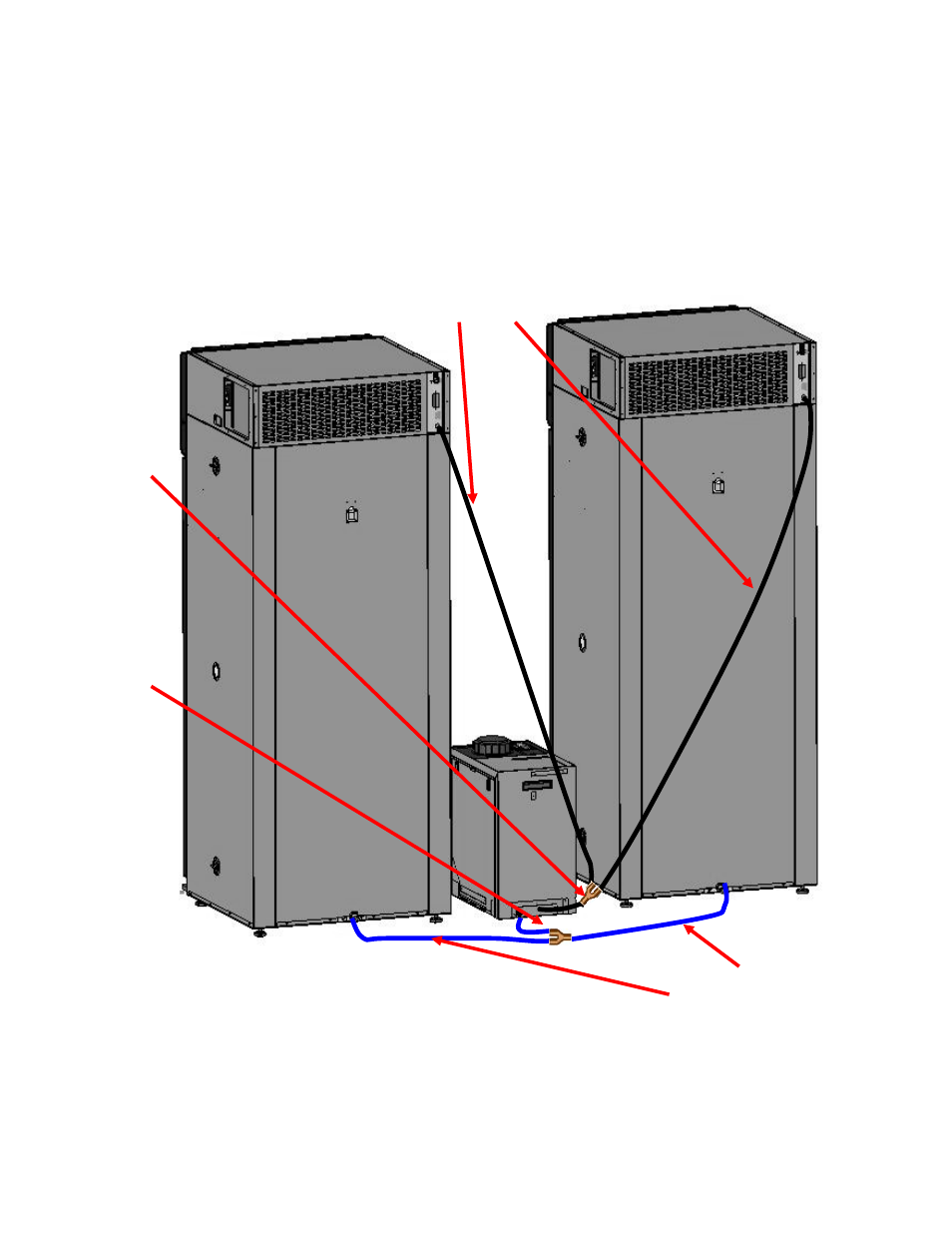

Example of connecting recirculator to two chambers (model 6030 shown)
with CRSYKIT.
Chamber Water Supply,
¼” OD Black Tubing
¼” Wye
Fitting
(smaller)
Chamber Drain, 3/8” OD
Blue Tubing
3/8” Wye
Fitting
(larger)
