C.B.S. Scientific WSGE-014 - Manual (Page 13)

Flexicast instructions
version 5/2011
13
WGT-1408
WGT-1412
WGT-1416
WGT-1420
8cm
2.6cm
3.0cm
3.0cm
2.6cm
12cm
20cm
16cm

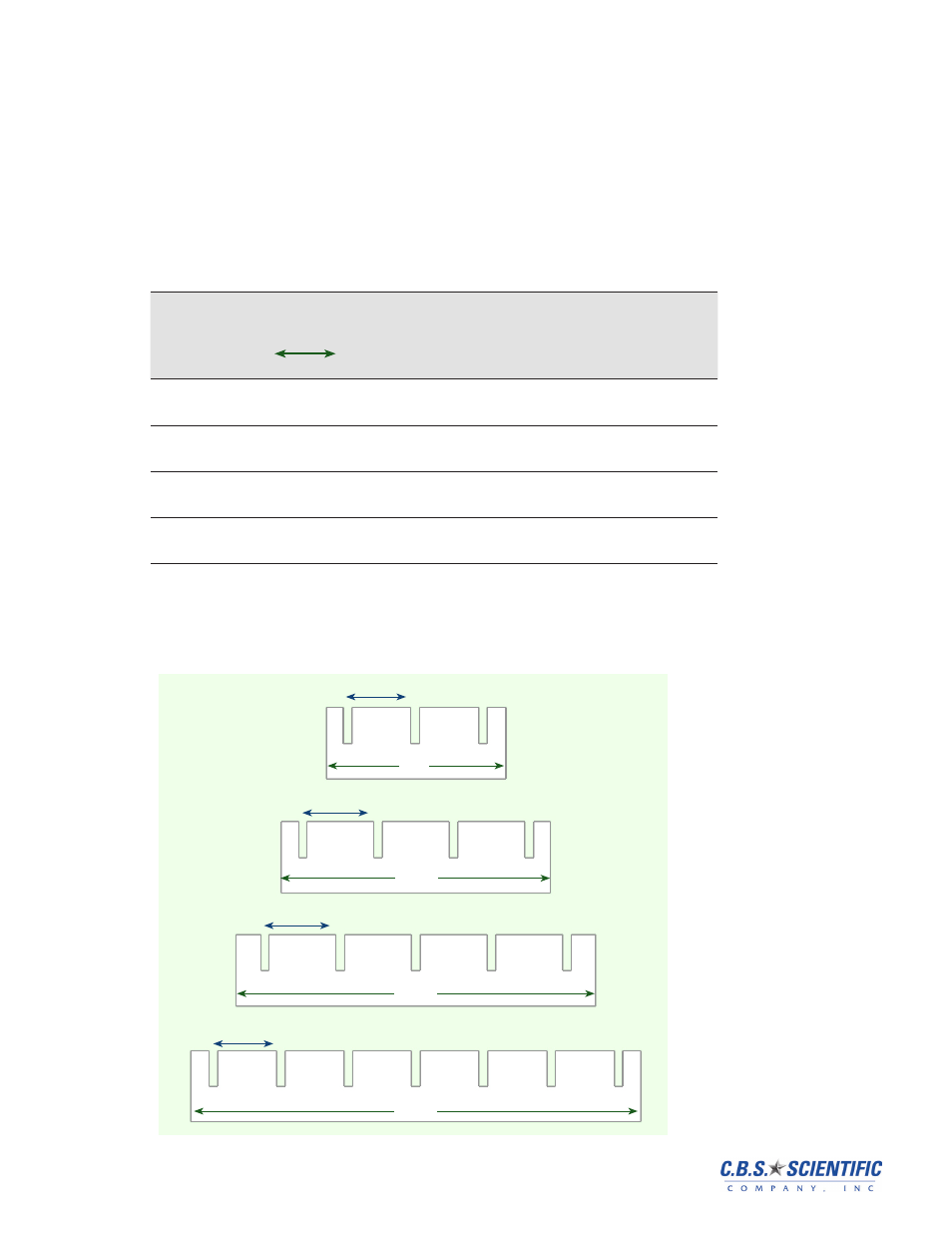

Gel Tray Profiles
* the agarose required was calculated using a gel thickness of 0.5cm
Gel Tray
Cat. #
Gel Tray
Length
# of
slots
maximum
number of
samples
pathlength/
slot
Agarose
solution
required *
WGT-1408 8cm 2 54 2.6cm 50 ml
WGT-1412 12cm 3 81 3.0cm 75 ml
WGT-1416 16cm 4 108 3.0cm 100 ml
WGT-1420 20cm 6 162 2.6cm 162 ml
Gel Tray Specifications
• UV transparent acrylic, 6.4mm thick
• grooves in gel tray corners create agarose anchors to prevent gel
flotation during electrophoresis.
• Gel tray configuration allows single run or multiple simultaneous
short runs.
3.8 Gel Tray Profiles and Specifications
