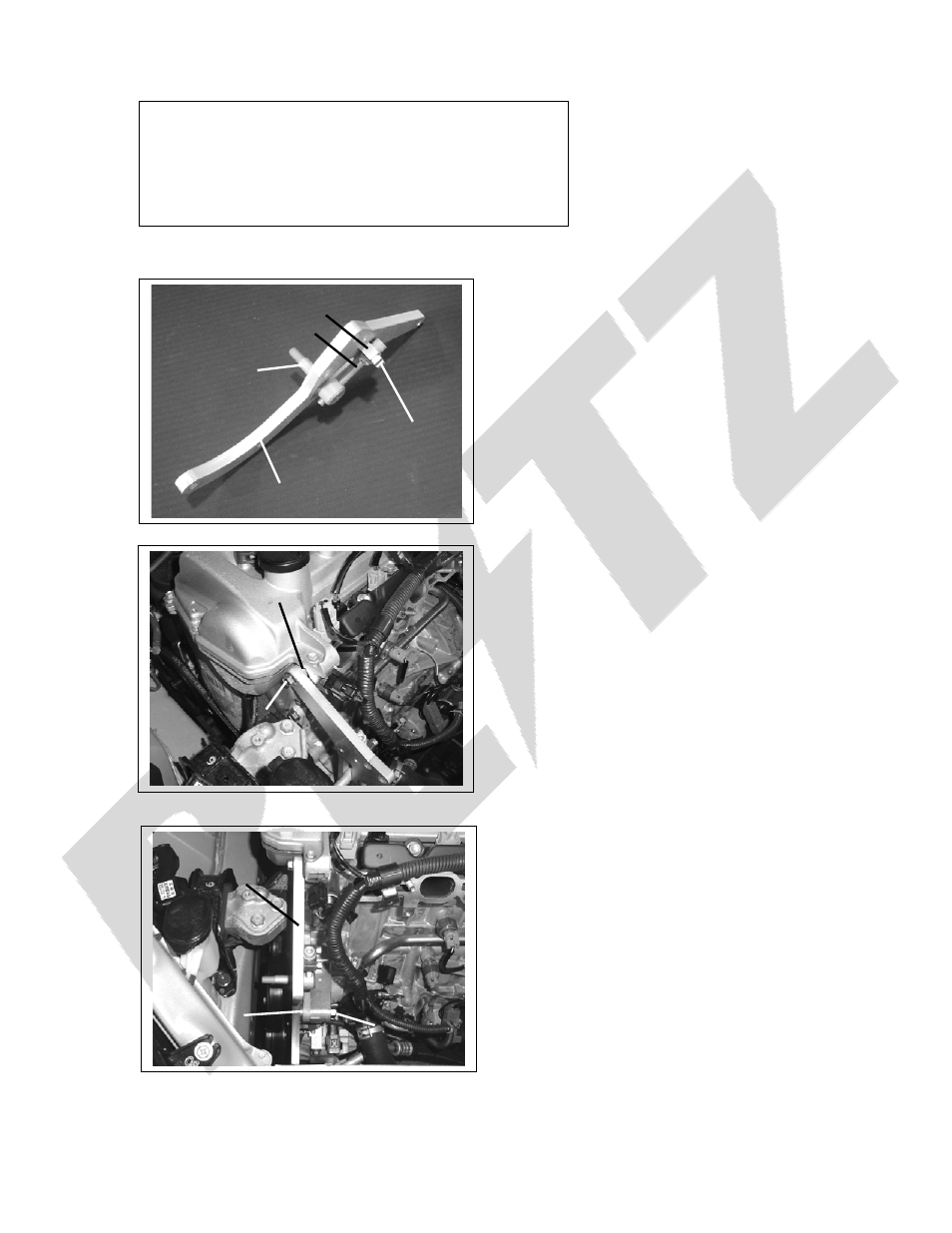

(6) Manifold and compressor mounting

Note: Torque Specification

Ｍ６

7.38 Lbs/Inch

Ｍ８

13.6 Lbs/Inch

Ｍ１０

25.8 Lbs/Inch

1. Using #7. bracket, assemble tensioner as
illustrated. Attach adjuster bolt to #12
tensioner bolt. Attach #8 bracket with #13
adjuster bolt and secure bracket with

⑨

Allen

bolt (2).

2. Use#16 (Bracket Spacer A), Attach # 7
tensioner bracket using the

⑤

bolt.

*Hint: Leave a little play on the assembly so it

will make installation step #23 easier.

8. Tensioner - bracket
Ｂ

12. Tensioner

bolt

⑨

Allen bolt (2)

7. Tensioner bracket A

7. Tensioner -
bracket A

17. Bracket
spacer B

⑧Bolt

⑮Washer

16. Bracket Spacer A
Ａ

⑤ Bolt

3. Using

⑧

head bolt (1),

⑮

washer (1),

and #17 Bracket Spacer B -- attach the #7
bracket as shown in illustration.
