Hot Food Deli Case Installation
14
Case Divider Glass
A Divider Glass is typically installed between a self-service case with reach-in front glass and a full
service case with full front glass. The Divider Glass is installed on the full service case side of the joint.
1. Mount the Upper Glass Retainer by first removing the outer (2) retaining screws from the canopy
heater reflector on the end of the deli case the Divider Glass is being installed. Insert the screws
through the outer set of holes in the Upper Glass Retainer (see Figure 6) and attach the Upper
Glass Retainer to the canopy.
2. Place the Lower Glass Retainer in position against the inside of the counter end wall on the end
of the deli case the Divider Glass is being installed. The side of the Lower Glass Retainer with (2)
vertical walls is placed against the counter end wall.
3. Apply a bead of silicone sealant inside the Counter End Joint Cover and slide the cover over both
counter end walls and the Lower Glass Retainer. Apply a bead of silicone sealant to seal the
open front of the Counter End Joint Cover.
4. Slide Divider Glass in place through the Upper and Lower Glass Retainers.

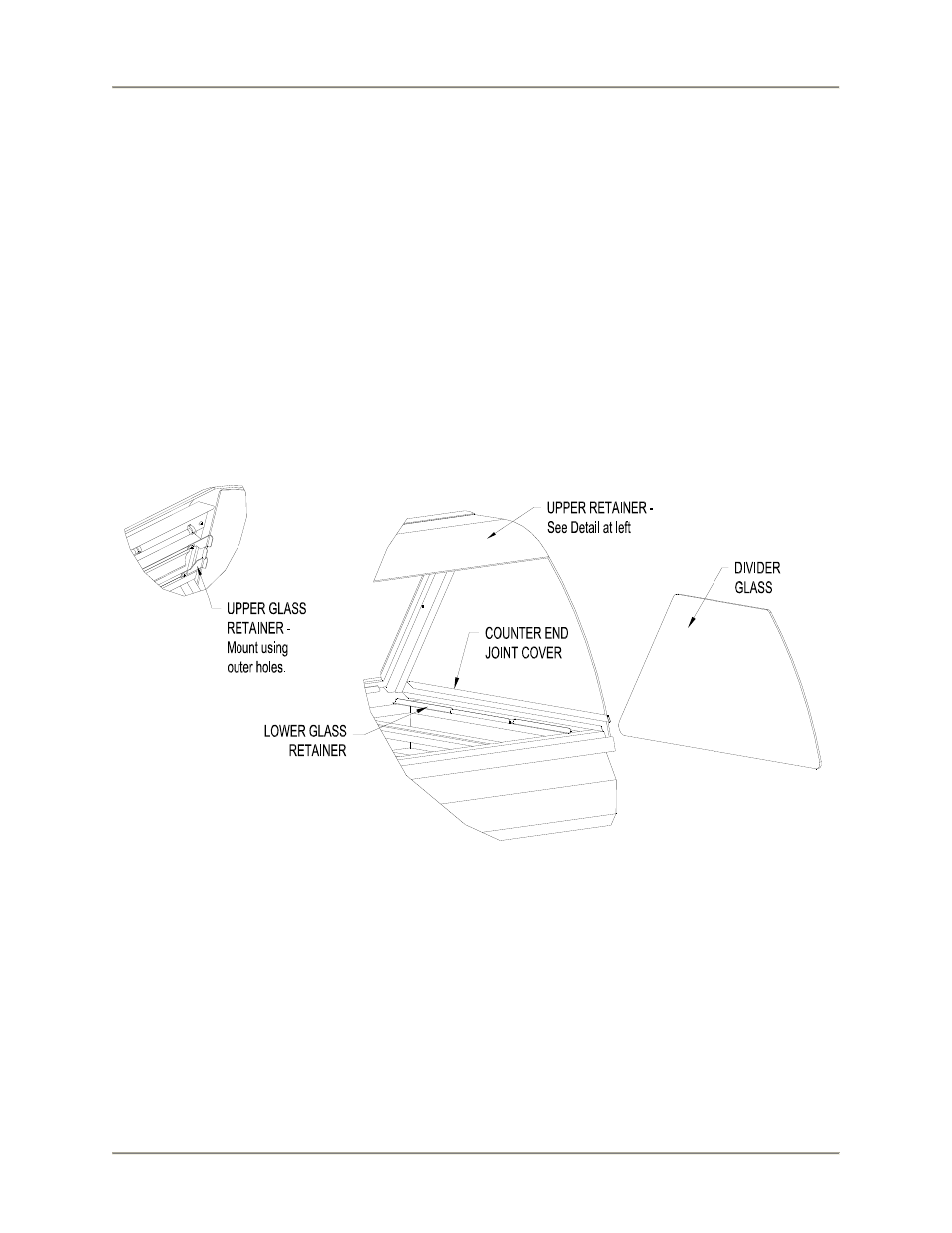

Figure 5. Divider Glass Installation
