Hot Food Deli Case Installation
11
9. This unit is designed to be sealed to the floor after it is installed – to conform to NSF Standard 4.
Use Dow Corning RTV # 732 Multi-purpose Sealant or equivalent silicone sealant to seal the Kick
Plates to the floor around the full perimeter of the case.
End Panel Mounting
Attach the End Panels to the ends of the case(s) as shown in Figure 2 using the shoulder screws
provided. For Glass End Panels only, slide the plastic bushings provided over the shoulder screws
before inserting the screw into the glass panel. Be careful that the screws do not bind in the holes in
the glass panel.

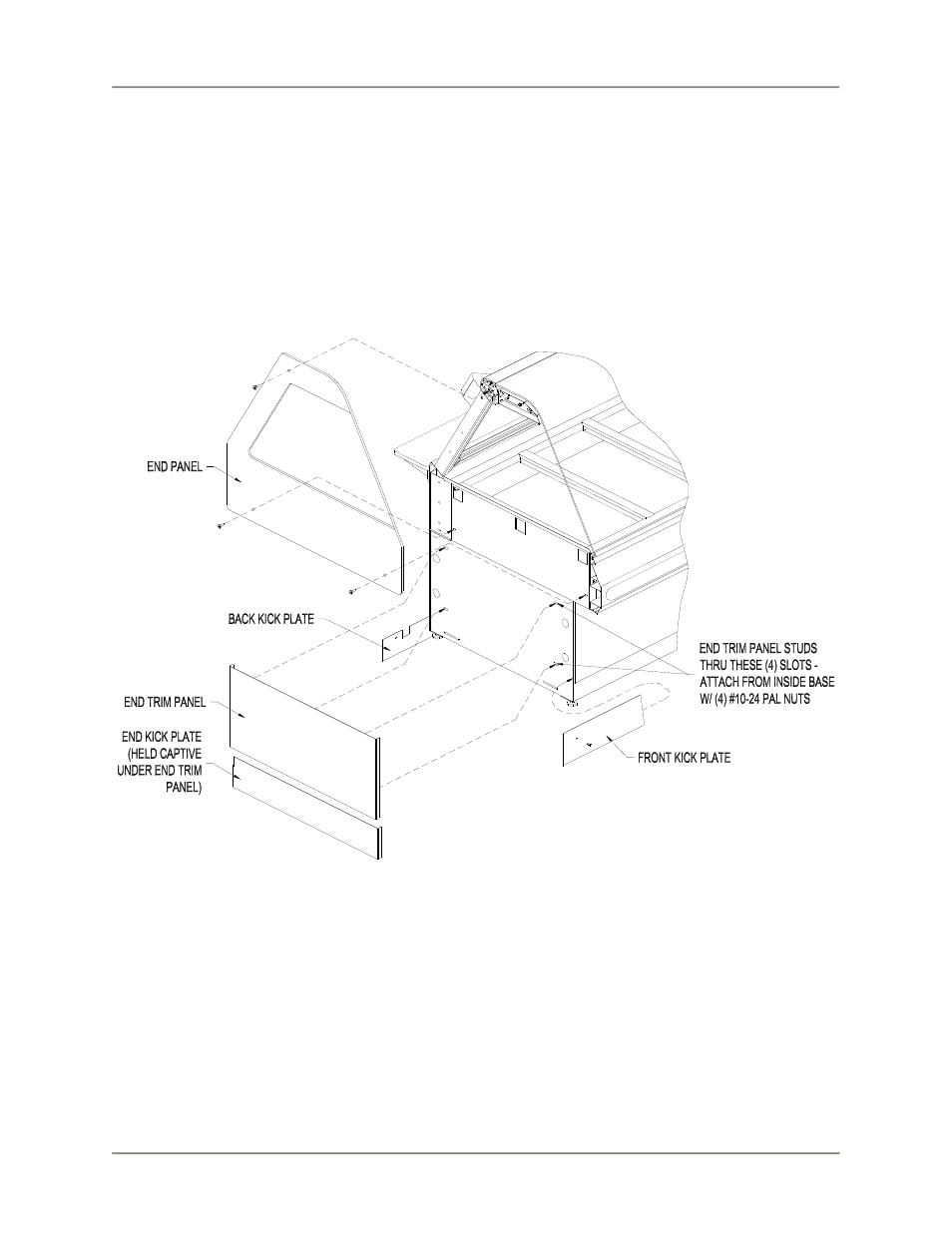

Figure 2. Floor Model - End Kick Plate & End Panel Mounting
