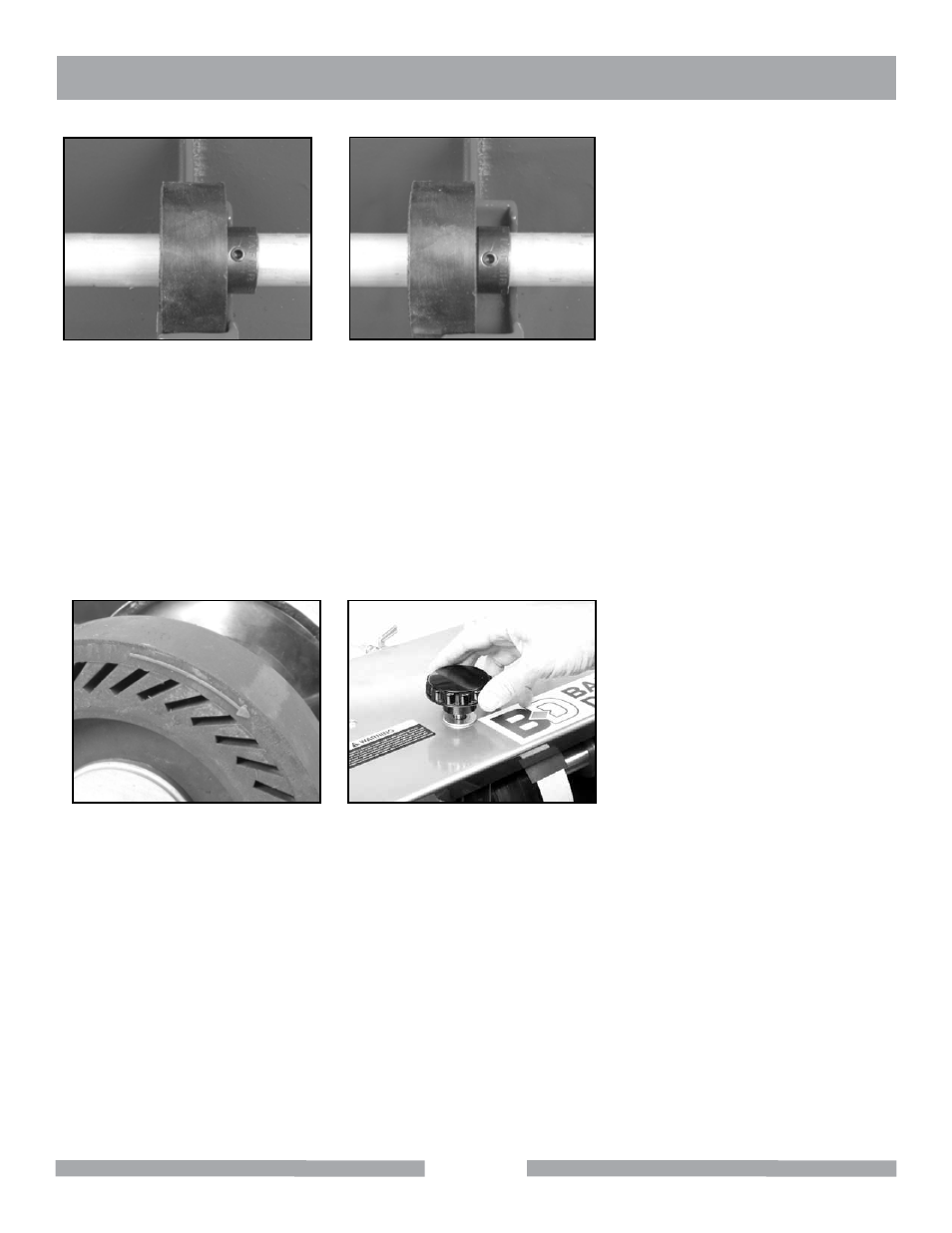

Fig 35 - Bearing correctly seated Fig 36 - Bearing incorrectly seated
Fig 37 - Arrow on drum indicates
direction of rotation
Fig 38 - GP8 Unscrew the Cabmaker
5. When installing the shaft assembly back in the GP-8 Super Cabmaker, make sure the rubber mounted
bearings are centered in the bearing seat (Fig 35 & 36). If the bearings are not centered in the bearing
seats make sure the aluminum spacers are in the correct order and that the bearings and arbor collars are
properly installed.
6. Install the sanding drum with arrow of rotation facing direction of rotation (Fig 37).
7. Make sure grinding wheel and drum bushings are installed.
8. Remount arbor assembly in gate reservoir, tighten coupling set screws, close hood and retighten the two
locking knobs (Fig 38).
SUPER CABMAKER GP8 MAINTENANCE
