SHAFT REASSEMBLY
Reassembly of the shaft with the new diamond wheels is the reverse of the disassembly instructions. Please
keep the following points in mind when reassembling:
1. Install diamond wheels with the inside faces facing each other (Fig 28 & 29). Be sure the diamond wheel
bushings are installed.
2. The bearings have a permanently mounted bushing that extends from one side of the center bearing. This
extension must face away from the diamond wheels (Fig 30 & 31) on both ends of the arbor shaft.
3. The arbor shaft collars have one recessed side and one flat side (Fig 32 & 33). The recessed side should
face the bearing and mate against the extended portion of the bearing bushing.
4. There should be a flange installed on both sides of each diamond wheel and the expandable drum. Make
sure the concave side of the flange (Fig 34) faces the wheels and drum.

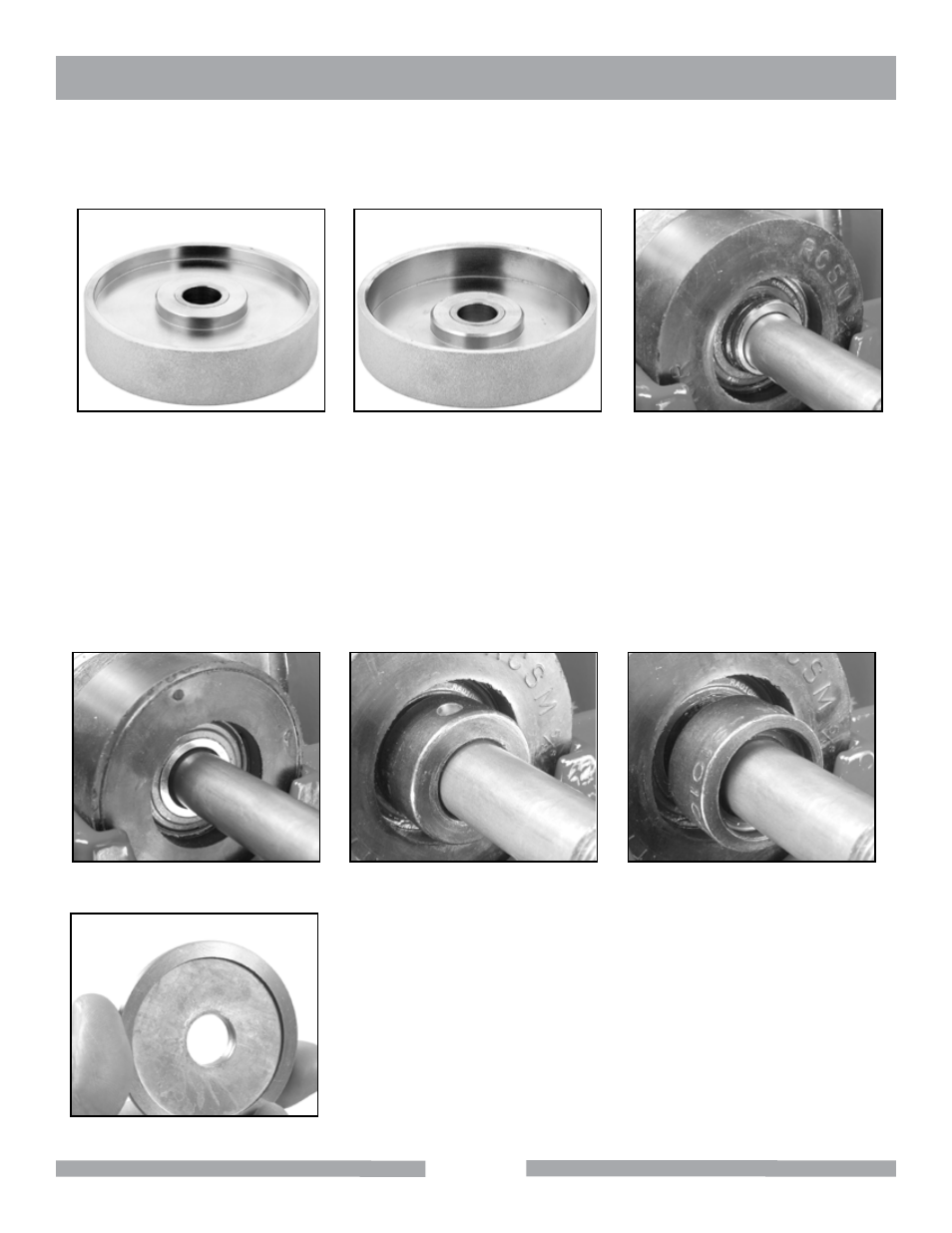

Fig 28 - Outside face of diamond
wheel
Fig 29 - Inside face of diamond Fig 30 - Bearing correctly installed
Fig 31 - Bearing incorrectly installed Fig 32 - Bearing collar correctly
installed
Fig 33 - Bearing collar incorrectly
installed
Fig 34 - Concave side of flange
