Rev. A3, 10/08

AGV-1000

7

Automation Products Group, Inc.

APG...Providing tailored solutions for measurement applications

Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

6.70"

8.00"

2.94"

7.00"

1.75"

6.00"

0.25"

1

.8

2

5

"

1

.7

0

"

3.375"

3.00"

0.1875"

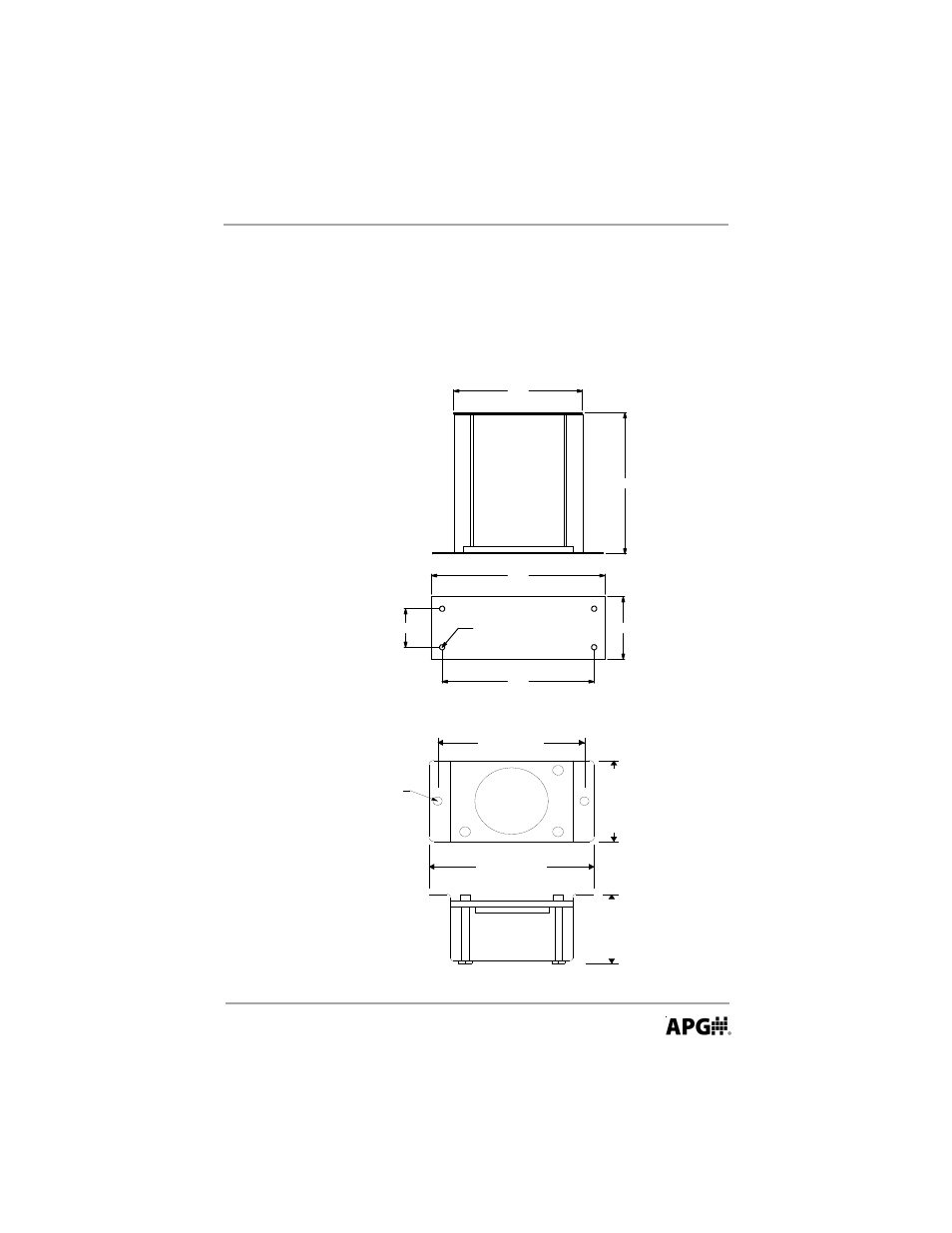

• Mounting

The AGV-1000 utilizes thru-hole type mounting for the controller and the

transducer assemblies. See the drawings below for the mounting hole
dimensions and spacing.

NOTE: Drawings not shown to scale.

Controller Housing

Transducer Bracket
