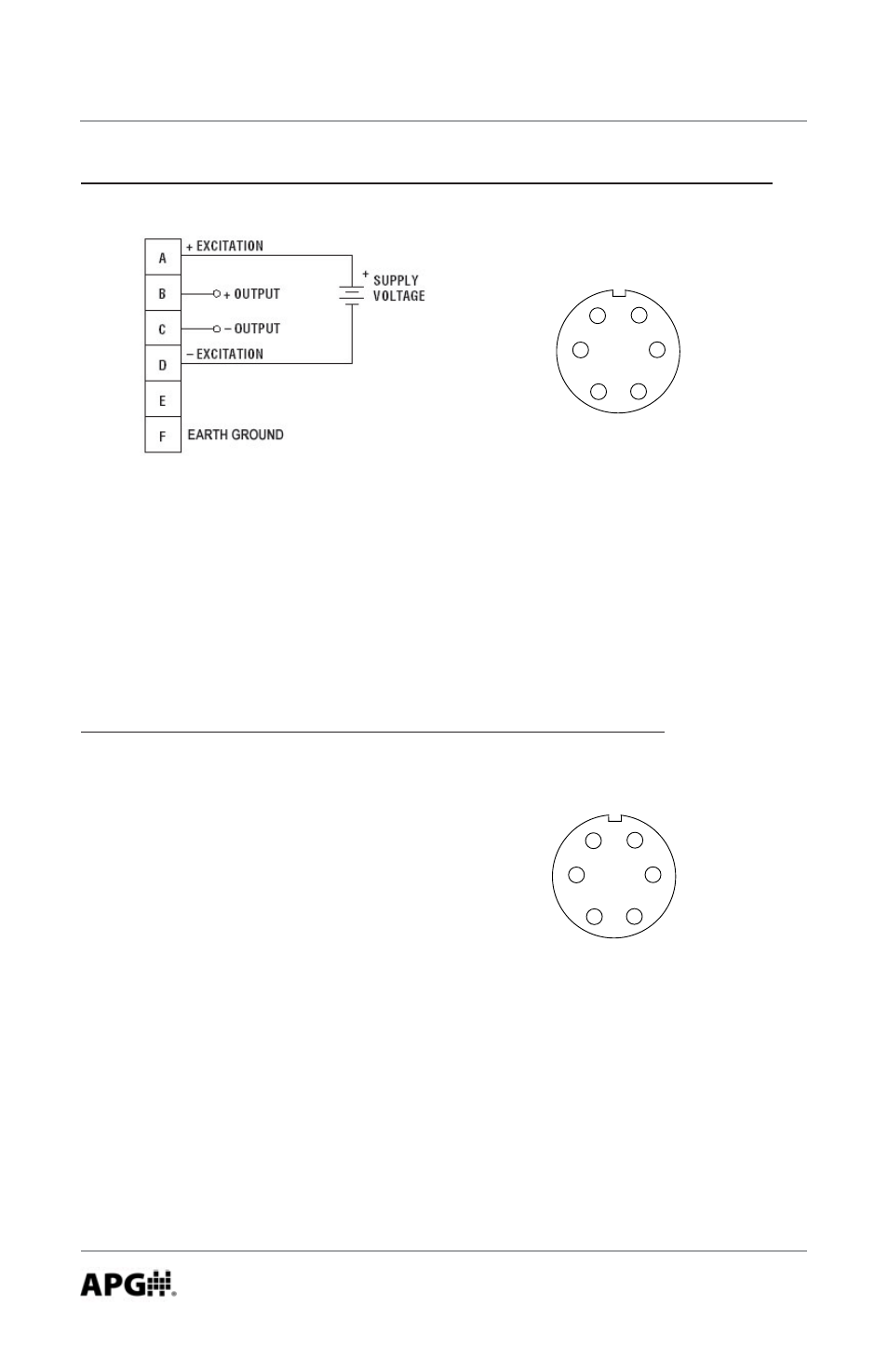

Externally powered with 0-5 VDC or 0-2 VDC analog output:
A F
B E
C D
6 Pin Connector
NOTE: Completion of the earth ground (Pin F) is recommended for proper
circuit protection.
Externally powered with Trip Point Relay Outputs:
A F
B E
C D
6 Pin Connector
A = Excitation +
B = Excitation -
C = Output 1 (T1)
D = Output 1 (T1)
E = Output 2 (T2)
F = Output 2 (T2)
NOTE: Output 1 corresponds to T1 on the LCD display, while Output 2
corresponds to T2.
