Anchor CENTURY 100 & 120 WIDE User Manual
Page 8
8
100’ x 100’ Century (40’ Mid)
100’ x 90’ Century (30’ Mid)
ROYAL BLUE
FIELD #7
LILAC
FIELD #8
ROYAL BLUE
FIELD #7
STRIP

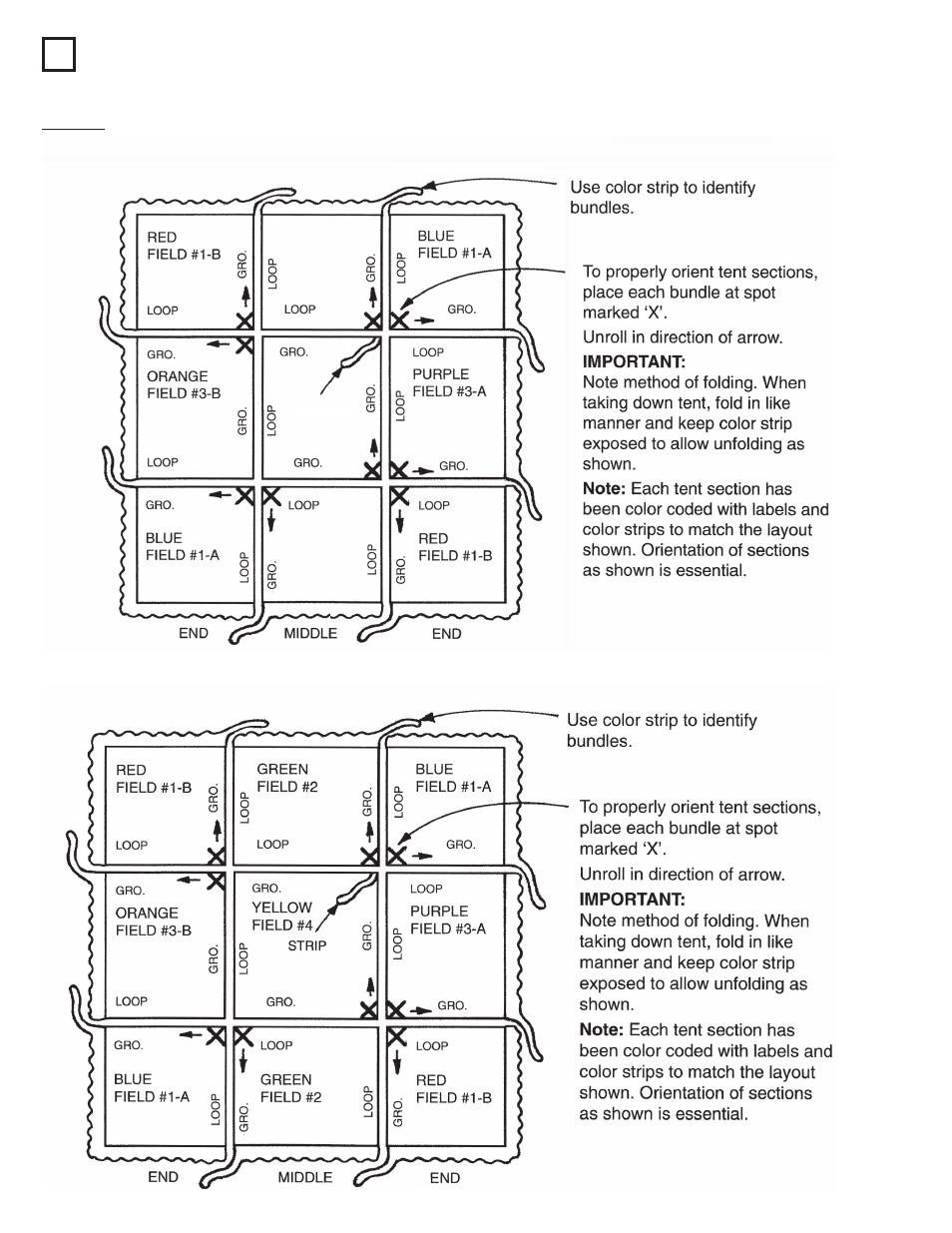

TENT SECTION LAYOUTS
2
Spread drop cloths. Properly orient tent sections by placing bundles at spots marked “X” and unroll in the direction of the
arrows on the following diagrams.
Caution: Any objects with sharp projections which must remain on site under the tent should be padded and taped.
