11

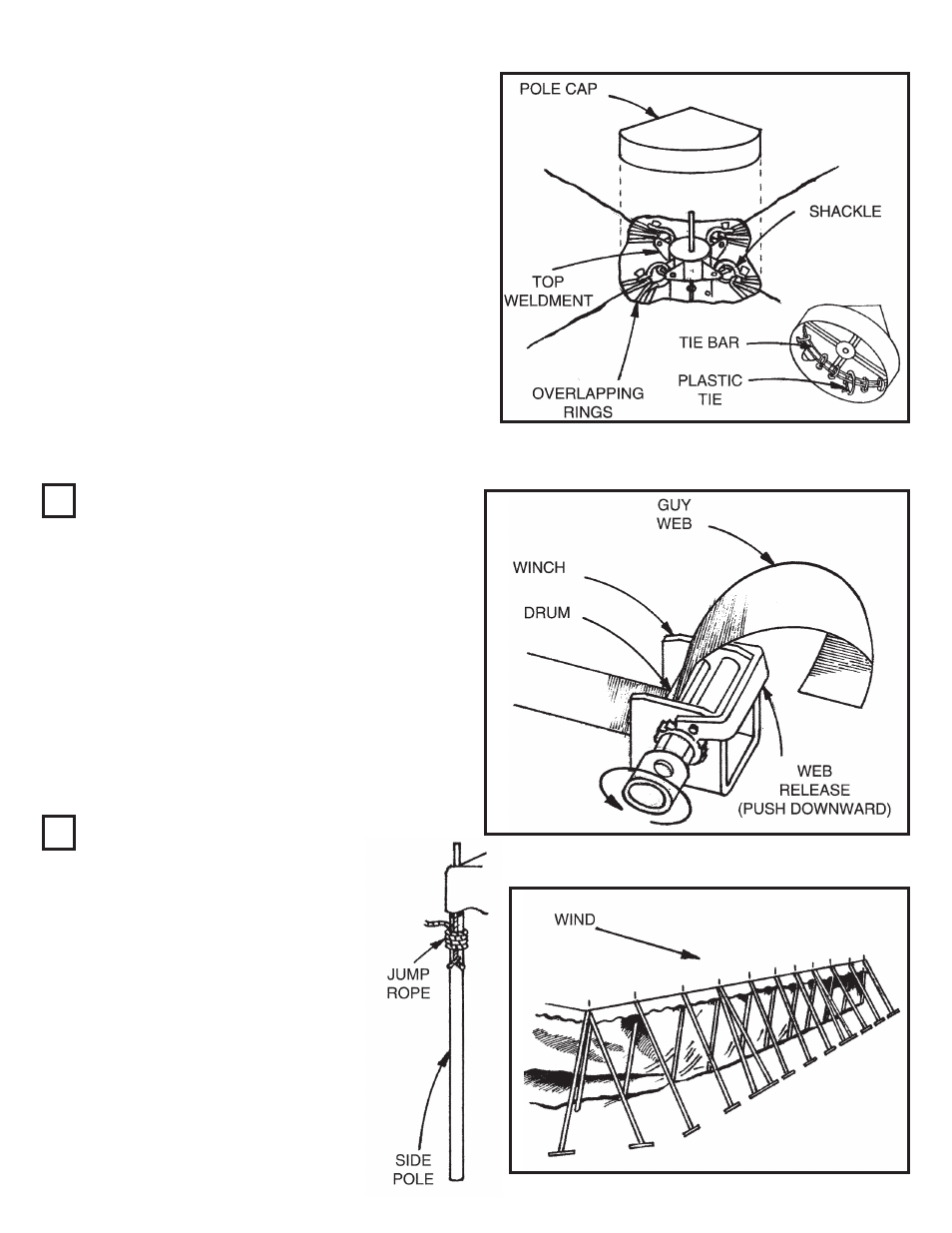

Set top weldment in center pole hole and connect to over-
lapping rings with shackles provided.
Place assembled pole cap over pipe of top weldment. At-
tach hinge pin to pipe extending through top of pole cap.
Rotate pole cap to align holes in pipes.
Note:
Pole cap assembly is illustrated on a separate sheet packed
with fabric top.
Alternate for Optional 8” Center Pole
attach with
hitch pin
Web to Winch
Start at side opposite wind. Insert each side
pole pin into side pole hole and raise slightly
less than perpendicular. Bottom of each pole
should be pointed inward toward center of
tent.
Wall ropes are to be outside of corner and
side pole.
Tie jump rope around each side pole as it is
inserted in pole hole.
Continue around tent.
Insert guy web loosely into slot in winch drum, approximate-
ly 4’-0” for 8’-0” side pole and 1’-6” for 10’-0” side pole.
Rotate drum 1 1/2 to 2 times to secure web.
Repeat at all guy web locations.
Raise Side Poles
5
6
