Anchor MODULES 30’, 40’ AND 60’ WIDE SYSTEMS - Manual (Page 3)

With tent sections on the ground, overlap the center
pole hole with the grommet side on top. At the center
pole locations with overlapping holes, place the pipe
through the holes and attach flanges at both ends.
Pipe flanges are furnished at each laced center pole
hole location.
3

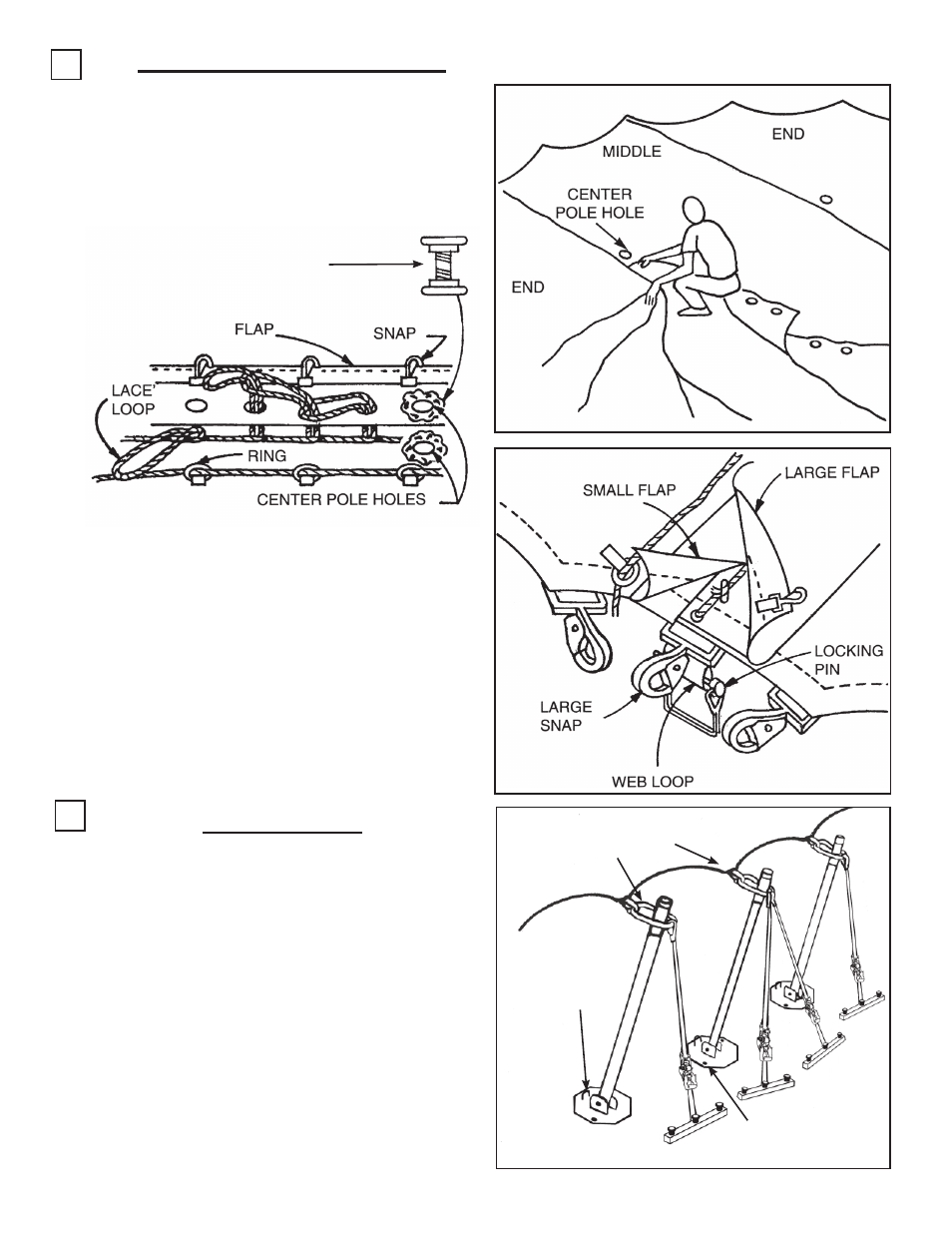

LACING INSTRUCTIONS
For 60’ tent, lace from one center pole to the other.
Starting at the center pole hole, push the first loop
through corresponding grommet.
Continue the lacing process and cover the lacing
with the protective flaps and snap to the rope as
you move down the tent section.
Tie off the last long lacing loop.
Push the web loop through the opening on the
large snap and secure it with the locking pin.
Place assembled side poles around the perimeter
of the tent.
Start at downwind side. Snap the web guys and
tent to the side poles. Set up side poles with the
base plate at the marked location. Secure base-
plates with 10” nail stakes.
The bottom of the side poles should be pointed
inward toward the center of the tent. Continue with
each side pole around the perimeter of the tent.
SIDE POLES
WIND DIRECTION
LARGER END OF
RING TOWARD
INSIDE OF TENT
RING ON
BASEPLATE
TOWARD INSIDE
OF TENT
10” NAIL
STAKES THRU
BASE PLATES
4
3
PIPE & FLANGE
