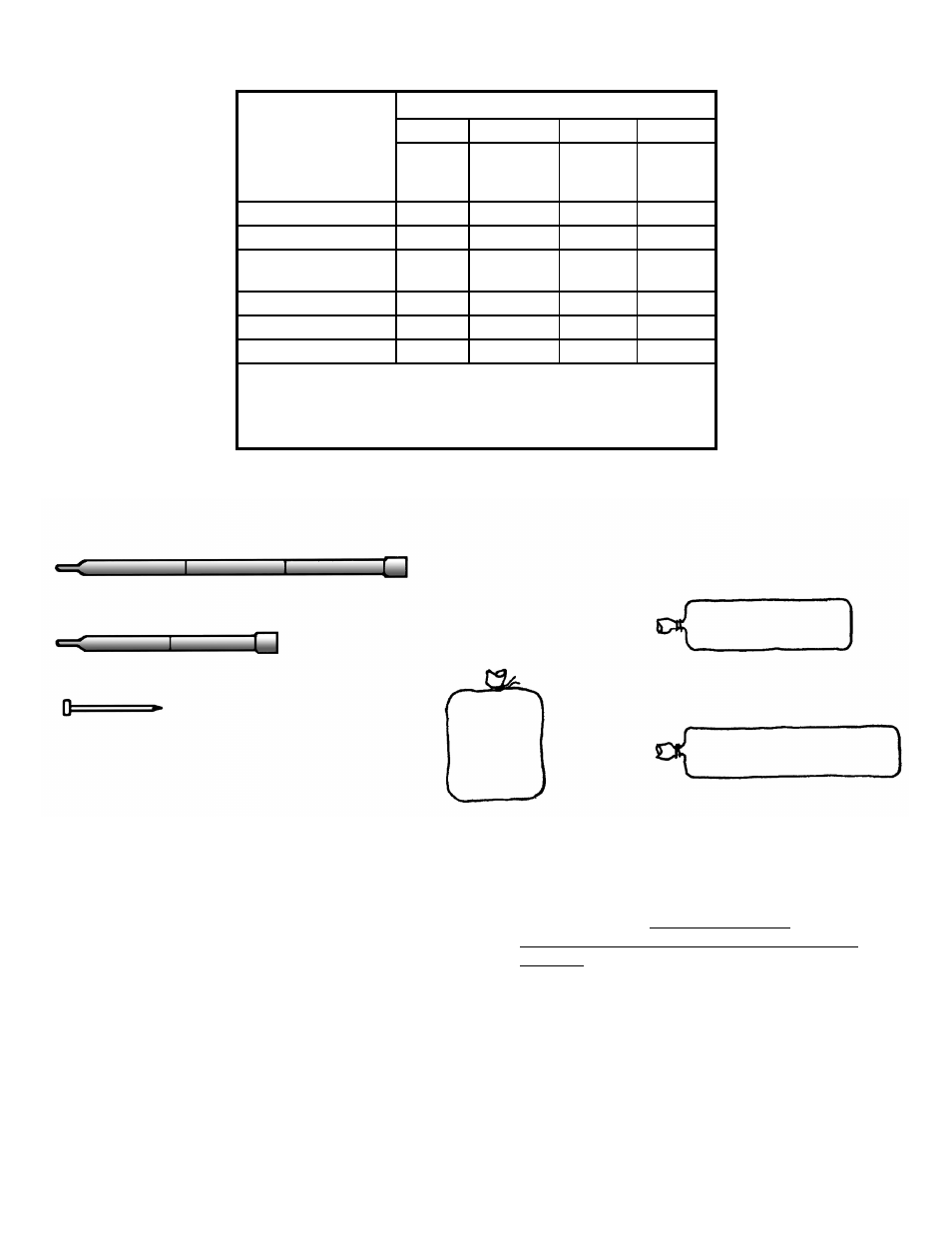

ALL PURPOSE CANOPY PARTS LIST
INSPECT SITE
CAUTION:
Consult your local utility locator service or the
National Utility Locating Contractors Association
(NULCA) prior to installation.
Prior to actual tent assembly, be sure to look up,
down, above & below for obstacles, pipes, wires,
trouble, etc.
LAYOUT &
CHECK
Use parts list for a quick identifi cation and check
list for proper quantities.
PARTS
CANOPY SIZE
10’ x 10’
12’ x 12’
THROUGH
20’ x 20’
20’ x 30’ 20’ x 40’
SIDE POLE 4 8 10 12
CENTER POLE 1 1 2 3
5/8” x 24” STEEL
STAKES
8
*
12
*
14
*
16
*
BAG WITH TOP 1 1 1 1
BAG FOR POLES 1 1 1 1
BAG FOR STAKES 1 1 1 1
*
IMPORTANT NOTE: REFER TO CAUTION STATEMENT #2 FOR IM-
PORTANT WARNING ABOUT NUMBER OF STAKES SUPPLIED. (SEE
BACK PAGE OF THIS MANUAL)
MANPOWER
REQUIRED
Two installers should be able to
assemble an All Purpose Canopy in
approximately thirty minutes.
TOOLS REQUIRED
Sledge Hammer
3 PC. CENTER
POLE
2 PC. SIDE POLE
5/8” x 24” STEEL STAKE BAG
WITH
TOP
BAG FOR STAKES
BAG WITH POLES
