Tent Fabric
Figure 2b
Streamer
Top pin with
hair pin cotter
inserted.
Peak Grommet
Caution: The Safety Pin Lock with safety
latch engaged as shown above (Figure
2c) must be used at the bottom of the
high peak tube assembly.

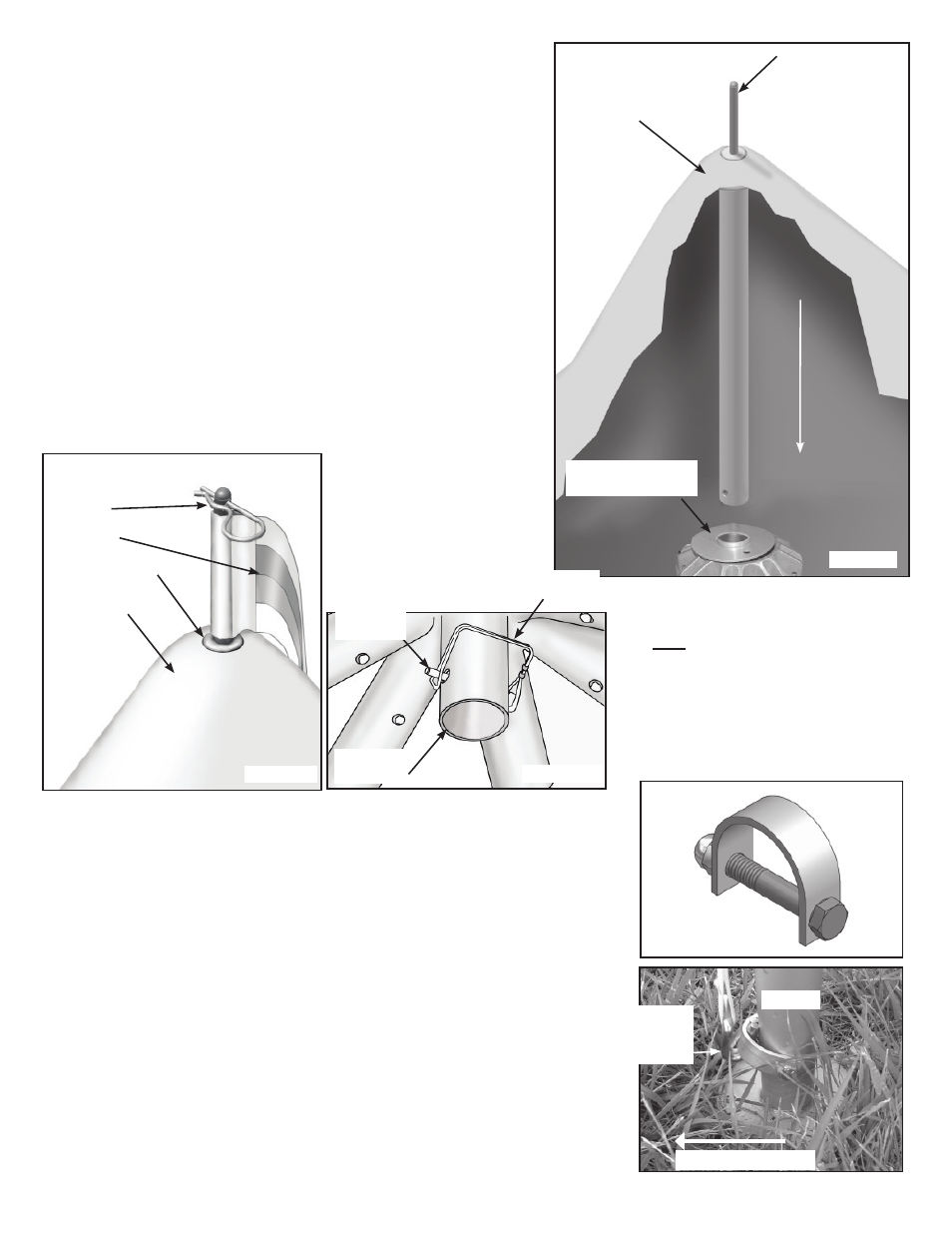

High peak tube assembly must be installed after spreading
fabric loosely over frame and before raising frame for assembly
of uprights, Push the top pin of the high peak tube assembly
through the grommet at the peak of the tent fabric. (Figure
2a) Raise the high peak tube assembly up until the bottom is
above the peak weldment. Slide the high peak tube assembly
down through the top of the peak weldment. Let it rest there on
the peak weldment.
Now you may place the streamer
on t he top pin and insert the
hair pin cotter to keep the streamer and fabric top in place.
(Figure 2b)
Now retrieve the safety pin lock, push the high peak tube
assembly up into position by aligning the holes of the peak
weldment with the top hole in the high peak tube. (other holes
are for adjustment as required.)Push the pin lock through the
holes and lock into place. (Figure 2c)
Step 2 - Installing Fiesta High Peak Tube
Assembly cont’d
Peak adapter
assembly on PTT
High Peak Tube
Assembly
Fabric broken away
for clarity
Figure 2a
Figure 2c
High Peak
Tube Assy
Safety
Latch
Safety Pin
Lock
Step 3 - Installing Upright Tension Connector
Before installing uprights, upright tension connector must be
attached to uprights.
Remove existing bolt at bottom of upright and set aside.
Remove bolt and cap nut from upright tension connector.
Align holes in upright tension connector with holes at bottom of
upright and attach with the bolt and cap nut that came with the
connector.
Connector must be positioned toward outside of frame because
it is used for attachment of tension strap used for tensioning
fabric to frame.
Upright Tension
Connector
To outside of frame
Tension strap
hooked to tension
connector.
Upright
