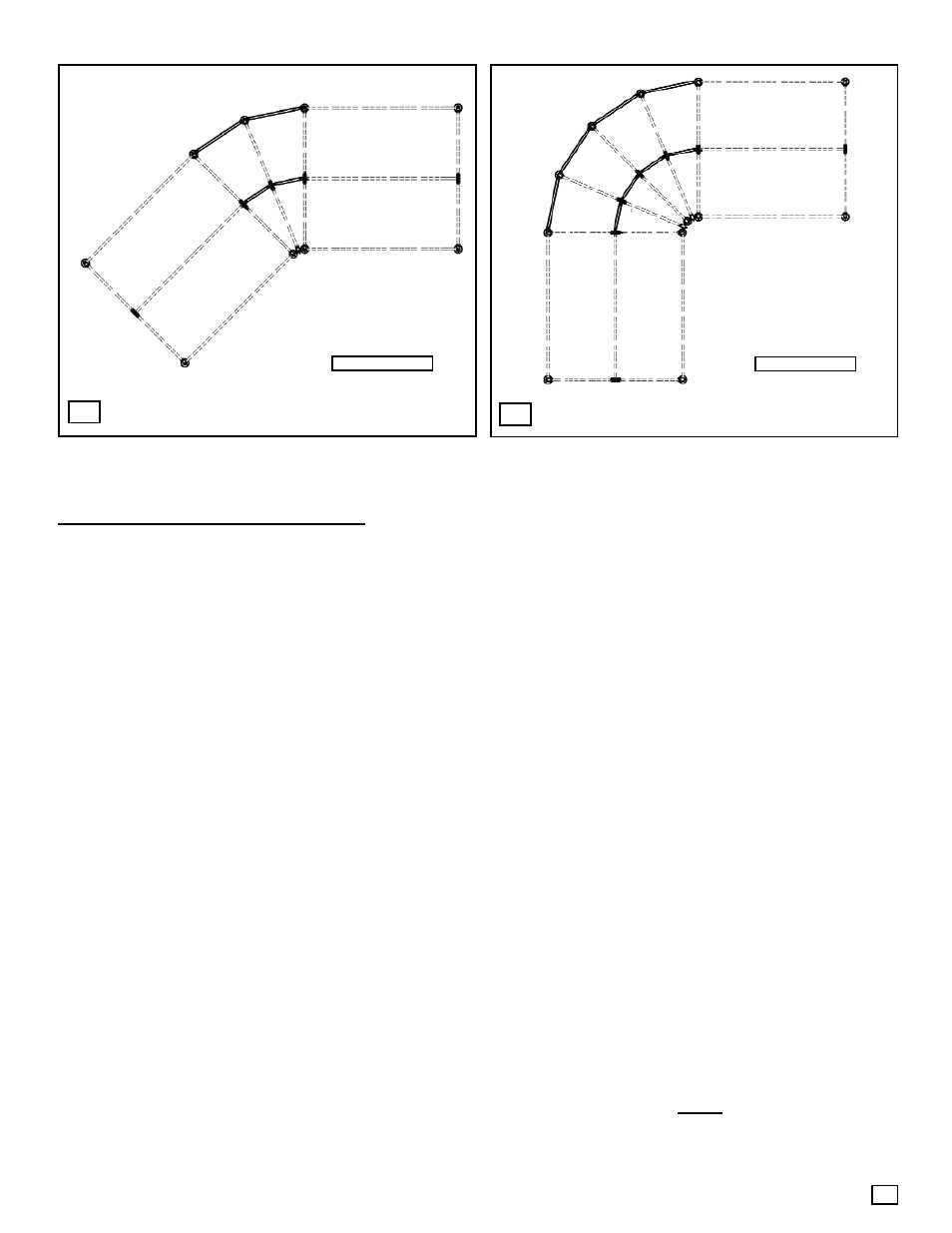

Please notice in the above overhead view of the 45 and 90 degree Fiesta Marquee Round Corner Kits that only the parts lettered
and identified here are actually included in this kit. All other parts, including all the rafters, eave bars, ridge bars, PTI’s, PTR’s and
uprights are assumed to be pre-owned or being purchased separately by the customer. Those standard Fiesta Marquee parts
are not included in this kit. (See Fig.2 for a layout of the parts that are included in the kits.)
10 11
45 Degree Kit #8085033 parts lettered A,B,C,D.
(Dotted lines are standard parts not in the kit)
90 Degree Kit #8085031 parts lettered A,B,C,D.
(Dotted lines are standard parts not in the kit)
Overhead View Overhead View
A-B-A
D
D
C
C
A
A
B
A-BBB-A
C
C
C
C
D
D
D
D
A
A
A
A
B
B
B
B
B
B A
A
B
Ridge Bar
Ridge Bar
Eave Bar
Eave Bar
Eave Bar
Eave Bar
OUTSIDE RADIUS
INSIDE RADIUS
OUTSIDE RADIUS
INSIDE RADIUS
Ridge Bar
Eave Bar
Eave Bar
Ridge Bar Eave Bar Eave Bar
All S
tandard Raf
ters (10)
All S
tandard Raf
ters (14)
1. Refer to the standard Fiesta Marquee Frame installation instructions and assemble (2) standard Fiesta Marquee units ( 9’ x 10’
frame unit). These units should be built without legs and be supported by the upright splices at the bottom of the PTI
castings at the four corners of each unit. Align (1) unit as required for your installation site. Position the other near the opposite
end of the intended radius (Fig 10 & 11).
2. Construct the inside radius using additional PTI’s with PTE Custom Castings “A” and Double PTE Welded Castings “B” as follows:
a. On the standard eave that will lead into the turn, pull the pin that secures the eave bar to the PTI, insert a PTE Custom
Casting into the PTI and the end of the eave bar, with the eye end facing the desired radius turn. On the shaft of the PTE
Custom Casting choose the pin hole that will position the eye tab horizontal to the ground and replace the pin to re-secure
the connection (Fig.5). Repeat this process for the other standard unit (Fig.7).
b. Into a second PTI, insert a Double PTE Welded Casting (see Fig.8), aligning the holes so that the eye ends will be hori-
zontal with the ground, and pin with the small PTI pin. If you are constructing a 45 degree turn, (1) PTI with the Double PTE
will be enough. If you are constructing the 90 degree turn, you will need to assemble (3) of these (Fig10 & 11).
c. Overlap the eye fittings of the inside radius casting and bolt together, using the 3/8” -16 x 1 1/2” Hex Hd Cap Screws with Nut
and washer (Fig.9).
3. Into the center PTI, Install a standard Fiesta Marquee rafter and pin it. The end PTI’s of the standard units should already have
rafters installed, from Step #1, above.
4. At the upper end of the rafter installed in Step #3, install a standard PTR (see standard Fiesta Marquee Instructions). Into this
PTR, install a Double PTE Welded Casting in the same way as it was installed into the PTI (Fig.8). Choose the Pin hole that
will result in the eye fittings being horizontal to the ground.
5. Into the PTR’s of the ridge at ends of each standard Marquee unit, remove the small pin, install PTE Custom Castings and replace
the pin, with the eyes horizontal to the ground.
6. Using (2) Eave/Ridge Bars “D”, connect the Double PTE in the ridge PTR of the radius rafters to the PTE Custom Castings in the
PTR’s of each standard Marquee unit. For 45 degree angles, adjust the position of the standard units as necessary to overlap
the PTE’s and bolt with a 3/8” -16 x 1 1/2” Hex Hd Cap Screw with Nut and Washer. If you are installing a 90 degree turn, repeat
steps 3 through 5 on (2) additional radius rafter assemblies, interconnecting each rafter with Eave/Ridge Bars “D”.
7. On the opposite side of the ridge, install additional standard rafters extending toward the outside radius of the angled framing.
8. On the opposite eave, construct the outside radius in the same manner as the inside radius (See step # 2, above), but develop
the needed spacing by installing an Eave Bar “C” between the eyes of the Custom PTE’s “A” of the standard units and the Double
PTE’s “B” of the radius rafter assemblies, and also between the Double PTE’s themselves of the radius rafter assemblies.
9. Install guy ropes to the eave fittings of the entire frame, but leave them slack, so as not to impede the later lifting of the frame.
10. Refer to the standard Fiesta Marquee Instructions and install the fabric tops to all units described above.
11. Lift the frames and insert legs under all PTI’s along the eave line of the standard units and the middle PTI of the radius sections.
12. Refer to the standard Fiesta Marquee Instructions and tighten all guy ropes to secure the unit.
INSTALLATION SEQUENCE AND GUIDELINES :
