FRAME QUANTITIES PER KIT

COMPONENT DESCRIPTION

DWG

LTR

INVENTORY #

45 Degree Turn

Kit # 8085033

90 Degree Turn

Kit # 8085031

PTE CASTING (CUSTOM)

A

8085034

6

6

DOUBLE PTE WELDED CASTING

B

8085035

3

9

EAVE BAR

C

varies with size

2

4

EAVE/ RIDGE BAR

D

varies with size

2

4

3/8”-16 x 1 1/2” Hex Hd Cap Screw, Grd 5, zinc

3023220

10

20

3/8”-16 Hex Nut, zinc

3024340

10

20

3/8” Lock Washer, zinc

3025330

10

20

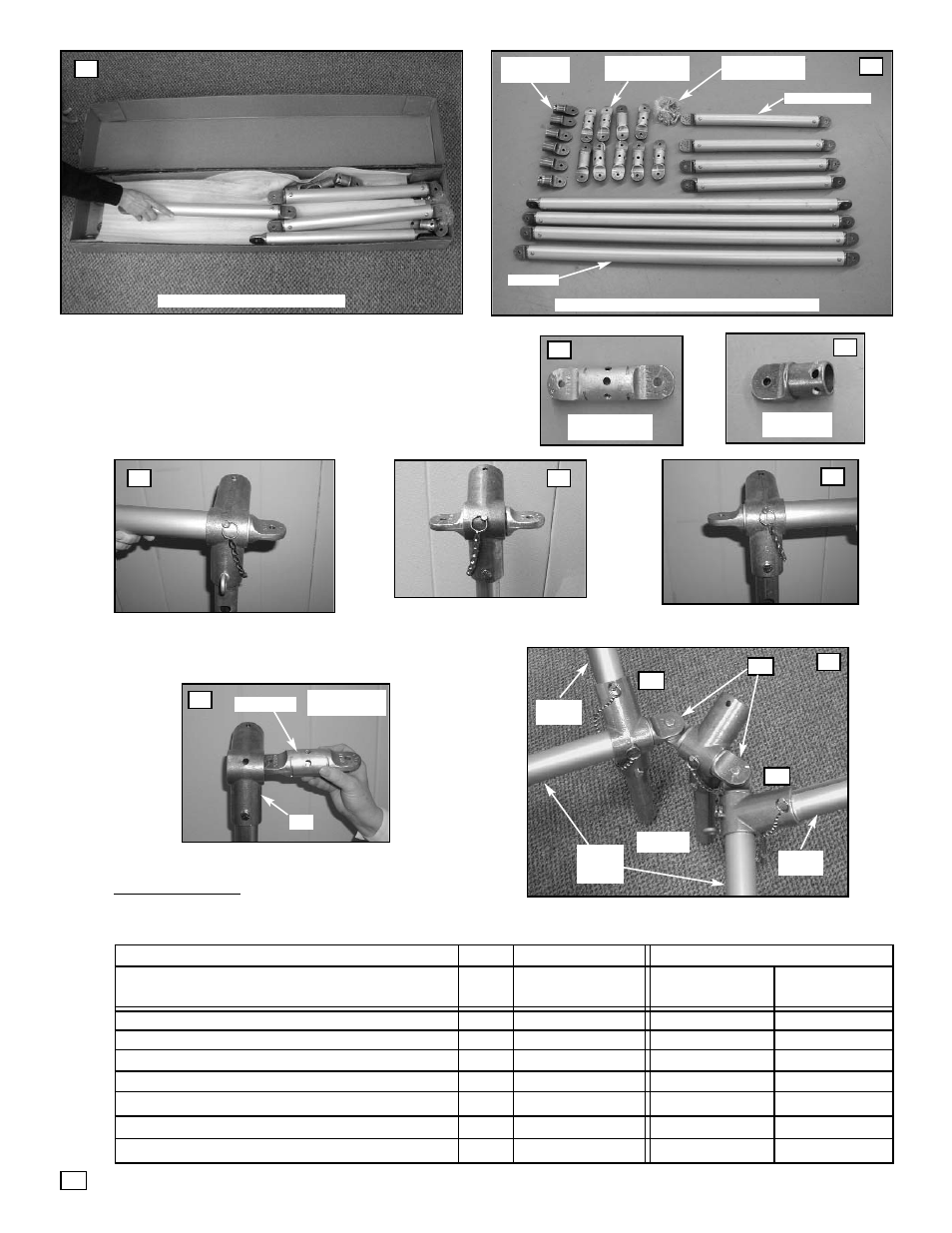

90 Degree Kit (#8085031) Boxed.

90 Degree Kit (#8085031) Parts Laid Out

Eave Bars

Eave/ Ridge Bars

PTE Castings

(Custom)

Double PTE

Welded Castings

3/8”-16 Bolt, Nut

& Washer Sets

PTE Casting

(Custom)

Double PTE

Welded Casting

The Round Corner Kits are simply adapter kits that allow standard
Fiesta Marquee frames to turn corners of 45 or 90 degrees.

The Kits include only the unique parts needed to make these cor-
ner turns
. The kit assumes the customer either owns or is purchas-
ing all the necessary standard Fiesta Marquee frame parts, including
the standard Rafters, Uprights, PTI and PTR Castings used in the cor-
ner turn itself, which are not included in the kits.

Installing the Double PTE

1

2

3

4

5

6

7

9

8

SECURE WITH

SMALL PIN

Custom PTE installed and pinned into a
PTI at the left side of the inside radius

Custom PTE installed and pinned into a
PTI at the right side of the inside radius

Inside Radius with eyes overlapped and bolted

together to form the angled turn of the eave frame

Double PTE Welded Casting,

installed and pinned into a PTI

Eaves of
Standard
Marquee

A

A

B

(3) PTI’s

Standard

Rafter

Standard

Rafter

2

PTI

DBL-PTE

TOOLS REQUIRED:
(Not Provided)

Ratchet Wrench w/ 9/16” Socket
