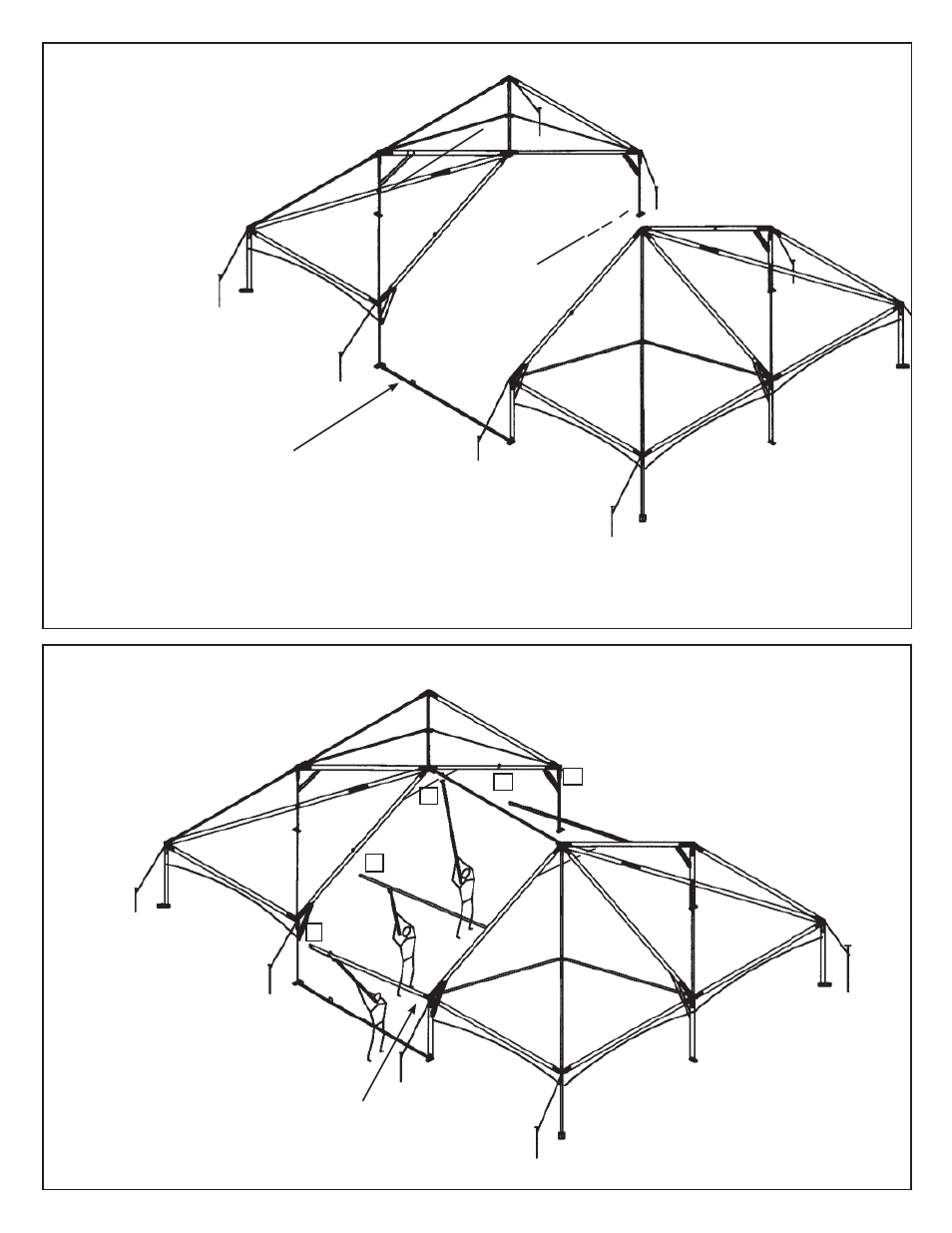

INSTALLING MID BAY PURLINS AND
EAVE/RIDGE BARS
CONNECTION
SEQUENCE MAY
CHANGE WITH
THE TERRAIN
NOTE: FABRIC ONLY INDICATED, SO
THAT FRAME WILL BE MORE VISIBLE.
FOR PURLINS & EAVE/RIDGE BARS,
INSTALL HOOK END FIRST, THEN THE
90 DEGREE OPPOSITE END.
UNITS WITH (1) MIDDLE BAY
NOTE: FABRIC ONLY INDICATED, SO
THAT FRAME WILL BE MORE VISIBLE.
ADJUST TO DESIRED SPACING
AND FIT END CONNECTORS OVER
GUIDE PEGS ON BASEPLATES.
THE EXTENDED RECTANGULAR UNIT ALWAYS INCLUDES (2) HIP END MODULES
FACING EACH OTHER WITH THE DESIRED NUMBER OF 10’, 15’ OR 20’ MIDDLE
BAYS SEPARATING THEM. NOTE: UNLIKE THE RIGID EAVE AND LOWER RAFTER
CONNECTIONS OF THE END MODULE, MIDDLE BAYS USE DROP-IN PURLINS AND
EAVE/RIDGE BARS.
NOTE: ONLY FIXED-BASE
UPRIGHTS ARE TO BE USED
IN END MODULES.
(2) END MODULES FACING
EACH OTHER.
1
2
3
5
4
15
